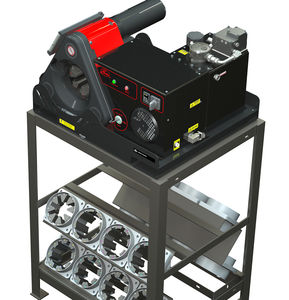

Hose crimping machine GC20™

automatichydraulicwith crimping quality control (CQM)

Overview
Gates® GC20™ with Gates® Cortex™ Intelligence is a hydraulic hose crimper (part number 70446) that integrates connected product data and a touchscreen operator interface. Designed for use with an external hydraulic pump (compatible with PC707), the unit loads crimp specifications from the eCrimp™ database and provides on-board training content to support consistent hose assembly fabrication.

Key Product Highlights

• Connected — Access continuously updated eCrimp™ content and new crimp specifications via Wi‑Fi.
• Efficiency — Intuitive touchscreen reduces setup and cycle time; saves favorite assemblies for quick recall.
• Safety — On-board videos and administrator/operator profiles support controlled training and access.
• Compliance — CE compliant and FCC certified; U.S. design patent pending.
• Support — Calibration and maintenance tracking with reminders; remote troubleshooting available.
• Compatibility — Requires hydraulic pump; compatible with existing PC707 pumps.

Features and Benefits

• Cloud-connected Cortex Intelligence — Automatic overnight data refresh when connected; manual pull available at any time.
• Offline capability — Full operation after initial Wi‑Fi setup without continuous internet connection.
• Onboard crimp information — Loads crimp specs automatically based on user selections; faster selection than legacy PC707 workflows.
• Stored favorites — Rename and reorder saved assemblies for rapid access.
• Automated calibration — Tablet-guided calibration reduces manual adjustments.
• Ergonomics — LED task light and improved die-cone handle reduce operator contact with grease and improve usability.
• Security and control — Optional password-protected administrator and operator profiles.
• Integrated selection tool — Quickly determine compatible hose, coupling and die combinations to reduce manual documentation.
• On-board training content — Animations, videos and PDFs covering operation, maintenance and safety.
• Built-in quality control — Designed for use with Gates-only hoses to support qualified assemblies.
• OTA firmware updates — Enables future enhancements via over-the-air updates.
• Durability — Electric controls designed to meet CE and FCC requirements for reliable operation.

Notes
Product images shown are illustrative only and may not be an exact representation of the product.

Specifications

• Part #: 70446 / GC20 WITH GATES CORTEX INTELLI
• Product #: 74800009
• Description: 70446 GC20 CORTEX CRIMPER NO DIES
• UPC: 770075802648
• Height: 4.5 in (114 mm)
• Width: 7.5 in (190 mm)
• Color: Red
