Plastic cutting tool Gates® 208

with holderwith fine cutreinforced

Overview

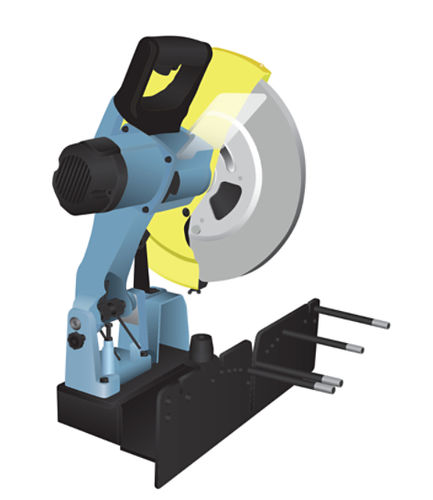

Gates® Power Cutter 208 (variant 78028) is a high-torque electric hose cutter designed for fast, straight cuts of braided and spiral hydraulic hose. It delivers repeatable, clean cuts for assembly shops, maintenance and fleet operations.

Key features

• 4.5 hp peak motor with high torque for faster cutting and reduced operator effort.
• Cutting capacity: two- and four-wire hose up to 2" I.D.; six-wire hose up to 1-1/4" I.D.; also handles small hoses down to 3/16" I.D.
• 12" scalloped reversible blade, sharpenable; dissipates heat to reduce friction and provide clean cuts.
• Sturdy blade guard and permanent mounting brackets for secure, safe operation.
• No-load speed 3,500 rpm; operates on 115 V / 50–60 Hz, 20 A.
• Optional abrasive blade recommended for continuous cutting of 1-1/4" I.D. and larger spiral-wire reinforced hose.

Technical specifications

• Model: Gates® Power Cutter 208 (78028)
• Motor peak power: 4.5 hp
• Power supply: 115 V, 50–60 Hz, 20 A
• No-load speed: 3,500 rpm
• Blade: 12" diameter × 1/8" thickness, scalloped, reversible and sharpenable
• Shaft/arbor hole diameter: 1"
• Cutting capacity: up to 2" I.D. (two/four-wire); up to 1-1/4" I.D. (six-wire)
• Overall dimensions (W×L×H): 22.5" × 18.25" × 23.5" (572 × 463 × 597 mm)
• Weight: 83.4 lb (≈37.9 kg)
• Includes permanent mounting brackets; UPC: 770075451716

Applications

• Hydraulic hose assembly and repair shops
• Field maintenance and fleet service depots
• OEM production lines requiring consistent, straight cuts

Packaging & accessories

• Customer pack: 1 unit
• Included: scalloped 12" blade, permanent mounting brackets
• Optional: abrasive blade for heavy continuous cutting on spiral-wire hose
