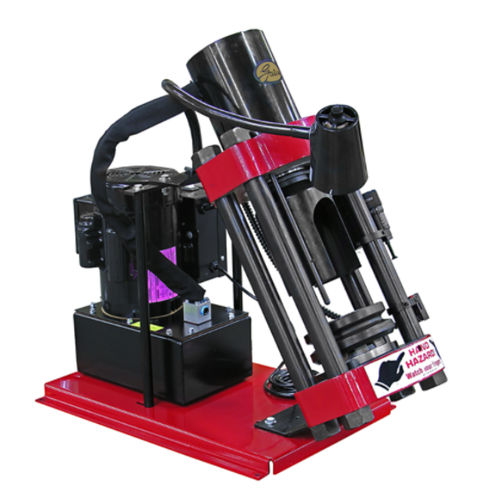

Hydraulic hose crimping machine SC32™

hydraulic

Product overview
The Gates SC32 crimper (part #77500) is a workshop-grade hydraulic hose crimper designed for routine shop and counter service. It crimps hose assemblies up to 1-1/4" I.D. in regular use and can perform occasional crimps on larger assemblies up to 2" with 6-spiral hose.

Key features

• Available wired for 220V (part 7480-0070) with a 2 HP electric pump (208-230VAC, 20A, single phase, 60 Hz) or 110V (part 7480-0071) with a 1 HP pump (115VAC, 15A, 60 Hz).
• Uses PC707 dies for crimps up to 1-1/4" I.D.
• Maximum crimping force: 80 tons; maximum rated working pressure: 10,000 psi.
• Dimensions: 16.5" W x 32" D x 29" H (419 mm x 737 mm).

Product details
Part #: 77500 (SC32 CRIMPER / PUMP 220V variant)
Product #: 74800070
UPC: 770075446033
Height: 29 in (737 mm)
Width: 16.5 in (419 mm)
Depth: 32 in
Max crimping force: 80 tons
Max rated working pressure: 10,000 psi

Construction
Color: Red
Power variants: 7480-0070 wired for 220V with 2 HP electric pump; 7480-0071 wired for 110V with 1 HP electric pump.

Packaging details
Customer pack: 1
Weight: 435.0 lbs

Technical specifications

• Model / series: SC32 Crimper
• Part number: 77500 (220V pump variant)
• Product number: 74800070
• UPC: 770075446033
• Power: 7480-0070 (208-230VAC, 20A, single phase, 60Hz, 2 HP); 7480-0071 (115VAC, 15A, 60Hz, 1 HP)
• Dimensions: 16.5" (W) x 32" (D) x 29" (H) / 419 mm (W) x 737 mm (H)
• Max crimping force: 80 tons
• Max rated working pressure: 10,000 psi
• Hose capacity: typical use up to 1-1/4" I.D.; occasional crimps up to 2" (6-spiral hose)
• Dies: compatible with PC707 dies up to 1-1/4"
• Color: Red
• Packaging: customer pack 1; gross weight 435.0 lbs
