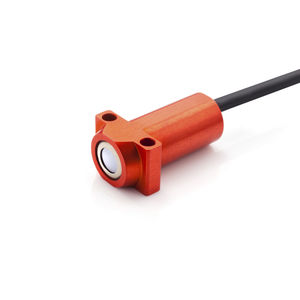

optris CT:
General purpose miniaturized IR thermometer with programmable electronic box. The IR sensing head is usable under ambient temperatures up to 180°C without cooling.
Measuring range: -40 - 900°C
Wavelength range: 8-14 µm
Spot size: up from 0,6 mm
Response time: 150 ms
Analog outputs: 0/4-20mA, 0-5V, 0-10V, thermocouple
Digital interface optional: USB, RS232, RS485, CAN, Profibus DP, Ethernet
Exchangeable sensing heads M12x1 , 28 mm length
|
|
|
The SR Series Infrared Thermometer is a stand-alone two-color sensor designed to provide a temperature signal directly to process control or monitoring devices. Ratiometric thermometry provides reliable temperature measurements in difficult applications with changing emissivities or unresolved targets. The SR spot pyrometers Do not require a separate indicator/processor, therefore saving on installation space and costs. These IR thermometers are available in focusing single lens reflex or fiber optic versions.
|
|
• Temperature range: -40 to 1200 °C (several models)
• Small sensing head fits where other sensors can’t
• 1% accuracy across the whole temperature range
• 0/4 – 20 mA, 0 – 5 V, J or K thermocouple output
• Ambient head temperatures up to 85°C without cooling
• Interchangeable sensing heads
• Adjustable emissivity, transmissivity, peak hold …
• 5-digit backlit LCD user interface
• Accessories for cooling and air purging
• Optional RS-232 or RS-485 digital communications
• Multidrop Network (max. 32 sensors with RS-485)
• Special models for glass and metals applications
|
|
Temperature control plays a leading role in most heating applications, both in heat treatment processes and in brazing with soldering material.
CEIA offers a wide range of infrared optical sensors equipped with low-intensity laser aiming which cover a reading range from 75°C, for applications using tin-based alloys, to 1200°C, for brazing carried out with silver, brass or copper.
The CEIA SH Infrared Sensors can be connected to the Power and Master Controller v2 Units to accurately stabilize the heating process at the required temperature values.
|
|

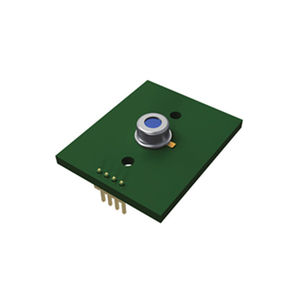

Integrated Thermopile Module TPMI
Our Thermopile sensors represent the latest development in thermopile technology. The sensors include thermopiles and full signal processing circuit in one tiny TO type housing.
The PerkinElmer TPMI™ thermopile sensor with integrated electronics and optics is the industry's first pre-calibrated, single-housed remote temperature module.
Click here to learn more about our TPMI™
Applications of the TPMI™: automotive climate control, home air conditioning, printer/copier temperature control, microwave ovens, and industrial applications.
|
|
|
|
|
|
The PyroCouple Series is a range of high quality, low cost, miniature sensors which measure the temperature of inaccessible or moving objects and materials.
They measure temperatures from -20°C to 500°C accurately and consistently, with an outstanding response time of 240 ms.
These sensors are available as either 2-wire units with a 4-20 mA output, or 4-wire units with voltage (-50 mV) or thermocouple outputs (type J,K or T). This choice of outputs makes the PyroCouple series compatible with almost any indicator, controller, recorder or data-logging instrument.
The PC21 has 2:1 optics making it suitable for most applications where the sensor can be mounted close to the target.
The PC151 is designed for small or distant targets and has an optical resolution of 10:1.
The PC301 is designed for very small or distant targets and has an optical resolution of 30:1.
These compact sensors are small enough to fit almost anywhere and their rugged stainless steel housings make them ideal for applications where cleanliness and hygiene are paramount.
The PyroCouple Series Sensors are easy to install and will operate in ambient temperatures up to 70°C. For more hostile environments or difficult mounting conditions a wide range of accessories is available.
|
|
| ... products without technical information |
| |
Infrared switches recognize without contact hot objects in its measuring beam, to trigger a switch process. They are e.g. used for recognizing, counting or positioning of hot objects. The IMPAC Infrared temperature switches cover a temperature range between -40°C and 1500°C.
For detailed information please see:
www.impacinfrared.com/EN/products/temperature-switches.html
|
|
The LumaSense Photoacoustic Field Gas-Monitor Innova - 1412 is a highly accurate, reliable and stable quantitative gas monitor. Its measurement principle is based on the photoacoustic infra-red detection method. This means that the 1412 can measure almost any gas that absorbs infra-red light.
Appropriate optical filters (up to 5 + water vapor) are installed in the 1412's filter carousel so that it can selectively measure the concentration of up to 5 component gases and water vapor in any air sample. Further, the instrument can compensate for interference between the measured gases, using the unique Cross-compensation feature. The 1412's detection limit is gas-dependent but typically in the 10-² ppm region.
|
|
Integrated Thermopile Module TPMI
Our Thermopile sensors represent the latest development in thermopile technology. The sensors include thermopiles and full signal processing circuit in one tiny TO type housing.
The PerkinElmer TPMI™ thermopile sensor with integrated electronics and optics is the industry's first pre-calibrated, single-housed remote temperature module.
Click here to learn more about our TPMI™
Applications of the TPMI™: automotive climate control, home air conditioning, printer/copier temperature control, microwave ovens, and industrial applications.
|
|
|
|
|
|
The PyroCouple Series is a range of high quality, low cost, miniature sensors which measure the temperature of inaccessible or moving objects and materials.
They measure temperatures from -20°C to 500°C accurately and consistently, with an outstanding response time of 240 ms.
These sensors are available as either 2-wire units with a 4-20 mA output, or 4-wire units with voltage (-50 mV) or thermocouple outputs (type J,K or T). This choice of outputs makes the PyroCouple series compatible with almost any indicator, controller, recorder or data-logging instrument.
The PC21 has 2:1 optics making it suitable for most applications where the sensor can be mounted close to the target.
The PC151 is designed for small or distant targets and has an optical resolution of 10:1.
The PC301 is designed for very small or distant targets and has an optical resolution of 30:1.
These compact sensors are small enough to fit almost anywhere and their rugged stainless steel housings make them ideal for applications where cleanliness and hygiene are paramount.
The PyroCouple Series Sensors are easy to install and will operate in ambient temperatures up to 70°C. For more hostile environments or difficult mounting conditions a wide range of accessories is available.
|
|
|
|
