The single frequency laser contains sophisticated electronics for stabilisation and to interpolate and count the interference fringes.
Each ML10 kit includes:
ML10 laser measurement head
Calibration certificate
Power cable
Data link cable
A separate interface is required to connect to your PC (see DX10 interface in Accessories section) plus appropriate software (Laser10 or QuickView are our standard packages)
Whilst the in-built power supply is auto-sensing, labelling requirements and options for long range (80 m) and quadrature signal output means you should check with your local Renishaw office before ordering.
|
|
|

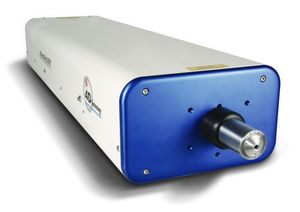

The LDM600 laser detector module is a fully equipped readout module for interferometric measurements. The visible wavelength of 600 nm enables easy adjustment of the laser
|
|
Two-frequency laser way measuring system ZLM 900-3D
Most efficient interferometers of its kind world-wide
heterodynes 3-Achs-Interferometer for position measurement, nodding and yaw angle measurement, triangulation
highly flexible calibration employment for all CNC Kalibrierparameter
max. Verfahrgeschwindigkeit 4m/s
Dissolution of standard 1nm (position), 0,01’ ’ (Angles)
Accuracy <50nm/m by highly exact temperature sensors
for notebook, PCI and PXI bus compatibly networkable
dynamic measurements to 4m/s
fast setting-up, - also in the area
Real time measurements of all 3 axles
expandable to 6 axles
light reflectors
to 40 MHz externally triggerable
|
|
