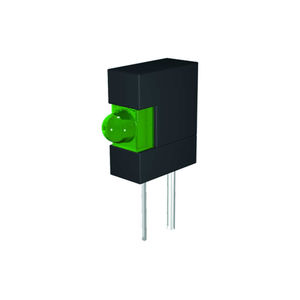

LED-Arrays with red, green or yellow LEDs
Features:
- pre-mounted in single or double LED housings
- array blocks can be separated by hand
- exact orientation and correct polarity are guaranteed with the location pin
- high luminosity with low power consumption
LED-Arrays with blue or bi-color
Features:
- pre-mounted in single or double LED housings
- array blocks can be separated by hand
- exact orientation and correct polarity are guaranteed with the location pin
- convenient and economical protect pins 80-pieces tubes
- high luminosity with low power consumption
- reflow version available |
|
APPLICATION - CLIPMOUNT permits the panel display of a PCB mounted LED without its physical attachment to the front panel. This mount enables the use of interconnects between display panels and circuit boards.
VERSATILITY - CLIPMOUNT provides a method of displaying PCB or panel mounted LEDs on a display panel. These mounts are available in either black or clear allowing an LED viewing angle of up to 180 degrees. Mounts are available for both 3mm and 5mm LEDs.
BRIGHTNESS - CLIPMOUNT provides direct viewing of the LED. Mono and multicolor LEDs as well as infrared and photo-detection devices can be mounted in this manner. This design also permits use of either diffused or nondiffused LEDs.
INSTALLATION - CLIPMOUNT are easily installed for PCB mounted LEDs. Simply slide mount thru a 9/32" panel hole and press retaining ring into place. The LED is now able to slide in and out of mount without its physical attachment to front panel. For interconnect applications, hold mount tightly to panel with a nut driver and press connector with LED on from rear.
SPECIFICATIONS
MATERIAL: Mount - Polycarbonate (black - clear) Ring - Polypropylene (black) (U.L. Listed Materials) |
|
APPLICATION - P-C-LITEs are used as circuit board mounting sockets for status, logic and fault detection lights. Also used for back panel lighting, front panel function lights and mounting of photodetection type devices.
VERSATILITY - P-C-LITEs are relampable, no direct soldering to LED. PCH and SMD series mount horizontally, PCV series mounts vertically. The PCV can be installed on one side of the PCB while the LEDs are inserted from the reverse side of the board.
DESIGN - P-C-LITEs are manufactured from UL listed thermoplastics. Unique contact design permits automatic adjustment to the various sizes and shapes of LED leads. Also accommodate IR emitters, phototransistors and incandescent bi-pin lamps.
INSTALLATION - P-C-LITEs are wave soldered (PCH/PCV) or surface mounted (SMD) to PCB along with other components. Sockets are provided with polarity identification. Molded standoffs permit easy board cleaning. Lock-type security for component leads in high vibration and shock environments.
SPECIFICATIONS
MATERIAL: Housing - Thermoplastic, U.L. 94 V0 (black). Contacts - Phosphor bronze, 60/40 tin plated.
|
|
| Toshiba is one of the leading suppliers in the visible LED market. Its LED product lines provide high light emitting intensity in various colors and packages. Toshiba is among the first to introduce InGaAlP technology, which provides significant improvement in luminous intensity. Toshiba also introduced new visible LEDs based on the combination of ultraviolet (UV) LED and phosphor technology. This UV based LED allows unique colors to be generated and minimizes color shifts. And with its new lines of high brightness and high flux white LEDs, the Toshiba LEDs offerings can satisfy today's as well as the future's lighting requirements. |
|
Philips Lumileds' SnapLED LED assemblies for exterior applications are compact, and can be shaped to any contour. By enabling a more streamlined structural approach, they give you the freedom and scope to define new forms that are more individualized, and expressive. The thin design of SnapLED eliminates the need for deep cavities and reduces vehicle body costs. Innovative fastening techniques offer limitless styling flexibility allowing lighting designers to create stylish new looks.
SnapLED Benefits:
Fewer LEDs Required
Lower System Cost
3-Dimensional Array Design |
|
This revolutionary package design allows the lighting designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions. This is possible through the efficient optical package design and high-current capabilities.
The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired lit appearance.
This product family employs the world's brightest red-orange and amber LED materials, which allow designers to match the color of popular lighting applications, such as automotive tail, stop and turn signal lamps, and electronic signs.
RoHS Compliant
SuperFlux products are now available in RoHS compliant versions. The availability of these products enables manufacturers to comply with new environmental standards. |
|
LUXEON® III LEDs, the industry's most widely used high-power LEDs, deliver leading performance and value that enable lighting designers and engineers to develop applications at significantly lower costs, speeding the migration from conventional lamps to solid-state technology.
With its rugged package design, superior thermal management and zero-stress encapsulation system, LUXEON® III is a clear technical and performance leader. |
|
| Toshiba is one of the leading suppliers in the visible LED market. Its LED product lines provide high light emitting intensity in various colors and packages. Toshiba is among the first to introduce InGaAlP technology, which provides significant improvement in luminous intensity. Toshiba also introduced new visible LEDs based on the combination of ultraviolet (UV) LED and phosphor technology. This UV based LED allows unique colors to be generated and minimizes color shifts. And with its new lines of high brightness and high flux white LEDs, the Toshiba LEDs offerings can satisfy today's as well as the future's lighting requirements. |
|
LUXEON Rebel is the smallest surface mountable power LED available today. With the industry's best lumens per package, highest light density (lumens per mm2), and the highest packing density, LUXEON Rebel is ideal for both space-constrained and conventional solid-state lighting applications
LUXEON Rebel offers:
150°C Junction Temperature
Industry leading lumen performance,
> 80 lumens in cool white at 350mA
350mA - 1000mA drive current
High efficacy, flux density and
lumens per package
Industry best moisture sensitivity level - JEDEC Level 1 unlimited floor life no need for reconditioning
Lead-free reflow solder JEDEC 020c compatible
RoHS Compliant
Autoclave compliant - JESD22 A-102
Industry best lumen maintenance - 50,000 hours life at 700 mA with 70% lumen maintenance
Electrically isolated thermal pad
|
|
The PHLOX® red backlights are the most competitive and uniform backlight of the market all in an ultra compact and IP-65 body.
Backlight 100x100:
-Luminance Minimum = 1.000 cd/m2
-Uniformity Minimum = 95 % (+/- 10%)
-Input current = 320 mA
Application: Lighting for industrial vision |
|
The PHLOX® red backlights are the most competitive and uniform backlight of the market all in an ultra compact and IP-65 body.
Backlight 50x50:
-Luminance Minimum = 2.000 cd/m2
-Uniformity Minimum = 95 % (+/- 10%)
-Input current = 160 mA
Application: Lighting for industrial vision |
|
The PHLOX High Bright White Led Backlights offer the best LUMINANCE and UNIFOMITY of the market, all in an ultra compact and IP-65 body.
Backlight 200x200:
-Luminance Minimum = 500 cd/m2
-Uniformity Minimum = 95 % (+/- 10%)
-Input current = 480 mA
Application: Lighting for industrial vision |
|
LUXEON K2 and LUXEON K2 with TFFC LEDs are the highest performance, most robust, and rugged LEDs available. They deliver industry leading light output, simpler and more efficient thermal management, and the ability to be driven at higher currents for longer periods of time than any other LED. Binned and tested at 1A, and with minimum flux bins of 160, 180 and 200 lumens, LUXEON K2 with TFFC LEDs are enabling never before possible lighting solutions.
LUXEON K2 and LUXEON K2 with TFFC Offer:
Well over 200 lm in cool-white
Highest Drive Currents - up to 1500 mA
Highest Operating Temperature (185°C)
Lowest Thermal Resistance 5.5° C/W
Automotive Qualified
Industry leading lumen maintenance and reliability
RoHS Compliant and Lead-Free
Surface Mount for Optimal Manufacturability
Autoclave Compliant
Simplified Optical Engineering
Highest Lumens per mm2
Emitter and Star configurations available
|
|
| Toshiba is one of the leading suppliers in the visible LED market. Its LED product lines provide high light emitting intensity in various colors and packages. Toshiba is among the first to introduce InGaAlP technology, which provides significant improvement in luminous intensity. Toshiba also introduced new visible LEDs based on the combination of ultraviolet (UV) LED and phosphor technology. This UV based LED allows unique colors to be generated and minimizes color shifts. And with its new lines of high brightness and high flux white LEDs, the Toshiba LEDs offerings can satisfy today's as well as the future's lighting requirements. |
|
Features
• Runs on 12-Volt Systems like Solar Cell Charged Batteries,
12 Volt Battery or 120 Volt-to-12 Volt Power Pack Converter
• Solid State, High Shock/Vibration Resistant
• Run on Low Power Consumption, High Intensity
• Produce Little to No Heat
• Long Life 100,000+ hrs (10+ Years)
• Major Reduction in Power Costs
• No RF Interference
• Maintenance Free
• Mercury Free
• Glass Free
• Three-Year Warranty
Applications
• Focused Reading and Task Lighting
• Uninterrupted Emergency Lighting
• Concealed Accent Lighting
• Edge Lighting
• Channel Letter Lighting
• Under Counters and Cabinets |
|
FEATURES
- Compatible with IEEE 802.3u Fast Ethernet data communications standard
- Logic interface compatible with both LVDS (Low-Voltage Differential Signaling) and CML (Current-Mode Logic)
- Integrated CMOS driver IC
- Resonant Cavity LED at red 650 nm with small emission aperture suitable for POF
- Resonant Cavity LED reliability tested to over 400,000 hours lifetime
- High sensitivity receiver IC and pin-diode for one-step light to digital conversion
- Integrated optics to efficiently focus and direct light
- Low power consumption
- Optimized for high-speed Fast Ethernet of 125 Mbps |
|
3mm Chrome Panel Mount
5mm Chrome Panel Mount
3mm Chrome Panel Mount Recessed
5mm Chrome Panel Mount Recessed
Press-Fit 3mm Panel Mount
Press-Fit 5mm Panel Mount
|
|
Features
• Fixed LED in metal-threaded shaft base with removable transparent lens cap
• Replaces the ET-5 and ET-6 incandescent high voltage panel indicators found in control rooms of power plants, sub-stations, and utilities
• Integrated series resistor prevents short circuiting, special fuses are unnecessary
• Can be front mounted or rear mounted to the panel; both nuts & washers can be removed or adjusted — accommodates panels up to 2.2 inches in thickness
• Faster on/off time than incandescent lamps
• LED life of 100,000 hours
• Shock and vibration resistant
• Much lower power consumption, lower energy costs
• No cold filament inrush current
• Only one 21/32 inch hole (0.66", 16.8mm) is required for panel mounting
• 12 inch leads for screw or soldered connections
Options (For large quantities and qualified applications)
• Optional AC voltages: 67Vac, 115Vac, 230Vac
• Optional clear lens cap over color LED |
|
Features
- 1.8 mm sized LEDs save space
- Housing material meets UL94V-0
- Facilitates PCB mounting
- Fast turn on/off time I.C. compatible
- Colors can be mixed in a single housing
- Solid-State, high shock / vibration resistant
- Single color or Bicolor configurations
- Long life / 100,000+ hours (10 years)
- One piece housing
Options
- Sunlight Visible Ultrabrights
- Low Current (2mA) LEDs
- Special colors: Orange, Pure Green, Blue
- Infrareds 840nm, 880nm, 940nm
- Clear illuminator LEDs for backlighting |
|
T-1 (3mm), T-13/4 (5mm) UV LEDs
- Highly Efficient InGaN Materials Produce the Industry's Greatest Radiant Flux at 12mW
- Ideally Suited to Currency Validation, Medical, Test and Measurement and
Security Applications
- Life: 1,000 Hours
- LEDs are Not Safe for Direct Viewing AEL Class 3 per IEC 825-1,
EN-60825-1, EN60825-2 (Do not look directly at the light source) |
|
|
|
