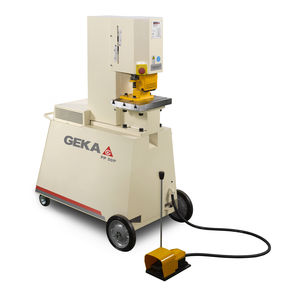

Hydraulic Punching Machines
55 to 220 tons
Portable punching machines:
G model: for general punching of sheet metal and steel section
P model: with table with T grooves, recommended for use eith "die sets" and special tooling.
|
|
Puma 55
The GEKA, hydraulic punching machines have been designed by experienced technicians, assisted by powerful CAD CAM equipment and adapted to the ongoing suggestions of over 60,000 users of GEKA shears and punching machines, worlwide.
FEATURES
Technically dimensioned bed
Cylinder with additional guide.
Strong and accurate shaft system to avoid distortions.
Gradual centring of punch.
Quick punch change.
Safety protection.
Ample space for mounting special equipment.
Optimum operation speed.
Large number of optional, standard and special accessories to perform a wide range of jobs.
Range of punching machines from 55 Tn to 220 Tn with punching throats
|
|
Starting out from our standard machines, we can offer specialised, comprehensive solutions for our customers at the best possible price :
- adapting the machine
- tooling design and manufacture
- commissioning
- after-sales service
|
|
Punching machine HS 100 :
Easy tool changing by quick tool changing device.
Hydropneumatic feeding with pressure transmission.
Torsion free welded construction.
Options :
Steel stand
Tool rotating support with pneumatic
cripping device
Adapter to roller conveyers left or right hand side
|
|
Cutting and drilling DIN rails
Coup'DIN GH3-M
Shearing/punching machine to be fixed to a workbench with a 1 metre lever arm held in top position.
Each machine is supplied with 1 blade and 2 standard 6.5 X 13 mm punches, one 1m20 straightedge, stop and stand.
The dies are chosen according to the rails to be cut (see table below).
Tooling can be quickly switched over, with no need for a spanner.
Technical characteristics
- Head weight : 15 KG
- Max. profile dimension : 37 X 18 mm
- Dies to be chosen according to the rail to be cut :
for symmetrical 35 X 15 X 1.5 rails,
choose dies reference M33.
- Kit for transforming into GH3-E ou GH3-P available.
|
|
| ... products without technical information |
| |
Cutting and drilling DIN rails
Coup'DIN GH3-M
Shearing/punching machine to be fixed to a workbench with a 1 metre lever arm held in top position.
Each machine is supplied with 1 blade and 2 standard 6.5 X 13 mm punches, one 1m20 straightedge, stop and stand.
The dies are chosen according to the rails to be cut (see table below).
Tooling can be quickly switched over, with no need for a spanner.
Technical characteristics
- Head weight : 15 KG
- Max. profile dimension : 37 X 18 mm
- Dies to be chosen according to the rail to be cut :
for symmetrical 35 X 15 X 1.5 rails,
choose dies reference M33.
- Kit for transforming into GH3-E ou GH3-P available.
|
|

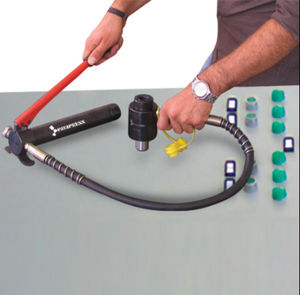

Portable punching machine and hole punches
3 ranges of punch-dies for the most varied applications :
- Standard range
- "Washer cut" range
- Stainless steel range
Hydraulic pumps :
- Standard
- With multi-directional head
- With jack and hose, with manual, foot-operated or electro-hydraulic pump.
|
|
Steelex offers Portable Hydraulic Punching Machines manufactured in Italy to give rapid production of holes in I beams, channels, angles and plates.
With Single and Double Effect Models for punching in both the web and flanges of I beam these units give great flexibility and cost effective hole production. The smaller units are hand held and the larger units are suspended and balanced and both types can be used to produce round, oblong, square and special shaped holes as required.
The range of Portable Punching Units has the capacity to punch up to a 50mm hole and can also punch through steel up to 36mm thick.
All units are balanced and supplied with a suspension spring arrangement. Three differerent power packs available, 3HP, 10HP and 15HP dependant on the punching
unit purchased.
|
|
Steelex offers Portable Hydraulic Punching Machines manufactured in Italy to give rapid production of holes in I beams, channels, angles and plates.
With Single and Double Effect Models for punching in both the web and flanges of I beam these units give great flexibility and cost effective hole production. The smaller units are hand held and the larger units are suspended and balanced and both types can be used to produce round, oblong, square and special shaped holes as required.
The range of Portable Punching Units has the capacity to punch up to a 50mm hole and can also punch through steel up to 36mm thick.
Single Effect Units:
Small light weight units for punching holes up to 24mm diameter
|
|
| ... products without technical information |
| |
|
|
|
|
The SML-F has been designed for the larger panel-builder producing floor-standing control panels which require quantities of round and square holes in proprietary, pre-painted enclosures. By using a foot pump, there is less operator fatigue and both hands are free to position the punch.
It uses standard SML 3-point industrial duty punches made from tool steel, hardened and ground. The design of the 3-point punch guarantees that the blank is easily removable from the die. Square and rectangular punches are machined from single blocks of high grade tool steel to give maximum strength and dimensional accuracy.
The foot pump has a smooth and powerful action. Pressure release is by means of a toe operated side lever to avoid bending down.
This is a 2-speed pump for rapid operation with automatic pressure limiting for safety.
An 11mm pilot hole is required for punches up to 26mm diameter. For hole sizes above this, a 20.5mm pilot hole is needed and this can be made using a standard 20.5mm punch and die.
The method of operation is exactly the same as for the SML-H.
A plastic carrying case is available as an optional extra.
|
|
|
Foot operated hydraulic punching system for sheet steel for round holes up to 142.8mm diameter and square holes up to 142.8mm square
|
|
|
ZOPF has developed a series of highly efficient manually operated and electrically driven machines for the notching of gas pipes, steam pipes, stainless steel pipes and non-ferrous metal pipes. Whenever they need to be welded together at an angle of 90°, ZOPF pipe notching machines ensure that the correct slot is cut very quickly and accurately. They are also eminently suitable for making double corner joints.
|
|
|
|
