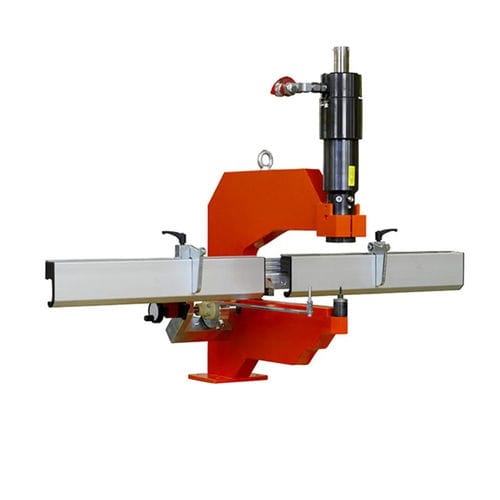

Manual punching press Quick Press 300 series

hydraulicdoorenclosure

• Punching to the outermost edge is possible • Punching marks or drill holes are not required • Useful processing depth 300 mm /11.81” Manually operated hydraulic bow punch for quick and precise punching without pilot holes. For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm / 1.57“ Length and depth stop with two movable tilt stops Punching of hole rows through precisely adjustable positioning stop Technical data • Material:sheet steel, stainless steel, aluminium • Can be used for:round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal • Cylinder stroke:42 mm • Processing depth:300 mm • Length stop:Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder • Depth stop:Adjustable from 5 to 300 mm; 0.2" to 11.81" • Repositioning stop:Adjustable backlash-free through measuring scale from 30 to 100 mm; 1.18" to 3.94" • Stamp holder diameter:13 mm • Weight:64 kg Notice • Further Quick-Press 300 versions are available.
