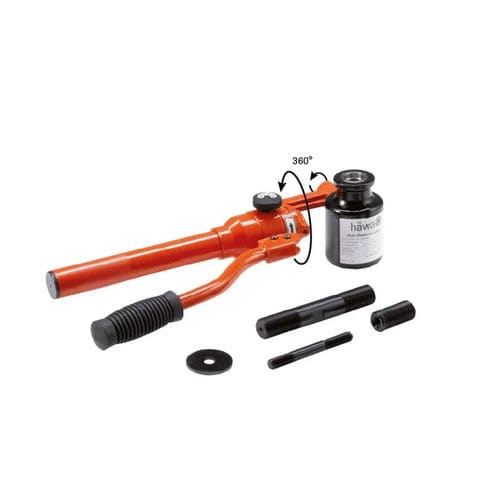

Hydraulic punching tool Powerman Vario

manual

• One-man operation • Max. punching: ø 80 mm Manually operated hydraulic pump Pump threaded for 19 mm (3/4”) draw studs 360° rotatable and pivoting cylinder, can be operated also under load For punching sheet steel, stainless steel and aluminum Available draw studs: for punches threaded for 9.5 mm (3/8”), 11.1mm and 19 mm (3/4”) studs. Technical data • Article number:2626-7200-01-00 • Material:sheet steel, stainless steel, aluminium • Variant:without round punches in sheet metal case • Can be used for:round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal • ax. punching forcet:50 kN • Cylinder stroke:20 mm • Screw holder:19 mm (3/4”) draw studs • Punch pump dimension:ø 58x360 mm • Oil filling:0.17 l • Weight:2.5 kg Notice • If punching tools (round, rectangular, square, shaped punches) should be used for applications exceeding the technical specifications (" Suitable for" and "Max. sheet metal thickness" → see "Technical Data"), an individual clarification is required. Please contact your local sales department.
