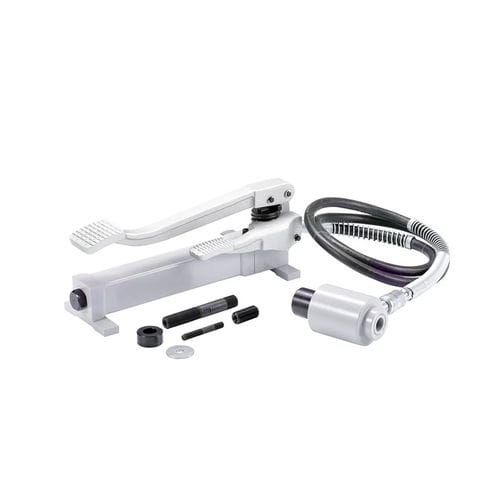

Hydraulic punching tool Powerman Step

• Designed for confined spaces • Max. punching: ø 120 mm; 4.72" Foot operated hydraulic pump Pump threaded for 19 mm (3/4”) draw studs Screw coupling, also rotatable under load 1.800 mm (70.87") long hydraulic hose For punching sheet steel, stainless steel and aluminum Available draw studs: for punches threaded for 9.5 mm (3/8”), 11.1 mm and 19 mm (3/4”) threads. Technical data • Article number:2685-7200-01-01 • Material:sheet steel, stainless steel, aluminium • Can be used for:round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal • Cylinder stroke:28 mm • Screw holder:19 mm (3/4”) draw studs • Punch pump dimension:ø 72x139 mm • Oil filling:0.25 l • Weight:10 kg Notice • If punching tools (round, rectangular, square, shaped punches) should be used for applications exceeding the technical specifications (" Suitable for" and "Max. sheet metal thickness" → see "Technical Data"), an individual clarification is required. Please contact your local sales department.
