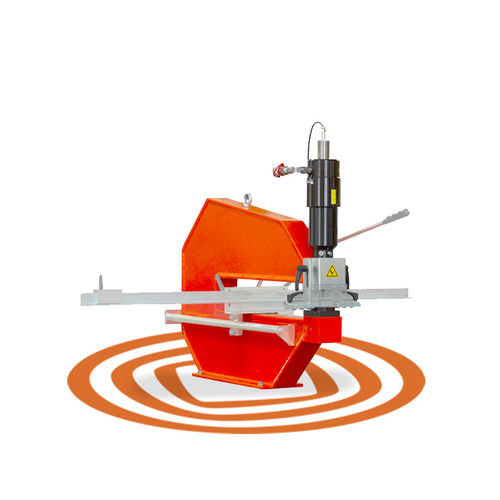

Manual punching press Maxi-Press 500

hydraulicdoorenclosure

• Useful processing depth 500 mm / 19.69” • “Repositioning is possible Hydraulically operated bow punch for quick and precise punching without pilot holes Can be connected to the häwa electric or air hydraulic pump For punching flat and up to 30 mm flanged sheet metals Center point indicator via laser diode can be retrofitted With transparent finger guard with wiper function. Scraps up to ø 63.5 mm drop down to the bottom Prepared for mounting of a length and depth stop (see accessories) Technical data • Material:sheet steel, stainless steel, aluminium • Can be used for:round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal • Cylinder stroke:42 mm • Processing depth:500 mm • Stamp holder diameter:20 mm • Max. operating pressure:450 bar • Weight:93 kg Notice • Maxi-Press 500 with mounted center point indicator: 2643-7106-00-00.
