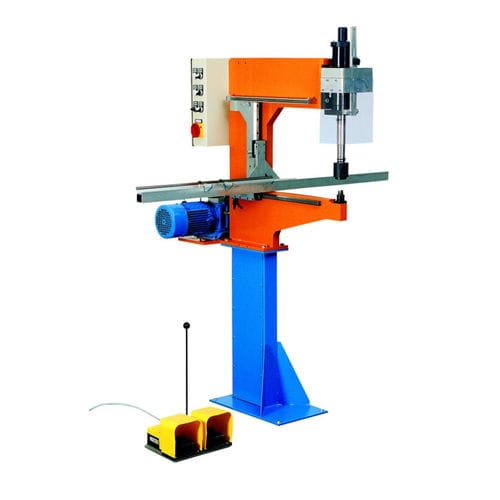

Foot-operated punching press Quick-Press 400

hydraulicdoorenclosure

• Punching marks or drill holes are not required • Punching to the outermost edge is possible • Useful processing depth 400 mm / 11.75” • User-friendly Bow punch with mounted hydraulic power unit for quick and precise drilling without pilot holes For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates, flat or up to 15 mm flanged and 400 mm deep sheet metals. Depending on the enclosure design, it is possible to punch the base of 300 mm deep enclosures Double operating hydraulic cylinder with automatic or inching mode controlled via foot switch, with adjustable piston return stroke (for serial production) Punch center point indicator via laser diode Smooth-running ball bearing depth stop continuously adjustable from 25-400 mm Length stop with two movable tilt stops, with measuring scale on right side Stop adjustable to height through hole grid Technical data • Material:sheet steel, stainless steel, aluminium • Can be used for:round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal • Cylinder stroke:100 mm • Operating voltage:400 V / 50 Hz • Processing depth:400 mm • Mains connection:5-pin 16 A Cekon plug • Length stop:Adjustable up to 700 mm; 27.56" on both sides of the cylinder • Depth stop:Adjustable from 25 to 400 mm; 0.98" to 15.75 • Stamp holder diameter:20 mm • Max. operating pressure:210 bar • Weight:240 kg • Performance:0.55 kW Notice • Repositioning is not recommended • Installation and instruction by qualified häwa personnel
