Ultra miniature M3 quick disconnect with shut off mechanism in the internal end. No shut off mechanism is provided in the external end. Assembly locks together and releases when sleeve is pulled back.
|
|
We have a very large range of barbed tees and "Y" fittings along with check valves and luer fittings,ask for our extensive catalogue
|
|
Air Precision has also developped a range of standard electrical slip rings : EEG, T13 and T20.
They use the same "gold" technology as custom-built slip rings and therefore have excellent electrical qualities and are easily adaptable thanks to interchangeable mechanical interfaces.
Derivates of those standard slip rings are also available.
CONTACT US :
by email : sales@airprecision.com
by phone: +33 1 46 01 21 16
DO NOT HESITATE TO VISIT OUR WEBSITE IN ENGLISH :
www.airprecision-slipring.com
|
|
|
The LT Series rotary unions from DSTI feature all-aluminum construction for light weight & excellent durability. These units are available with up to (12) independent passages, with optional electrical slip rings with up to (56) circuits. The LT Series products are a readily available solution for todays complex automation requirements.
|
|
Rotary Systems' three passage rotary union with integrated 6 circuit slip ring. The union is constructed from plated carbon steel. The union utilizes a hardened and ground shaft, Teflon seals and radial ball bearings.
The slip ring is a 6 circuit compact commercial capsule rated at 2 amps/210VDC or 240VAC. Gold on Gold contacts with speeds up to 250 RPM. Several circuit configurations for the slip ring and number of passages on the rotary union are available upon request.
Please contact our Technical Sales department at 1-800-959-0146 with your operating parameters if you need a rotary union with an integrated slip ring. Slip rings are available in various configurations and can be modified to meet your specifications.
|
|
| ... products without technical information |
| |
|
|
|
|
Multiline - (4 / 6 / 8 Line) - QDC
Description: The snap-type multiple line quick disconnect features a releasing sleeve that permits one-hand connecting or disconnecting of several fluid lines simultaneously. Simply push the sleeve in to disconnect the fluid lines and push the internal and external ends together to connect the lines. The design incorporates a keyed location pin to insure correct orientation of the fluid lines during connection. The internal end is designed with an automatic shut-off valve.
Material: Internal: brass or 303 stainless steel components; acetal releasing sleeve; stainless steel mounting plate, springs, ball bearings, set screw, crescent “C” rings and steel “E” ring. External: 303 stainless steel components; stainless steel backing plate
Seals: Internal: three Buna-N O-rings, OR-QDC-B (3 O-rings), for each line. Optional materials: EPDM, Viton®, Silicone, Chemraz® and Fluorosilicone.
Note: Multiple line quick disconnect can also be ordered in 316 stainless steel and double shut-off configurations. Contact factory for ordering information.
|
|
|
|
|
|
Description: Beswick compression fittings (for 1/16", 1/8" and NOW 1/4" OD Tubing) give you the ability to operate at high pressures and temperatures while maintaining a small envelope. How? Beswick compression fittings are provided with miniature M3, 10-32, M5 and 1/4-28 threads. You will save valuable space by using these compression fittings instead of bulky 1/8" NPT threaded compression fittings. Additionally, our compression fittings include Beswick's captured O-ring face seal for a leak-tight seal at the threaded end of the fitting. We offer straight, elbow and tee configurations along with the option of special O-ring and body materials to combat corrosive fluids and high temperatures.
Beswick Engineering designs and manufactures high-performance miniature fluid power components, such as: fittings, valves, quick disconnects, pressure regulators/gauges, cylinders, filters, orifices, shock absorbers, pressure electric switches, tubing, etc. Applications include: medical and dental equipment, instruments, laboratory equipment, semiconductor manufacturing equipment, aerospace equipment, packaging machinery, industrial robots and many more.
|
|
180 and 280 Miniature Pneumatic Couplings
The 180 Miniature Ball Lock Quick-Connect One-Way Coupling is designed for use with compressed air, gases and liquids. The manually operated devise features a ball lock and mates with all Series 180 plugs. Series 180 features a tire valve and has the option of viton seals. Series 280 features a 1-HK valve, which provides higher flow capacity and also has the option of viton seals.
Features:
- Ball Lock
- Manual operation
- Series 180 and 280 sockets mate with all series 180 plugs
- Series 180 socket has a tire valve. Series 280 socket has 1-HK valve, which provides higher flow capacity
- Viton seals available as an option. add - 143 suffix to socket par number when ordering.
Standard Materials:
°Socket
- Brass Body and sleeve
- Valve
* 180: Nickel plated brass tire valve
* 280: Brass series 1-HK valve
- Buna-N (Nitrile) seals
- Stainless steel springs
- Stainless steel locking balls
°Plug
- Brass Body and sleeve
- Brass
|
|
|
We offer a range of specially designed 4mm fittings for miniature pneumatics applications. The range is both compact and robust. Ends with M3 and M5 threads are designed to only need finger tightening.
|
|
Air Precision has also developped a range of standard electrical slip rings : EEG, T13 and T20.
They use the same "gold" technology as custom-built slip rings and therefore have excellent electrical qualities and are easily adaptable thanks to interchangeable mechanical interfaces.
Derivates of those standard slip rings are also available.
CONTACT US :
by email : sales@airprecision.com
by phone: +33 1 46 01 21 16
DO NOT HESITATE TO VISIT OUR WEBSITE IN ENGLISH :
www.airprecision-slipring.com
|
|
|
The LT Series rotary unions from DSTI feature all-aluminum construction for light weight & excellent durability. These units are available with up to (12) independent passages, with optional electrical slip rings with up to (56) circuits. The LT Series products are a readily available solution for todays complex automation requirements.
|
|
Rotary Systems' three passage rotary union with integrated 6 circuit slip ring. The union is constructed from plated carbon steel. The union utilizes a hardened and ground shaft, Teflon seals and radial ball bearings.
The slip ring is a 6 circuit compact commercial capsule rated at 2 amps/210VDC or 240VAC. Gold on Gold contacts with speeds up to 250 RPM. Several circuit configurations for the slip ring and number of passages on the rotary union are available upon request.
Please contact our Technical Sales department at 1-800-959-0146 with your operating parameters if you need a rotary union with an integrated slip ring. Slip rings are available in various configurations and can be modified to meet your specifications.
|
|
| ... products without technical information |
| |
These torsionally stiff couplings serve for the connection of two shaft ends compensating for angular and parallel misanlignment as well as axial backlash. They are used for the backlash-free and precise angular drive of:
-potentiometers / angle encoders
-resolvers / transducers
-low powered drives
The mounting of the coupling onto the shaft ends is achieved by two set screws each with one cup point per hub. In the case of a smaller than indicated size of bore, an accurate transmission or peak-torque is no longer guaranteed. Larger borings can be supplied on request.
|
|

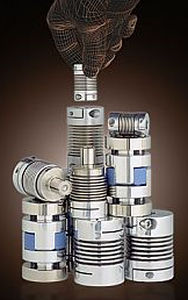

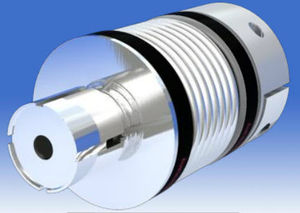

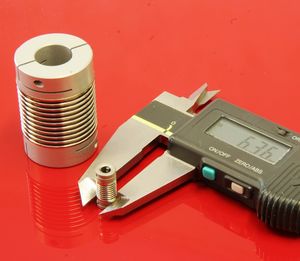

Miniature Metal Bellows Couplings from R+W
Properties of MK Miniature Couplings:
precise transmission of angular motion and torque
zero backlash
torsionally rigid
infinite life
wear and maintenance free
compensates for axial, angular and lateral misalignment
easy assembly
|
|
| ... products without technical information |
| |

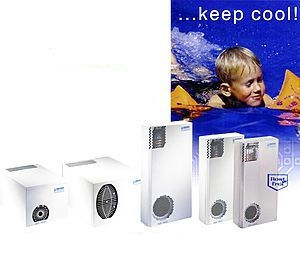

Mini size Maxi cooling for small enclosures
+ filterless maintenance-free
+ cooling performance 200...500 W (L35/L35)
+ for external, internal & top mounting
+ flat design sheet steel housings
+ customer specific powder coat painting
+ stainless steel models
+ Micro-processor controls
+ R134a refrigerant
|
|
Model
BL4201G
Professional Work light
Low Radiated Heat
TC-TEL lamp, 42W
Luminance: 3100lm
High Impact Resistant Casing
IP54
Packing:1pc/box, 6pcs/64x42.5x34.5cm, 1800pcs/1x20'
Available voltages: 110V~240V
|
|
Model
7201(S)
Professional Work light
Low Radiated Heat
Compact Fluorescent Tube, TC-F 2x36W
Luminance: 5600lm
High Impact Resistant Casing
IP54
Product Size: 33x33x9cm
Packing: 1pc/box, 5pcs/59x35x40cm, 1650pcs/1x20'
Available voltages: 110V~120V, 220~240V, AC/DC:12V/24V/42V
|
|
Please use the link to check our full range of Circuit Board Hardware.
We can custom mould if you require a special size or configuration.
|
|
The muscle behind the motion.
Rugged, robust and reliable, hydraulic motors from Hägglunds can be used just about anywhere on land or at sea. From the bitter cold of Siberia to the blistering heat of Africa, they withstand the challenges of any environment and any type of industry.
Likewise, our motors can drive any application, from small winches to the largest bucket wheel reclaimers. Our broad range of motors covers the whole spectrum of needs, providing either shaft or housing rotation and handling everything from 5000 to 1 400 000 Nm.
|
|
|
|
