4 types:
• Mesh belt conveyors standard L (1)
• Mesh belt conveyor standard U (2)
• Mesh belt conveyor standard U with breaks (3)

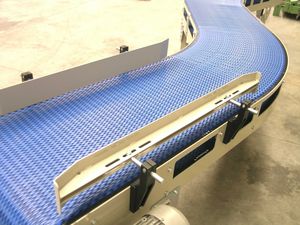

• Mesh belt conveyor standard U curves (4)
This range of conveyors answers, thanks to a vast choice of modular bands, to all the needs for transport of parts, for draining, drying and cooling functions. The positive drive, by toothed wheels, guarantees a precise positioning, as well as a sure passage on the level of the breaks and curves. (Maintenance and cleaning fulfill the requirements of the food mediums).
Possibility of replacing links insulated without disassembling of the conveyor, of changing partially or completely the band without dismounting the conveyor, to regulate the “tension” (play) of the band, to reverse the walk’s direction (consult us).
|
|
|
|
|
|
Flexible Conveying
The unique AmbaVeyor represents an economical and low cost solution for conveying products from A to B with a minimum of transfers.
The AmbaVeyor is a modular conveyor that can be installed either on a turnkey basis or in modules for on-site assembly. The conveyor integrates curves, inclines and straight segments between its drive and tail unit. Configurations with one continuous belt can achieve a length of over 50 metres using a single drive. The belt comes in a width range of 200-600 mm.
Endless flexibility at unbeatable prices
With its combination of durability and limitless versatility, the Ambaveyor represents real value for money. Where complicated manoeuvres are involved, traditional systems can be up to four times more expensive for comparable functionality. The favorable AmbaVeyor modules prices prove unbeatable overall track prices.
24 hours stock supply
AmbaVeyor modules are stocked at several distribution centres around the world. This ensures short delivery times and ready availability. If you order stocked parts before noon, they will be on their way the same day.
Unique modular conveyor system
The AmbaVeyor frame modules can be assembled into a complete conveyor in no time at all. Once the slide strips and belt have been snapped into place and the slat belt has been pulled in, the conveyor is ready to run. Modules are available in kit form or, if preferred, they can be supplied in standard lengths that can easily be cut to size on site. Bring sufficient parts on site and install as simply as you would do the wiring.
|
|
Logistex MB200 Modular Belt Conveyor
Simple transportation with minimal maintenance and quick
installation
Features:
Robust construction ensures longer life and heavy load handling ability
Simple cam adjustment of snub roller and easy-to-remove pulleys
Standard gear/motor options to meet global requirements
Benefits:
Provides easy and accurate belt tracking
Direct drives reduce parts requirements
Increased energy efficiency
Design minimizes mainlenance lime
|
|
mk conveyor technology
A comprehensive, standardised range of belt conveyors, chain and table top chain conveyors as well as roller conveyors.
The configurability of the modules enables them to be adapted to customers' specific requirements and integrated in complex systems. At the same time, the basic principle of optimum standardisation ensures process security, fast availability and reasonable prices.
Module belt conveyor:
- Conveyor lengths: 400 to 10000 mm
- Conveyor widths: 210 to 1010 mm
- Conveyor load max.: 150 kg
|
|
MPB Series Modular Plastic Belt Conveyors
• Accumulation
• High Temperatures
• Sharp parts
• Low maintenance
7400 Series Curve & Straight Plastic Belt Conveyors
• Curves & Straights
• Opens in Seconds for easy cleaning
• No Tools Required
• Welded construction
|
|
MODULAR BAND CONVEYOR
Technical Characteristics
- Stainless steel bed, folding without retention, 2mm thick
- Plastic modular band with options: cleats, crowned shell stops, open or closed mesh, rail stops, etc.
- Watertight resign bearing bodies
- Return of chain on revolving rollers
- Gear motor driven by sprocket and chain under boot or geared motor or direct drive
- Stainless steel construction
- Comes in painted steel
Function
For the transport of unit, volume or packed products
Advantages: Easy to clean, offering quick and easy maintenance, possible operation in an environment that is damp or subjected to significant differences in temperature, with a wide range of modular bands and accessories available.
|
|
|
|
|
|
SMI offers innovative systems for the transport of loose containers, bottles or cans and for clustered products, bundles and cardboard cases.
Top-quality, wear-resistant components
Made of stainless steel AISI 304, SMI conveyors feature a wide range of chains, in order to optimize the transport of plastic/glass bottles and cans, and several types of rollers ensuring fluid and regular movements, in order to avoid damaging the conveyed products. The use of top-quality components, together with wear-resistant materials, minimizes the friction and the noise and makes the maintenance operations easier, with a quality/ price ratio among the best in the sector.
User-friendly technology
SMI conveyors are very easy to use, both during the production cycle and during the maintenance operations. In fact, any intervention to be performed by the operator is very simple and intuitive thanks to the POSYC control panel with LCD colour touch- screen. Furthermore, the automation of the movements ensures an optimal control of the product flow, according to the operation parameters of the whole line.
Total compatibility with other systems
Thanks to the modular design, to the 'mechatronic' architecture and to the high compatibility with other systems, it is easier to integrate SMI conveyors in several kinds of bottling and packaging lines, already existing or still to be designed; moreover, the installation, start-up and commissioning operations are simplified.
|
|
Models and typical applications include:
-700PB - general goods transportation

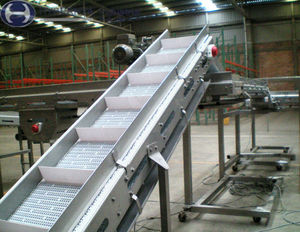

-PPF with base fllights ("cleats") - small parts, injection molded parts
-700FFT inclined belt with friction top belt - inclined/declined carton handling
-700PBC flush grid curve - 30°, 45°, 60°, 90° and 180° curved applications
-700RR raised rib belt - ideal to transfer small parts with finger transfer plates
-700RT inline roller top belt - for temporary minimum pressure accumulation
-700TRT transversing roller top - centers product and 90° product transfers
-HD1200PB - pallet loads, appliance and furniture applications ("slat") and
-HD400PB - use for heavy duty applications and heavy pallet loads.
|
|
MPB Series Modular Plastic Belt Conveyors
• Accumulation
• High Temperatures
• Sharp parts
• Low maintenance
7400 Series Stainless Steel Curve & Straight Plastic Belt Conveyors
• Curves & Straights
• Opens in Seconds for easy cleaning
• No Tools Required
• Welded construction
|
|
HK Systems “Intralox” plastic chain conveyors are “roller-less” designed plastic full width chain conveyors, serving various applications, including transportation, merging, product singulation, turning, and transferring.
Application :
Common use of this equipment is for consistent and/or various case size applications, where product is subject to orientation challenges and/or product scarring
Features and Benefits :
Conveyor lengths engineered to minimize drive assemblies
Roller top chain allows for product orientation
Various configurations: Merging, Diverging, Singulation, Product Turning
|
|
|
This conveyor is the result of twenty years of experience that MB has achieved in the field of internal transport. Conceived in a modular and sectional design, specifically developed for high-speed handling of blown bottles, the modular conveyor is made with high quality and reliable components; construction in all AISI type 430 stainless steel.
|
|
| ... products without technical information |
| |
Ammeraal Beltech sets new standards with modular belting technology. The unique belts design maintains the highest hygiene standards. The All-in-One series of belts are the perfect solution for combining straight radius and inclined belts in one smooth continuous operating conveyor.
Unique patented innovations as ‘Amflight’, ‘Check-in flight’ and trough options offering solutions for all industries.
The same design that has proven to be successful in standard radius applications is also the best solution for many spiral systems. Today we are world leader in plastic belts on spirals, having more installations in proving, drying, cooling, chilling and freezing applications than any other manufacturer.
|
|
|
Because of their construction conventional conveyor belts are not suitable for many applications. Siegling ProLink modular belts are an excellent solution in these cases: The material is rot-resistant, durable and physiologically safe (all standard materials used are FDA compliant). As a rule cleaning the belts is simple.
|
|
Based on our comprehensive experience and our leadership position in traditional belting, Habasit has developed the HabasitLINK plastic modular belts range. This state-of-the-art product line completes our offering as a single source supplier and partner for your success.
More than 40 plastic modular belt types offer solutions to various industries. We consider innovation a repeating cycle, therefore further belt types are in development providing further solutions to our industry partners.
|
|
Advantages of uni modular plastic belt:
- Ergonomic belts for manrider conveyors
- High permissible tensile strengths up to 100000 N/m or 6900 lb/ft.
- Low maintenance with quick and easy assembly/ disassembly
- Better load support and improved distribution
- Open surface area options for drainage and rough top surface for non-slip
- Impact/wear resistant materials
- Belts are bi-directional
- Longer single drives
- Safe flat closed surfaces
- Corrosion resistant materials
- Positive sprocket drive, no tension system required
- Silicon free materials available as standard
- Antistatic belts available for manrider conveyors to avoid static electric shocks
|
|
EUROBELT® SERIES 20 FLUSH GRID has a grille-shaped configuration, with a 32% of open area and a surface completely smooth.
It is ideal for applications in which a drainage through the belt is needed, avoiding any accumulation of particles on its surface. It implies an easier cleaning due to the possibility of applying water under pressure through the belt.
|
|
EUROBELT® SERIES 40 SLIDING ROLLERS is provided with small rollers inserted on its surface that revolve whenever there is accumulation, avoiding crushing and damage in the base of the product.
Those rollers can be inserted in Flat Top or Flush Grid types of SERIES 40, so that you can choose the suitable type according to the requirements of the application. This belt has been designed mainly to solve problems of transport of boxes, containers ...
|
|
EUROBELT® SERIES 30 PERFORATED FLAT TOP, with a 17% of open area, has a completely smooth grille-shaped surface, with small openings completely straight and without obstacles, having the following dimensions in millimetres: [2 x 5] and [2 x 8].
This is the suitable belt for applications in which a drainage through the belt is needed and the product to be transported is small.
|
|
