| Sartorius moisture analysis and systems for water content analysis deliver convincing performance thanks to their exceptionally fast measurement results and exceptional reliability. They offer all the features required for use in fields of application relevant to GLP, GMP and cGMP. |
|
... for measuring the moisture content within a split second in a production run in progress thanks to the use of microwave resonance technology.
– Moisture analysis in less than 1 second
– Complete process monitoring
– Results independent of the color and surface structure of a sample
– Non-destructive measurements
– At-line measurements also possible |
|
For measurement of the water content in solid and pasty samples, the Sartorius Water Detection System 400 is the ideal alternative to classic Karl-Fisher titration. The WDS 400 combines three reference methods – oven drying, coulometry (Karl-Fisher titration) and phosphorous pentoxide into a highly accurate measurement technique. Yet the WDS 400 is also easy to operate without having to have special training and eliminates the need for working with detection reagents, many of which are toxic and expensive.
• Detects water quantities in the trace range
• Selective differentiation among surface and capillary water and water of crystallization
• Operating range from a few ppm to approx. 40% moisture
• 1 µg detection limit
• ± 2% reproducibility of the absolute water content |
|

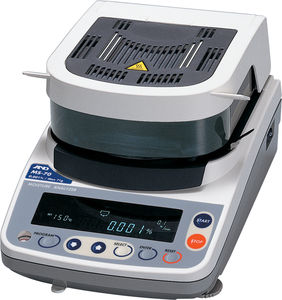

The MS-70, MX-50, MF-50 and the ML-50 are moisture analyzers that utilize the heating and drying method, which compares the weight of a sample before and after heating and drying. Compared with Karl Fischer analyzers, the MS/MX/MF/ML analyzers are much easier to operate and require a shorter time for measurements. At the same time, they maintain very high repeatability thanks to the incorporation of A&D¡'s Super Hybrid Sensor (SHS) as the weighing sensor.
The Windows Communication Tools, WinCT-Moisture, is provided as standard for the MS and MX (optional for MF and ML). With the RsFig, the MS/MX/MF/ML can display a graph on a PC showing changes in the moisture rate while performing measurements. Moreover, with RsTemp, it is possible to determine the most suitable heating conditions for a given sample in a very short time. Specifically, RsTemp automatically changes the heat applied based on set increments and interval times within a range of 30°C-200°C. Given changes in the moisture rate over time, it can determine the most suitable heating temperature.
Another unique feature is that the MS/MX/MF/ML come standard with Sodium Tartrate Dihydrate. Sodium Tartrate Dihydrate is a chemical material that has a stable moisture content of approx. 15.66%, and is therefore ideal to check for accuracy in order to maintain the reference value of the analyzer.
The moisture content resolution of the MS, MX, MF and the ML is 0.001%, 0.01%, 0.05% and 0.1% respectively. The MS-70 is the leading model and is capable of measurements as precise as those done by a Karl Fischer moisture analyzer.
Please see the Users Handbook for the MS/MX/MF/ML for further details. |
|
The optimal hardware structure for varying applications is achieved by combining various standard mechanical and electronic modules. The measured values are available on two freely configurable and scaleable analogue outputs and on the serial RS232 interface.
Two freely configurable optional alarm outputs can be set by software. The measured data and the corresponding MIN/MAX values can be viewed on the optional LCD display. By selecting a suitable housing version the EE29/EE31 series can be used for the entire range of humidity measurement applications:
Model A: for wall mounting
Model B: for duct mounting
Model D: with remote sensing probe for measurements in the range of -40...180°C
Model E: with remote sensing probe for pressure tight applications between 0,01...15 bar
Model F: with rear cable outlet for wall mounting in clean room applications
Technical data
Measuring range: 0-100% RH; -40...180 °C
Outputs: 0-5V, 0-10V, 4-20mA, 0-20mA
Accuracy: +/-2% RH; +/-0.2 °C
Supply: 24V AC/DC
|
|
Back-lit LCD graphic display with digit height 20 mm
2 halogen quartz glass heaters 500 W each
10 sample plates included
The last value measured remains on the display unt it is replaced by a new measurement
Application table. Various examples in the user manual
Balance contains memory for automatic sequence of 99 complete drying processes. Per memory location 12 free characters
Weighing in help to a defined target value [g] with adjustable tolerance range 1% - 25% of target value
User guidance step by step in the display. Selectable languages: German, English, Spanish
PC keyboard can be connected |
|
The XM120 moisture analyser meets the highest international quality standards. Precisa has developed an instrument which not only provides a high degree of precision, but also offers an outstanding array of additional options. XM120 will fit perfectly into your IT environment and has integrated connections to external PC’s and equipment.
Generous memory capacity, optimum control for measuring processes and state-of-the-art, user-friendly high-end weighing technology are its most impressive features. XM120 works according to the tried and tested infrared drying method, which is distinguished by a wide thermal radiation spectrum. This means that even heavy samples can be analysed accurately.
The XM60 moisture analyser is the low-volume instrument for customers with low sample volumes and quantities. It is robust, perfectly accurate and simple to operate. Thanks to the high thermal values, it delivers quick and accurate results. Irrespective of your analysis criteria, the widest range of analysis options are at your disposal.
The XM66 delivers rapid moisture results for sewage and waste water treatment plants. The increased weighing range of 310g enables both the use of heavier tare vessels and greater specimen quantities. The XM66 offers the option to store four weighing results which make it possible to calculate the ash residue after ashing of the specimen has been completed externally. |
|
The optimal hardware structure for varying applications is achieved by combining various standard mechanical and electronic modules. The measured values are available on two freely configurable and scaleable analogue outputs and on the serial RS232 interface.
Two freely configurable optional alarm outputs can be set by software. The measured data and the corresponding MIN/MAX values can be viewed on the optional LCD display. By selecting a suitable housing version the EE29/EE31 series can be used for the entire range of humidity measurement applications:
Model A: for wall mounting
Model B: for duct mounting
Model D: with remote sensing probe for measurements in the range of -40...180°C
Model E: with remote sensing probe for pressure tight applications between 0,01...15 bar
Model F: with rear cable outlet for wall mounting in clean room applications
Technical data
Measuring range: 0-100% RH; -40...180 °C
Outputs: 0-5V, 0-10V, 4-20mA, 0-20mA
Accuracy: +/-2% RH; +/-0.2 °C
Supply: 24V AC/DC
|
|
| The rugged Thermo Scientific MOLA is a state-of-the-art moisture on-line analyzer which uses patented neutron backscatter pulse mode ion chamber technology to non-intrusively measure the concentration of hydrogenous material in a process vessel. In iron and steel making, the MOLA is used to improve the operation of the blast furnace by accurately measuring the moisture content in metallurgical grade coke and/or iron ore pellets. The ion chamber in the MOLA acts as a hydrogen molecule detector and, based on the amount of hydrogen present, can determine the moisture in coke. Pulse mode technology allows for excellent stability and repeatability over a very wide temperature range without the need for high voltages or temperature stabilization of the circuitry. It has proven to help steel mills more effectively manage variability in coke size, harsh environmental conditions at the point of measurement and high coke volume. The MOLA is easy to install with no component exceeding 45 pounds. It also features a streamlined design that allows for rapid diagnostics and servicing of the unit. |
|
| AMETEK's trace moisture analyzers use our unique quartz-crystal microbalance (QCM) technology or phosphorous pentoxide (P2O5) technology to provide accurate and fast moisture measurements in either ultra high purity semiconductor or industrial process gas streams. The analyzers are available in a variety of rack-mount, weatherproof, and explosion proof packages for monitoring ppmv or ppbv concentrations of moisture. |
|
| The IM series is an on-line multi IR wavelength analyzer utilizing the infrared absorption technology for measuring product constituent and/or thickness. Signal processing capabilities are built into the Compact All-In-One detector unit for easy installation and operation. A maximum of 99 calibration curves can be stored into the detector memory for numerous measurement applications. The detector can be used by itself or connected to a PC/plant control system, as both analog and digital outputs are provided. A remote setting display unit, connectable upto 9 detector units, can be used to setup various detector functions and also displays measured values. |
|
Utilizing an Aluminum Oxide sensor 600 times more sensitive than conventional sensors
The 8800 series uses field proven aluminum oxide (Al2O3) sensing technology to accurately detect trace moisture on either a continuous or spot checking basis.
All Al2O3 sensors share the same basic operating principle: the capacitance measured between the sensor's aluminum core and gold film deposited on the oxide layer varies with the water content. However, the Series 8800 moisture sensor employs unique Hyper Thin Film (HTF) technology, which offers three major structural improvements in Al2O3 sensor design.
Versatile Design Options
The Series 8800 Single Point Trace Moisture Analyzers are provided in four compact, reliable designs with the ability to detect moisture from -100°C to ambient dewpoint levels of +20°C on either a continuous or spot checking basis.
- 8800A – Flush Mount DIN enclosure with connections made via a pluggable screw terminal block
- 8800B – Wall Mount N4X (IP65) enclosure with connections made 3 bottom watertight fittings
- 8800P – Portable battery operated design available in the Standard Version, I/O Version, and I/S Version (I/S version suitable for hazardous areas)
- 8800T – Low-cost, loop powered 4-20mA transmitter design with built-in LCD display |
|
- Capacity of weighting up to 200g
- Accuracy ± 1mg
- Balance resolution : 1 mg
- Min. Sample Weight : approx. 140mg
- Max Sample Weight : 200 g
- Pan diameter : 120 mm
- Moisture accuracy : ± 0.01 % (min. sample 10 g)
- Moisture resolution : 0.01 % (min. sample 10 g)
- Furnace Temp. Range : 50°C - 180°C
- Timer Range: 1 - 999 minutes
- Operating Temperature : 10°C - 40°C
- RS 232 serial output
- Pan diameter: 120mm
- Max power consumption : 350 W
- Power requirements : 220V - 15%/+10% - 50 Hz - 2A
- Dimensions : 210 x 355 x 300 mm
- Net weight: 9 Kg
|
|
MIDAC's V-Series Moisture Analyzers provide unprecedented capability for detecting moisture and other impurities in corrosive gases. V-Series systems are the only complete, turnkey systems to give you all these features and capabilities:
- detection to less than 10ppb of H2O in many corrosive matrices, including Ammonia
- detection to 1.0 ppb in HCl
- complete immunity to the effects of atmospheric background moisture
- extremely fast response and equilibration times
- the ability to analyze multiple compounds in addition to moisture
- customized low volume sample cells electro-polished to eliminate moisture retention
- low internal power dissipation for durability under extended vacuum operation
- sensitive thermo-electrically cooled InAs detector
- short set-up time and easy transportability
- customized dedicated analytical and process software
- superior corrosion-resistant materials for extended service life |
|
Speedy Moisture Tester for foundries and powders
The Standard Speedy 2000 series of moisture testers combines time proven dependability of the pressure test procedure with the convenience of an electric balance.
Moisture measurements are obtained by following a simple test procedure:
Prepare and weigh the material sample using the electronic balance.
Place the sample in the Speedy vessel.
Add the reagent to the recess in the Speedy cap and seal the vessel.
Shake the Speedy to mix the reagent with the sample.
Read the moisture content directly from the integral gauge.
Technical Information:
Standard Speedy vessel fitted with calibrated pressure gauge, electronic balance, heavy duty carry case with fitted foam inserts, cleaning brush and cloth, measuring scoop and instructions.
Nominal gross weight: 12.1lb (5.5Kg)
Nominal gross dimensions: 20 x 15 x 8" (510 x 380 x 200mm)
For 0 - 10% range: 12g
For 0 - 20% range: 6g
Maximum sample size: 0.4" (10mm)
Moisture measurement range expressed as a percentage of the wet weight of the sample: Model F-S2000C: 0 - 10%, Model F-S2000D:0 -20%
|
|
| As the new Moisture Analyser for all purposes, the IR-35 offers a great performance especially matched to the daily needs in a laboratory. Its easy operational concept provides a large and clearly arranged display - that gives all important information at a glance, as well as an easy menue navigation - that directs the user with the help of easy to understand symbols from taring the sample pan to the beginning of the analysis in just three steps. Thanks to the fully self-controlled determination of the endpoint, no programming of a shutoff criteria is necessary. The moisture determination is monitored continously and the analysis is stopped once no further weight loss is detected. |
|
EE35 Series
Dew Point Measurements down to -60°C Td (-76°F Td)
Exact dewpoint monitoring is increasingly playing a more important role in many industrial applications, such as drying processes and air pressure pipelines. For these purposes the multifunctional EE35 transmitter series offers the ideal features.
The EE35 Series is based on a functional, user-friendly housing concept and on the proven
polymer humidity sensors of the HC Series.
A specially developed autocalibration process enables measurements in a measurement range
of -60...+60 degC Td with a Td measurement accuracy of ±2 degC.
Two freely configurable and scaleable analogue outputs are available for the two measurement values (Td, T).
An optional hygrostat output, which can be set by means of a potentiometer, provides an alarm signal in a simple way when a threshold of the permitted dewpoint is exceeded.
An optional display for the measure- ment values and the associated MIN/MAX values allows a quick overview of the current situation.
Measuring range: -60...60 degC Td (-76...+140°F Td) ; 0...60 degC T (32...140°F T)
Outputs: 0-5V, 0-10V, 0-20mA, 4-20mA
Accuracy: +/- 2 degC Td; +/-0.2 degC T
Supply: 24V AC/DC
|
|
Promet EExd offers single and dual channel moisture measurement, with integrated electronic pressure reading, within a single field-installed flameproof housing. User interface is provided through the bright vacuum fluorescent display and touch screen switches.
Comprehensive Sampling Systems of state-of-the-art design, with best practice sample filtration, pressure reduction and flow control, and a range of options are available to fulfil user specific installation and application requirements.
EExd Flameproof ATEX and CSA certified
Complete zone 1 or 2 installation
Low wattage AC supply only utility requirement
Single- or dual-channel measurement
Calibration traceable to NPL(UK) and NIST(USA)
Field calibration maintenance by user adjustment or unique sensor exchange service
Range -120 to 30 °C Dew Point, 0.001 to 30,000 ppmV
Moisture content units in ppmV, mg.Nm-3, LB/MMSCF
Integrated electronic pressure measurement
Modbus RTU and 4-20mA linear signals
Process and instrument status volt-free alarm contacts
Remote global access options |
|
La série EE22 est caractérisée par une sonde interchangeable instantanément.
Les données de calibration étant stockées dans la sonde de mesure, l'échange de la sonde est réalisé sans perte de précision.
Les systèmes de calibration de haute précision et les technologies de microprocesseur nles plus modernes, sont la garantie d'une grande précision sur toute la gamme d'utilisation. L'excellente stabilité à long terme est un gage de tranquillité pour l'utilisateur des capteurs E+E.
Gammes de mesures: 0...100% HR; -40...80°C
Sorties: 0...1/5/10 V ou 4...20 mA
Incertitude: +/-2% HR; +/-0,3°C
Alimentation: 24V AC/DC
|
|
Applications:
Used to measure the moisture level in sawn timber
(also cardboard, paper) and hardened materials
(plaster, concrete and mortar). It displays the moisture
level in the material straightaway. |
|
The Vaisala HMT360 Series for Moisture in Natural Gas incorporates Vaisala's proven HUMICAP® sensor technology.
With three probe designs to choose from, the HMT360 Series is flexible enough to suit your installation requirements. Compatible with most existing sampling systems, it is easy to replace old or malfunctioning devices. Designed for high pressure systems, these probes can be installed directly into pipelines, eliminating the need for complex and expensive sample systems. With its ball valve set, the probe can be inserted and removed in low pressure systems. The transmitter is easily configured, and delivered with a one week lead time.
The HUMICAP® sensors are not damaged by glycol, and can tolerate saturated conditions and contact with water without causing measurement drift. The sensors dry down rapidly after exposure to water in the process or ambient conditions. The HMT360 Series is rated intrinsically safe for Class I Division I environments.
The stable HMT360 Series has a one year recommended calibration interval, thus saving maintenance costs and measurement downtime. Probes can be changed in the field in just a couple of minutes!
|
|
Package D-2C consists of the mini-Ligno DXC, the Electrode E12 ,
1 pair each of pins DZ and DA, the BNC-mini Cable and the Case M.
The DX/C is one of our most popular meters with the following features:
-- a unique shape that fits comfortably in your hand when measuring
-- a measuring range low enough to check hardwood floors (5%*)
-- a measuring range high enough to evaluate wet lumber (65*)
-- a bright, digital display readable even in dark crawl spaces
-- resolution of 0.1% below the critical range of 10%
-- 20 settings for wood species corrections including a chart for domestic and tropical wood species
-- a reference scale 0-99 for non-wood building materials such as drywall, plaster and other "soft" building materials. For instance, to pinpoint problems around windows or showers, in leaky ceilings, after water lines broke or buildings were flooded.
-- connection for external cables and electrodes - to evaluate concrete or
reach hidden areas for moisture testing, even behind 7" of insulation. |
|
All Ligno-Scanners are calibrated to give true wood moisture readings in percent and have built-in corrections for different species.
With a pinless meter you can quickly scan a large number of boards, detect higher moisture levels and water pockets. Pinless meters are essential when checking finished products such as cabinet doors, table tops and ready-to-sell furniture, where pins would leave visible marks. Ideal for building inspectors to assess moisture conditions and water damage in buildings, especially since Scanners can also be used for non-wood building materials such as drywall, concrete, tile, etc. |
|
Protimeter Aquant Non-Invasive Moisture Meter
The Aquant has a digital display that is synchronized with a color-coded LED scale. The display shows the relative moisture level of the material under investigation on a scale of 0-999 and the color coded LED scale indicates the material%u2019s moisture condition. To use, the Aquant is simply held against the surface of the material under investigation. The relative moisture level is measured by radio frequency to a nominal depth of 10-20mm. There are no needles to mark the surface and the Aquant is not adversely affected by moisture.
Range 0 - 999 Relative
Display 12 - Digital LCD
Display 2 - 60 LED%u2019s
Hold Reading Feature
Depth of measurement-Up to ¾"
Case-Pouch with belt loop.
Power-9v (supplied)
Warranty-1 Year parts and labor
Features & Benefits:
Detects moisture directly in materials and below wall and floor coverings such as tile, wood and vinyl.
Reset reading for sensitivity adjustment
Not adversely affected by surface moisture such as condensation.
Dual Display LCD and LED.
Color changing LED's to show moisture condition.
|
|
Integrated moisture and temperature measurement.
The Protimeter Grainmaster i is a highly versatile instrument to measure the moisture and temperature of crops. The meter is pre-programmed with 15 crop calibrations, each of which can be adjusted individually, if required, for matching with respect to commercially used instruments.
It is supplied with an integrated grinder-compressor unit that enables the user to take moisture readings in ground samples very quickly and simply. There is also a range of optional probes for measuring temperature in stored grain (GRN6046) and moisture levels in baled hay and straw (GRN6138).
The Grainmaster i is supplied in a pouch with grinder-compressor unit, grain cup, sample spoon, brush and 'Quickcheck'. In addition to the 0-100 relative scale, the 15 pre-programmed calibrations include: Wheat, Barley, Oats, Oilseed Rape, Canola, Linseed, Peas, Corn, Sunflower, Coffee, Soya, Rice, Sorghum, Paddy and Beans |
|
Surveymaster
Surveymaster is a moisture meter that displays the moisture level values on a digital display along side a scale of color-coded lights. This digital moisture meter helps in accurate building material moisture measurement [mini]. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.
Features & Benefits:
Surveymaster moisture meter is supplied with pouch, moisture probe, deep wall probes, calibration check device and wood calibration table. |
|
|
