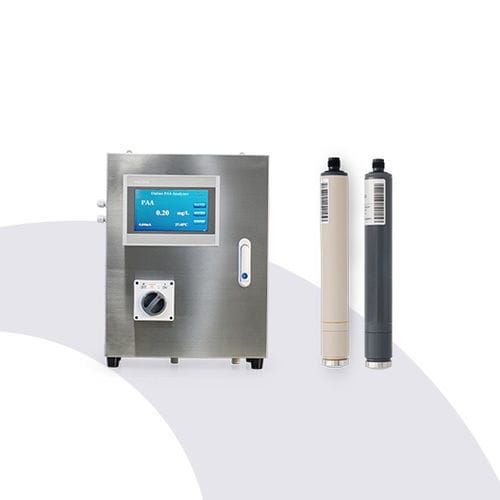

Water analyzer W781-AF304

acidsignalmonitoring

Product Overview
Our Peracetic Acid (PAA) Analyzer is a robust, precision-driven online monitoring solution built with 304 stainless steel for exceptional corrosion resistance—ideal for harsh industrial environments. Available in Regular Temperature (max 45°C) and High Temperature (up to 60°C) models, it delivers accurate PAA concentration measurements via a durable membrane current two-electrode system. Enhanced with an intuitive touchscreen interface, it simplifies real-time data monitoring, parameter adjustments, and system diagnostics—no complex coding required. With rapid response times, dual-channel flow cells (pH-electrode compatible), and IP68/IP65 protection, it integrates seamlessly via 4-20mA/Modbus RS485 signals. Perfect for food/beverage sanitization, pharmaceutical sterilization, water treatment, and industrial cleaning, this analyzer combines reliability, flexibility, and long-term durability to support critical process monitoring.

Product Introduction
Peracetic Acid (PAA) Analyzer is a high-performance online monitoring device engineered to deliver accurate, real-time PAA concentration measurements in liquid systems. Offered in Regular Temperature and High Temperature variants, it combines robust 304 stainless steel construction with advanced detection technology to suit diverse industrial needs.

Applications
Ideal for real-time PAA monitoring across sectors:

• Food & beverage sanitization lines
• Pharmaceutical sterilization processes
• Water treatment disinfection systems
• Industrial cleaning workflows
• High-temperature (up to 60°C) production environments

Key Features
✅ 304 Stainless Steel & Corrosion Resistance

• Core components built with 304 stainless steel (and 316L options)
• Resists harsh chemicals, cleaning agents, and high-moisture environments
• PTFE/PEEK coatings enhance long-term corrosion durability

✅ Dual Temperature Compatibility

• Regular-temperature model: handles up to 45°C workflows
• High-temperature model: supports 60°C high-temperature water systems

✅ Accurate & Fast Detection

• Membrane current two-electrode system (measurement precision <3%)
• Rapid response time (as quick as 1.5 minutes for high-concentration samples)

✅ Flexible Integration

• Dual-channel flow cell (compatible with pH electrodes)
• Multiple output signals (4-20mA/Modbus RS485) for easy system connection
• Versatile installation (thread/flange) and 8mm quick-connect ports

✅ Reliable Protection

• Sensor IP68, controller IP65/NEMA4X, and enclosure IP65 ratings
• Withstands demanding industrial operating conditions

Technical Specifications (By Sensor Model)
Parameter | Regular Temperature Model (W781-AF304-DP10.1MA) | High Temperature Model (W781-AF304-DP9.3MA)
Measurement Range | 0-200/2000/2%/5% ppm | 0-200/2000/2% ppm
Core Material | 304 stainless steel + 316L (sensor) | 304 stainless steel + 316L (sensor)
Max Water Temp | 45°C | 60°C
Resolution | 1-0.01 ppm (varies by range) | 0.1/1/0.001 ppm (varies by range)
pH Range | 1-8 | 1-8
Max Pressure | ≤1.0 bar | ≤1.0 bar
Response Time (T90) | ~3.5min (10°C); ~1.5min (45°C) | ~3.5min (10°C); ~1.5min (45°C)
Protection Class | Sensor IP68; Controller IP65/NEMA4X; Enclosure IP65 | Sensor IP68; Controller IP65/NEMA4X; Enclosure IP65
Output Signal | 4-20mA/Modbus RS485 | 4-20mA/Modbus RS485
Power Supply | 105-235VAC; 24VDC±5% | 105-235VAC; 24VDC±5%
Dimensions (H×W×D) | 500×400×200mm | 500×400×200mm

Characteristics / Technical Specifications

• Model: W781-AF304
• Material: 304 stainless steel + 316L (sensor)
• Temperature Range: Regular (max 45°C), High (max 60°C)
• Measurement Range: 0-200/2000/2%/5% ppm
• Resolution: 1-0.01 ppm or 0.1/1/0.001 ppm (varies by range)
• pH Range: 1-8
• Max Pressure: ≤1.0 bar
• Response Time: ~3.5min (10°C); ~1.5min (45°C)
• Protection: Sensor IP68; Controller IP65/NEMA4X; Enclosure IP65
• Output: 4-20mA/Modbus RS485
• Power: 105-235VAC; 24VDC±5%
• Dimensions: 500×400×200mm
