Water analyser W510--DCD10.1

monitoringfor wastewateronline

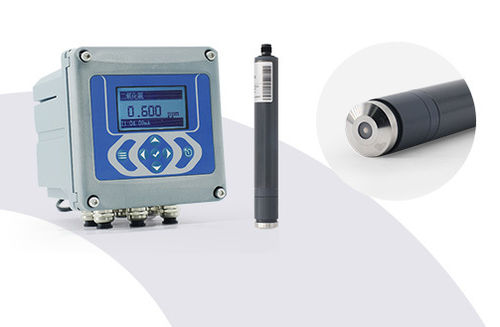

Online Chlorine Dioxide Analyzer with CD10.1 Sensor for Processing Water The online chlorine dioxide analyzer is equipped with a German-made CD10.1 sensor, adopting special osmotic membrane technology. It resists chemical interference (mainly surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, minimal maintenance, it delivers reliable and accurate data. Its application fields include tap water, chlorine dioxide generator, sewage treatment, pipeline disinfection and fruit and vegetable disinfection etc. Technical Parameters Measurement Parameters Chlorine dioxide, pH (optional) Measuring Ranges 0.0050.500mg/L; 0.0052.000mg/L; 0.055.00mg/L;0.0510.00mg/L; 0.0520.00mg/L Lower Limit of Measurement 0.005mg/L Resolution 0.001mg/Ldepending on the measuring range Response time T90≈2 - 8 minutes Repeatability ≤3% Drift Approximately - 1% per month (after calibration at 25℃ and pH = 7.2) PH range 1.0 - 12.0 (depending on the electrode) Maintenance Cycle The replacement cycle of the membrane cap is one year (depending on water quality) Flow rate In the flow chamber: 250 - 500mL/min Operating temperature 0 - 70℃
