Ozone water quality probe W510-DOZ10.1

industrialreal-time

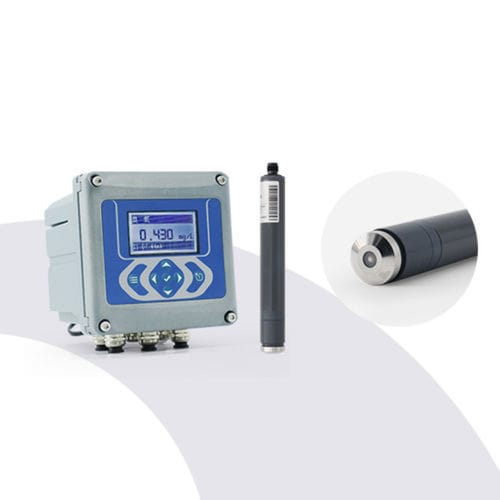

Online Ozone Analyzer with OZ10.1 Sensor for Drinking Water The online ozone analyzer is equipped with a German-made OZ10.1 sensor, adopting special osmotic membrane technology. It resists chemical interference (mainly surfactants), reduces pH dependence, and is not restricted by water quality. With fast response, stable performance, low cost, and minimal maintenance, it provides users with reliable and accurate data. Featuring a LCD screen, the instrument can automatically identify measured parameters. It has current 4-20mA and RS485 output, allows free setting of the measurement range, and is equipped with high and low limit alarm prompts, three-way relay control switches, an adjustable hysteresis range, and multiple automatic electrode calibration methods. It is widely used in drinking water disinfection and purification, swimming pool water disinfection, surface disinfection of food and beverage packaging containers, and barreled water disinfection etc. Technical Parameters Measurement Parameters - Ozone, pH (optional) - Measuring Ranges - - 0.0050.500mg/L;0.0052.000mg/L;0.055.00mg/L;0.0510.00mg/L;0.0520.00mg/L - Lower Limit of Measurement - - 0.005mg/L Resolution - - 0.0010.01mg/Ldepending on the measuring range Response time - - The fastest T90 ≈ 15 seconds - Drift - - Approximately - 1% per month (after calibration at 25℃, pH = 7.2) - PH range - - 2.011.0 - Maintenance Cycle - - ≥90days - Conductivity Range - - 10μS/cm50mS/cm - Temperature range - - 5~50℃
