Water analyzer W510-ORP

aluminumsignalmonitoring

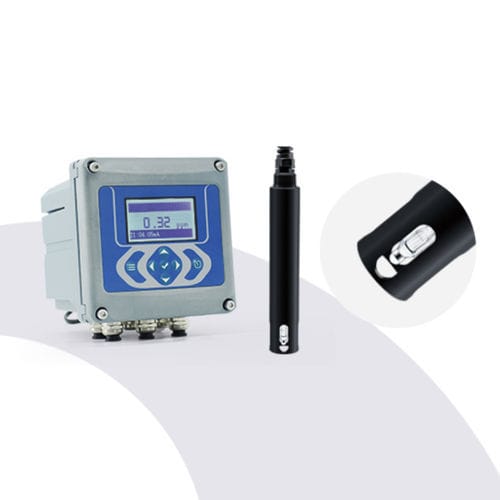

Product Overview The Online ORP Analyzer consists mainly of an instrument with an LCD screen for automatically identifying measured parameters, and a sensor which is a composite electrode combining a glass indicating electrode and a reference electrode, also known as a REDOX electrode. It features stable data, reliable performance, and easy installation. The analyzer can connect to digital RS485 interface and access two-wire 4-20mA signal output. It is widely used for ORP monitoring in sewage treatment plants, waterworks, water stations, surface water, aquaculture, and industrial sectors. Application fields: Widely used in the monitoring of ORP in fields such as sewage treatment plants, waterworks, water stations, surface water, aquaculture, and industry. Functional Features - Dual-channel access, allowing configuration based on your needs. - Enables plug-and-play of sensors, facilitating quick and easy installation and replacement of electrodes. - Features a simple-to-operate interface, minimizing operational errors and ensuring reliable results. - Offers visual operation on the LCD screen with a rich and comprehensive interface. - Provides multiple data output options, including 4-20mA and MODBUS RS485. - The transmitter supports wall-mounting, panel-mounting, or pipe-clip mounting. - Crafted from aluminum alloy, it offers high strength, oxidation resistance, and corrosion resistance, enhancing its texture and market attractiveness. Technical Parameters - Measurement parameters: ORP - Main material: Shell: PPS, Ag/AgCl, KCL gel - Measurement range: ±1000 mV - Pressure range: ≤0.4Mpa - Temperature: 0-80℃ (without freezing) - Zero-point mV value: 86±15mV (at 25℃) (in a pH 7.00 solution containing saturated quinhydrone) - Range: ≥170mV (at 25℃) (in a pH 4 solution containing saturated quinhydrone) - Response time: ≤10 seconds (reaching 95% of the end value) (after stirring) - Protection class: IP65 - Dimensions: Diameter 26mm × Length 172mm - Installation thread: Fixed at the upper/lower end with NPT 3/4 - Cable length: Standard: 5m, maximum extendable to 20m - Display: LCD liquid-crystal screen - Power supply: 105～235VAC, 50±1Hz/24VDC±5% (DC is optional) - Power: ≤12W (including the sensor) - Analog Output: Two ways of analog outputs (load resistance < 500Ω) - Digital output: RS485 interface, MODBUS RTU protocol - Relay output: Three-way relay 5A 250VAC, 5A 30VDC - Material: Bottom shell: Cast aluminum with plastic spray coating - Top cover: PA66 + 30GF with paint coating - Size: 145*145*174mm (H*W*D) - Weight: 1.8kg (Not including the sensor) - Waterway interface: 2-inch or 3-inch hose (custom made) - Flow rate: In flow chamber: 250～500mL/min - Protection level: IP65 - Water pressure: ≤6 bar (matching a pressure-reducing valve with the instrument) - Working humidity: <90%, no condensation - Working temperature: Instrument: -15℃～50℃; sensor water temperature: 0.1℃～45℃ (0.1°C to 70°C for special applications) - Storage temperature: Instrument: -20°C～60°C; sensor: 0.1°C～55°C FAQ – Frequently Asked Questions - Products are designed and manufactured in China, following international quality standards and certified processes. - OEM/ODM services and private labeling are available for international clients. - Products are compliant with CE, RoHS, and other international certifications. - Shipping and delivery are handled by major international couriers. - Product samples are available before bulk orders. - Standard products ship within 5–7 days after order confirmation; customized products may take longer. - 24/7 technical support, product guidance, and warranty service are provided. - Remote technical assistance and manuals in English are available for international clients. - Orders can be placed via email or website inquiry with professional guidance. - Over 30 years of manufacturing experience, advanced technology, strict quality control, and global customer service. Key Features / Technical Specifications - Model: W510-ORP - Measurement: ORP (±1000 mV) - LCD display - RS485 and 4-20mA output - IP65 protection - Wall, panel, or pipe mounting - Aluminum alloy construction - Power: 105–235VAC or 24VDC - Dimensions: 145*145*174mm - Weight: 1.8kg (excluding sensor)
