Multiple-disc brakes
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
Torque: 0 Nm - 286,524 Nm
Rotational speed: 950 rpm - 950 rpm
... twisting failure. Optional split friction discs simplify maintenance by allowing friction discs to be removed without disturbing other components of the drive system ...
Airflex
Torque: 90 Nm - 19,000 Nm
The H420 VAR 00 VAR 01 is a hydraulically operated multi disc brake. Activated by spring pressure. The H420 is utilized for braking a shaft and for holding a load. Features Particularities Standard ...
WARNER ELECTRIC
Torque: 0.24 Nm - 4 Nm
Power: 5.2 W - 12.4 W
Spring-applied brake INTORQ BFK551 Wherever there is only a very limited installation space available and a powerful brake is still required, we are sure to be “new fans”. Developed from the requirements ...
Kendrion (Villingen) GmbH
Torque: 60, 15, 180 Nm
Power: 25 W - 150 W
Wherever there is only a very limited installation space available and a powerful brake is still required, we are sure to be “new fans”. Developed from the requirements of the industrial truck industry, the advantages ...
Kendrion (Villingen) GmbH
... or decelerated as quickly as possible. Our wide range of products covers a wide variety of requirements. All clutches and brakes can be used in any installation position and require hardly any maintenance. All variants ...
Kendrion (Villingen) GmbH
Torque: 0 Nm - 32,000 Nm
Braking force: 36 kN
... series of disc brake calipers is suitable for use with discs of 25.4mm, and 40mm thick respectively. Minimum disc diameter is 610mm. Normally one or two calipers are ...
Torque: 3 Nm - 600 Nm
Rotational speed: 6,000, 2,200, 3,000, 4,000, 5,000 rpm
Power: 12, 16, 33, 57, 100 W
The electromagnetic spring brake FZ is a unit for work on horizontal axes, with a high degree of reliability, good heat dissipation, fast response speed and minimal residual torque. Without current, it remains ...
Torque: 7 Nm - 3,600 Nm
Rotational speed: 1,800 rpm - 4,200 rpm
Power: 7 W - 150 W
Electromagnetic multidisc type brake Tension: 24 V dc – 0% + 15% Application: in oil bath – for dry application at very low rpm only Mounting: The brake is fastened to a wall or on a ...
MWM FRENI-FRIZIONI
Torque: 20 Nm - 3,600 Nm
Power: 13 W - 150 W
Multidisc electromagnetic brake. Tension 24 V dc – 0 + 15%. Used in oil bath. The brake is fastened to a wall with the hub (8) splined to the shaft to be braked.
MWM FRENI-FRIZIONI
Torque: 100 Nm - 6,000 Nm
Power: 6 W - 162 W
Electromagnetic brake with front toothing, operation with milled flange EC/Z-F Tension 24 V dc – 0 + 15% Used for dry and oil applications. Used for dry and oil bath applications. It must be engaged ...
MWM FRENI-FRIZIONI
Torque: 187 Nm - 8,830 Nm
Rotational speed: 475 rpm - 2,000 rpm
The spring-loaded SL brakes are designed for all applications where a fail-safe brake is required. The brake consists of a hydraulic assembly, a plate assembly and a driven hub supplied ...
Torque: 0.75 daNm - 0.91 daNm
These negative type hydraulic disk brakes are very important in applications requiring an emergency brake for safety purposes: crane trucks, road vehicles, winches. Both a modular version ...
Torque: 225 Nm - 620 Nm
The SB Series brake provides superior performance in an extremely compact package. Unlike conventional brakes offered today, the SB brake is performance-matched to fit the full range ...
Torque: 0.3 Nm - 114 Nm
... the number of friction pads selected for a given brake. The 60 Series brake is the ideal low-cost pneumatic brake for low torque applications and for unwind stations ...
Dover Flexo Electronics
Torque: 1.5 Nm - 339 Nm
... 90 Series Dual Disc Brake, named for its nine-inch (9") diameter discs, offers high performance in a torque range from 14 lb-inches up to 3,000 lb-inches. As an integral part of a ...
Dover Flexo Electronics
Torque: 2 Nm - 702 Nm
... 110 Series Dual Disc Brake, named for its eleven-inch diameter discs, offers high performance in a torque range from 19 lb-inches up to 6,210 lb-inches. As an integral part of a high-performance ...
Dover Flexo Electronics
Torque: 0.05 Nm - 3,200 Nm
... A range of electromagnetic brakes with torque range from 0.05 to 3200 Nm / 0.4 in-lbs. to 2360 ft-lbs. Including multiple disc, mag-particle, hysteresis, spring applied and permanent ...
jbj Techniques Limited
... engineering application, Fairfield assures you the right brake, on time and ready for your production line. The rating you see is the rating you geton the job! We offer compact wet or dry, bolt on static brakes ...
Torque: 5,330 Nm - 260,000 Nm
Rotational speed: 640 rpm - 1,910 rpm
Power: 107,000 W - 2,330,000 W
WPT® Water Cooled Brakes (WCB) are a high energy absorbing solution used as a dynamic tensioning and static holding brake. The design of the internal water flow and copper alloy wear plates allows for ...
WPT Power Corporation
Torque: 1.5 ft.lb - 590 ft.lb
Rotational speed: 2,000 rpm - 4,000 rpm
Power: 12 W - 130 W

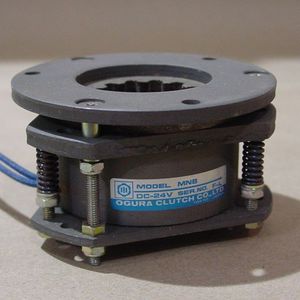

Spring applied brake used for industrial applications. Units are designed for stopping and/or holding. MNB units 1.2 and higher have adjustable torque feature. Torque of the brake can be fine tuned by ...
OGURA SAS
Braking force: 236 N
Multiple Disc Brakes Ideal for primary, emergency, and secondary braking MICO Multiple Disc Brakes are fully enclosed and built for ...
Torque: 8.333 ft.lb - 806.08 ft.lb
Flange Mounted Friction Brakes For Stopping and Holding Function: Stopping, Holding (Cycling Applications) Drive Arrangement: Machine Frame or Bracket to Shaft Operation - Air pressure compresses ...
Torque: 50 Nm - 1,600 Nm
Power: 79 W - 344 W
... wind energy systems. MAIN FEATURES Spring applied safety brake Electromagnetic released Protection-class IP67 – seawater protected High wear reserve by multiple air gap adjustment Small construction ...
DELLNER BUBENZER Germany GmbH
Torque: 25 Nm - 960 Nm
Rotational speed: 3,000, 2,400, 2,000 rpm
Power: 18 W - 88 W
... exchange negligible wear due to special friction lining suitable for applications in harsh environments reduced shift speeds due to adapted control also available as electromagnetic multiple-disc ...
Torque: 56 Nm - 1,580 Nm
... required. SAE brakes are widely used in these mobile equipment applications where failsafe brake operation is essential for parking in the event of a power loss. The SAE Series multi-disc, ...

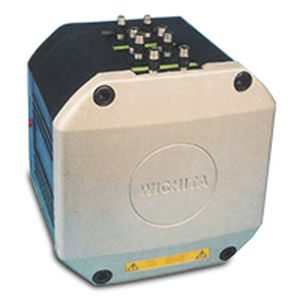

The Wichita CAB Copper Alloy Brakes are pneumatically actuated water cooled brakes used in applications where there is constant slipping. They have reduced envelope size by design with high power dissipation ...
Wichita Clutch
Torque: 60 Nm - 1,360 Nm
... EPMS® ELB 314, ELB 315, LBV 314 and LBV 315 for EPMT® ELB 313 and ELB 316 for EPMV® Static torque 6 - 136 daNm (depending on brake version) Opening pressure min: 4 - 39 bar Opening pressure max: 300 bar
