The NIR256-2.1 and NIR256-2.5 Near-infrared Spectrometers are designed for applications that require sensitivity in the near-infrared region such as tunable laser wavelength characterization and general NIR spectroscopy.
|
|
NIR Series

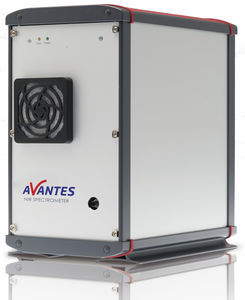

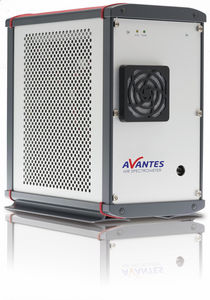

The NIR series of Spectrometers are used for applications that require measurements in the Near-Infrared range, like the analyses of sugar, alcohol, moisture, fats and lubricants. NIR spectrometers are also very well suited for applications like nitrogen detection, pulpwood QC and laser characterisation.
Applications
» Food analysis
» Beverage characterisation
» Paper measurements
» Process control
» Soil analysis
» Petrochemical analysis
Features
» InGaAs array detector
» Onboard thermoelectric cooling
» 16-bit USB A/D converter
Advantages
» Integrated design
» High-performance detector
» High sensitivity
» Stable operation
» Cools down to 30 oC below ambient
» Temperatures are set and operated via software
|
|
|
The high performance NIR InGaAs spectrometers use a linear photo diode array detector with 512 pixels (1024 optional) to provide maximum sensitivity. The NIR InGaAs spectrometers use single strand SMA-905 fiber optic input. Several models provide a variety of operational ranges and resolutions suitable for both spectroscopy and optical spectrum analysis. NIR applications include chemical ID and moisture analysis, SpectroRadiometry and optical power measurements, laser characterization, microsensor applications, and thicker thin-film measurements.
|
|
|
The Inframatic 8600 series consists of a range of NIR analyzers for various applications. They all share the basic features such as ease-of-use, built-in printer, dust-proof casing and sample handling that requires no sample cups. Depending on applications the systems can be equipped with 6-20 wavelengths, giving them a possible wavelength range of approximately 500-2400 nm.
|
|
|
|
|
|
BaySpec’s Super GamutTM series VIS and NIR spectral engines are designed to meet real-world challenges for best-in-class performance, long-term reliability, compact size and ultra-low power consumption. Benefiting from experience manufacturing high-volume optical channel performance monitoring devices for the telecommunications industry, BaySpec’s VIS and NIR spectral devices utilize low-cost field proven components. For the first time in instrumentation history an affordable, accurate and ruggedized spectral device is a reality.
The Super GamutTMSeries employs a highly efficient Volume Phase Grating (VPG) as the spectral dispersion element and an ultra sensitive InGaAs array detector as the detection element, thereby providing high-speed parallel processing and continuous spectrum measurements. As an input, the device uses a fiber optic input or slit optics arrangement based on customer preferences. The signal is spectrally dispersed with the VPG and the diffracted field is focused onto an InGaAs array detector. The control electronics read out the processed digital signal to extract required information. Both the raw data and the processed data are available to the host.
Key Features:
- Real-time spectral data acquisition with fast milli-sec response time
- Athermal design for ultra-low power consumption and improved reliability
- Hermetic-sealing ensures reliable operation in harsh environments
- Operates over wide -10 to +60 deg C temperature range
- Operates in high +85% relative humidity environments
- Covers wavelength ranges from 300-2500 nm
- Designed for field battery use operation
|
|
NIR Sensors use Near Infrared energy to make direct measurements of specific constituents or components of products during processing. They operate on the principal that certain wavelengths of NIR energy are selectively absorbed by these constituents.
NDC Infrared Engineering manufactures a whole range of NIR Sensors which use three principle configurations:
. Backscatter (or Diffuse Reflection)
. Transmission and Forward Scatter (or Diffuse Transmission)
. Specular Reflection
Each configuration lends itself to particular products to offer a no-compromise measurement solution.
The advantage of NIR measurement technology is that it is completely safe, with extremely low energy levels in a safe area of the electromagnetic spectrum. This means that no special shielding is required nor any licensing or special safety training for operators.
|
|
| ... products without technical information |
| |
|
The Antaris NIR product line presents an industry-driven migration of NIR spectroscopy from laboratory to industry with fit-for-purpose NIR analyzers. This initiative creates a solution that migrates process analysis from the lab into production and directly measures points in product manufacturing. Antaris NIR analyzers share the same software, qualification tools, method tools, and support. All Antaris NIR Analyzers use state of the art NIR technology.
|
|
|
|
|
|
The award winning MATRIX™-F is a new generation of Fourier Transform Near Infrared (FT-NIR) spectrometer. It is the first industry hardened FT-NIR system that can directly withstand harsh environments. This instrument incorporates state-of-the-art optics for outstanding sensitivity and stability, in a compact package. Its innovative design provides consistent high quality results, less downtime, direct methods transfer and the possibility of new applications that less sensitive and precise instruments are incapable of. In addition, the same instrument can go directly from the lab to the factory, eliminating the need for a new instrument when your method is ready for integration into your process control system. Full support of industry standard communication protocols make integration simple.
MATRIX™-F is the complete solution for all your process FT-NIR needs, from Raw Material Identification to Quality Control of your finished products. Utilizing the built-in and external multiplexer options up to 48 reactions can be monitored by a single instrument. A wide range of probe adaptations are available for determining analytic concentrations in liquid and emulsions in addition to powders and pellets.
The MATRIX™-F is also at home in the laboratory. It can be used as a standalone system for method development and then move directly into your process application. The MATRIX™-F and its peripherals are individually enclosed modules designed to easily fit into standard 19 inch racks and enclosures. This allows you to completely customize your process control system, as the modules can be used as standalone units or mounted within a single enclosure.
|
|
