World first: The M70 Series
The new M70 Series from Mitsubishi Electric sets new industrial standards for the next generation of machine tools. An essential characteristic of the controller is its user-friendly operation, applying equally to setup, programming or daily use. Powerful programming tools such as NAVI MILL and NAVI Lathe assist in rapid program writing. In addition, the M70 Series offers new functions, which allow an even higher speed and level of precision of the machine tool. That results in short machining times and a high level of precision in the workpieces.
With the NC Designer, customised screen displays are simple and quick to produce. The development tool, which is also available for the M70 Series, supports the creation of individual displays without any programming or with C programming.
|
|
|
|
|
|
Haas CNC Control
Triple, 32-bit Processors
In an independently published market survey industry professionals rated the Haas control as the most user-friendly control they have worked with.
Haas designs and builds its own CNC system – both hardware and software – optimized specifically for Haas machine tools. This system uses three high-speed Motorola processors – allowing servo loop calculations to be performed 4,000 times per second for each of six motors, and providing up to 1,000 blocks per second of program execution speed.
Battery-powered static RAM is dedicated exclusively to program storage. Options of up to 16 MB are available for handling large files or archiving jobs on the machine. Unlike a PC’s dynamic RAM, which only retains memory while power is turned on, battery-powered static RAM retains changes instantly and permanently. In addition to RAM program storage, other storage options available include floppy disk, Ethernet connectivity and hard disk storage of up to 20 GB.
All Haas controls also come standard with a high-contrast, color TFT LCD display, and they’re available with Haas’ new Intuitive Turning System or Intuitive Milling System software. This software guides the operator through basic machine functions and machining operations using a single tabbed screen – all without knowledge of G code.
Dedicated, Closed System
Haas controls are robust and dependable, easy to use and integrate seamlessly with the machine. Haas closed system is not reliant on PC-based controls or third-party NC suppliers. When you invest in a Haas, you get a company that takes full responsibility for the entire machine.
|
|
|
|
|
|
M60S CNC series: most advanced hardware performance in the industry
Mitsubishi’s M60S CNC series delivers the most advanced hardware performance in the industry. Powerful 64-bit CPUs make it easy to configure maximum-efficiency networked production systems. Additional Ethernet and CC-Link support functions make it possible to use high-speed data servers and integrate a wide range of other factor automation products. The M60S series enables exceptionally flexible machine design, opening up new possibilities in the CNC field.
CNCs designed for global markets
These user-friendly CNC units include user interfaces in a choice of 12 major languages. Their exceptional programming functions and compatibility make it very easy to integrate them in a wide range of factory automation products.
Benefit from the Mitsubishi’s many years of experience in CNC technology
High-performance, 64-bit RISC processors enable the development of extremely efficient applications. The high-speed and high-precision functions of the M60S CNC series make high-speed machining a reality in tool and mould making applications. The units also have a very wide range of powerful functions for turning applications.
|
|
CNC - control
Fitted with an MS Windows standard PC, a fully digital CNC controller, digital CNC axes, as well as digital AC servo motors, STM systems ensure precise background control of safety management, axis positioning and SPS input/output management. The benefits are plain-text malfunction management, a high-speed CNC controller for low-vibration axis positioning, as well as a 10/100/1000 MBit network connection for easy data management.
* Preparation of the trace data
* Synchronization of the Z-axis in real time
* Backlash compensation
* Spindle slope, and error compensation
* Circular interpolation
* Integrated PLC (Programmable Logic Controller) for the monitoring of the safety management system and the inputs and outputs
* Integrated standard PC to prepare the data and software for Windows NT / 2000 / 95 / 98 / Millennium
|
|
|
|
|
|
ABAMATIC 1
- modular microprocessor control
- user-friendly, manual and automatic grinding are possible
- digital position read-out on large LCD
- electronic handwheel for automatic and manual operation
- graphic-assisted input of workpiece data or teach-in process
- manual infeed also possible in automatic mode
- infeed either on one or both sides
- error messages in plain english text
- constant cutting speed control (optional)
- remote diagnosis (optional)
- automatic program sequence with roughing, finishing and
spark-out
- automatic compensation of the dressing infeed and the
wear on the grinding wheel
- Digital position read-out on large LCD.
- Electronic handwheel for automatic and manual operation.
- Graphic-assisted input of workpiece data or TEACH-IN
process.
- Manual infeed also possible in automatic mode.
- Infeed either on one or both sides.
- Error messages in clear text (ENGLISH).
- Constant cutting speed control (optional).
- Remote diagnosis (optional).
- Automatic program sequence with roughing, finishing and
spark-out.
- Automatic compensation of the dressing infeed and the
wear on the grinding wheel.
|
|
3 Axis CNC controller, 5.7" LCD screen and 30 key Keypad
Price: GBP 400.00
* 3 Servo axis control (+/-10V analogue outputs)
* 5.7" colour LCD display large text and animated machine functions
* 16 Digital Inputs and 16 Digital outputs
Applications:
* Drilling machines
* Feed roll punch press machines
* Cutting machines
* Tube former machines
* XY tables
* XYZ robots
* Special purpose machines
Etc.
There are many other applications where we have used our controller. For more detalis contact us.
|
|
Navigator to Ultimate Comfort and Performance: Mitsubishi CNC E60 series
NEW EZMotion-NC E68
EZMotion CNC E60 Features
· Compact CNC (Panel-in structure) with integrated control unit
· High-performance CNC with 64-bit CPU
· Compact servo motors with high-resolution position encoders
· Quick selection of turning or milling modes in initial setup screen
· Analog output for the spindle’s frequency inverter drive
· All CNC data is stored in CASSETTE MEMORY hardware
E68 Features
· 8.4“ colour LCD display
· Front IC card I/F (optional)
· Compact panel-in structure
· Max. CNC axles: 4
· Max. spindles: 2
· Enhanced PLC capabilities
· Multi-language display
Customizable Screen Display
The sign-on screen is customizable. The screen display can be designed on a PC using bitmap editing software.
Advanced PLC Development Tools
PLC programming is performed with GX Developer, the development software package of the MELSEC PLC series.
|
|
Discover a new experience in CNC technology. The Mitsubishi CNC control series enable productivity lead and revolutionize Industrial Automation.The high-speed design of the Mitsubishi CNC series fulfils all future requirements of performance and working accuracy.
High Speed
High Performance
High Precision
These are only some of the characteristics which considerably increase your productivity.
M700
The M700 series is Mitsubishi’s new flagship CNC controller line and it brings significant new dimensions of power and user-friendliness to CNC applications. The advanced nano technology of the M700 series is supported by a high-speed servo bus for world-class machine performance.
M60S
The M60S Series CNCs offer greatly improved processing capabilities, high efficiency, and high precision machining capabilities in a compact unit.
Magic
plug in card for an IPC or PC
C6 / C64
cost-efficient control of manufacturing cells, transfer machining lines, and rotary index machines
|
|
|
|
|
|
M700 Series - Mitsubishi’s new flagship CNC controller line
The M700 series is Mitsubishi’s new flagship CNC controller line and it brings significant new dimensions of power and user-friendliness to CNC applications. The advanced nano technology of the M700 series is supported by a high-speed servo bus for world-class machine performance.
New CNC architecture for maximum processing speed
The power of the CNC M700 series is enhanced by a brand-new RISC CPU and high-performance ASICs.
Full nano control for maximum precision machining
Full nano control combined with the innovative SSS (Super Smooth Surface) and OMR (Optimum Machine Response) features enables the M700 series to deliver truly exceptional machining quality.
Simplified operation and drastically faster setup times
The new, user-friendly CNC display makes all operations easier, from initial setup to production. In addition to this the M700 series supports new functions for checking machining in 3D and visualising machine statuses for even easier operation.
|
|
The TNC Controls for Milling Machines and Machining Centers:
Form a complete product line with their various features
Control machines with up to 13 axes
Their plain-language programming capability is suited for the workshop floor
Can also be programmed externally
Are also suited for automated production
Are the correct choice for everything from simple milling procedures to high-speed milling
The MANUALplus 620 - Contouring Control for Lathes:
As a cycle control, it combines simple operation with the productivity of a CNC.
Enables the familiar manual production of simple workpieces
Produces difficult workpieces automatically
Supports programming with many cycles
Performs complementary milling and drilling operations in a single clamping
|
|
|

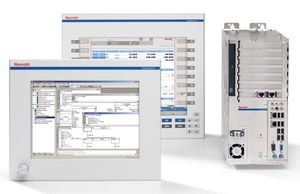

Rexroth IndraMotion MTX is the individually scalable CNC platform with integrated PLC for successful machining and forming designs. Excellent performance data and comprehensive technology functions open new horizons for maximum productivity and flexibility.
|
|
|
|
|
|
Power M (16 axis numeric controller)
It represents the TOP of the range of controllers “All in one” produced by Tex Computer and based on an owner operative system Real Time Multitasking implemented on a processor RISC 32 bit which includes editor ASCII and compilation functions.
It’s available with LCD display 8,4” or 15”, with or without touch screen, possibility to connect in Ethernet and manage axis through interfaces:
• Analog: +/- 10V
• Digital: PWM o Step / Direction
• FieldBus: CANopen (DS402) and soon EtherCAT
PLC/CNC/HMI tasks programming in structured language and the possibility to execute complex axis interpolation functions make this product suitable to manage automatic machines with high productivity and robotics.
It’s available with classic ISO program which can be personalized in order to make it more user friendly and functional to the application.
You can also connect a digital telecamera to the controller which allows the user to control working in dangerous and not so easy to reach areas not.
|
|
World first: The M70 Series
The new M70 Series from Mitsubishi Electric sets new industrial standards for the next generation of machine tools. An essential characteristic of the controller is its user-friendly operation, applying equally to setup, programming or daily use. Powerful programming tools such as NAVI MILL and NAVI Lathe assist in rapid program writing. In addition, the M70 Series offers new functions, which allow an even higher speed and level of precision of the machine tool. That results in short machining times and a high level of precision in the workpieces.
With the NC Designer, customised screen displays are simple and quick to produce. The development tool, which is also available for the M70 Series, supports the creation of individual displays without any programming or with C programming.
|
|
Z32WRT Compact
Competitive price, High Speed, User Friendly
In a single PC, at a competitive price, the CNC Z32 and the powerful software "Z32 for Windows" for managing and setting up the machine.
The Z32WRT CNC comes with a SVGA 15" touch screen video panel, for the maximum machine operator confort.
Ideal for High-Speed Machining of complex surfaces generated by CAD/CAM, where other that high speed and super-finishing, the friendly and powerful human-machine-interface is very important.
The operative system of the Z32WRT is "Windows XPEmbedded".
The choice of the Embededd version permits to modify the system behaviour in order to avoid corruption of operative system files in case of sudden loss of power supply.
|
|
Mazatrol Matrix
The 6th generation conversational CNC control from MAZAK
MAZATROL, the first conversationally programmed CNC system in the world, was introduced in 1981.
In 1998, the MAZATROL was fused with a personal computer that incorporated our extensive expertise for unsurpassed operating efficiency...
The newest model, the MAZATROL MATRIX, has been designed to be the optimum system for machine tools, offering a range of Intelligent Functions for increased productivity and ease of operation.
|
|
Compact CNC controllers:
The compact CNC controllers 903 and 905 represent an economical solution for simpler applications with one channel and up to 8 axes. The cost-efficient controller is suitable for automation devices, handling systems, drills and milling machines, lathes, processing machines, grinding machines, and many other applications.
Modular CNC controllers:
The modular individual CNC controllers are predestined for multi-axle and multi-machine applications for up to 8 channels and up to 320 CNC axes. Since they are tailored to the application, the controllers are only as large and complex as required. The open and scalable system can be expanded at any time. All conceivable controller tasks can be covered with the modular CNC controllers, such as turning, milling, grinding, fitting, bending, using laser beams up to the use of special-purpose machine tools.
|
|
The compact NC for machining centres
Two operator interface versions:
Pentium 4, 2.8 GHz min
Microsoft Windows XP Professional
80 Gb disk,
512 MB RAM
Integrated high performance graphic interface
Integrated Ethernet interface 100 Mb/s (RJ45 only)
Operator's panel with integrated 12" TFT monitor
keyboard, pushbutton panel and mouse
3.5" floppy disk drive
CD-ROM
Dedicated PowerPC CPU for machine tool interface
Up to 5 interpolated axes with optional RTCP
Gantry, tandem, anti-backlash and synchronous axes management.
Interface for:
analog drives
Siemens digital drives
Indramat digital drives
CAD/CAM 2D 1/2 ISOGRAPH and CAM 3D HI-MILL
|
|
|
With OpenCNC® or WinMotion® open- architecture software loaded on a compact, rugged platform, MDSI's new FlashCNC and FlashMotion solutions offer the best of both worlds. The freedom of open architecture integrated with industrial grade controls. FlashCNC and FlashMotion combine MDSI's innovative and industry- leading high- speed software, compact rugged hardware, NEMA rated, and digital machine interface into a complete control package. It's convenient, user friendly, easy to integrate - and it saves you time and money.
|
|
|
|
|
|
For 50 years, machinists have trusted ACU-RITE to provide affordable, practical solutions to the challenges they face every day. That tradition continues with MILLPWR by ACU-RITE, a versatile 2- or 3-axes control/3-axes readout system that satisfies the need for both manual and automated operations for milling machines.
Fueled with POWERFUL DC Servo Motors, MILLPWR has the ability to run G-code files from CAD/CAM programs for Full 3-D Contouring. MILLPWR can also translate DXF files directly into program code. Machinists have the ability to easily transform a manual mill into a powerful CNC control system while never losing manual milling capabilities.
Whether you're working in a small job shop or a large manufacturing facility, MILLPWR is equipped with the features you need to become more competitive.
MILLPWR will enable you to:
Set up jobs faster
Perform milling operations more easily
Create, and then save, part programs
Prevent math errors
Minimize scrap
Improve each part's accuracy and repeatability
Backed by a comprehensive 1 year warranty, MILLPWR is designed and manufactured in the United States at ACU-RITE's ISO 9001 registered facility, with worldwide support provided
|
|
Fagor Automation offers the widest and most complete range of products and provides a complete solution for governing all kinds of machine tools from the simplest to the state-of-the-art.
Fagor CNC systems as well as the servo drive systems, motors and accessories excel by their friendly, simple and intuitive operation.
Thanks to FAGOR conversational models, you will be able to respond to any of your needs with absolute efficiency. They are especially designed for unitary machining jobs. Their interactive programming only requests the machining conditions and the geometry data indicated on the blueprint. They do not require specialized programmers.
|
|
Processes and quality standards are becoming increasingly complex and demanding, requiring industrial automation systems capable of providing much more detailed information on the control processes for plant and machinery.
Mitsubishi Electric provides a broad spectrum of operating and visualisation systems, ranging from simple text-based HMI panels to full-featured industrial PCs. The series include text-based HMI panels, graphical HMI panels, HMI panels with function keys, HMI panels with touch screens and industrial PCs in a variety of different versions.
|
|
|
|
|
|
M60S CNC series: most advanced hardware performance in the industry
Mitsubishi’s M60S CNC series delivers the most advanced hardware performance in the industry. Powerful 64-bit CPUs make it easy to configure maximum-efficiency networked production systems. Additional Ethernet and CC-Link support functions make it possible to use high-speed data servers and integrate a wide range of other factor automation products. The M60S series enables exceptionally flexible machine design, opening up new possibilities in the CNC field.
CNCs designed for global markets
These user-friendly CNC units include user interfaces in a choice of 12 major languages. Their exceptional programming functions and compatibility make it very easy to integrate them in a wide range of factory automation products.
Benefit from the Mitsubishi’s many years of experience in CNC technology
High-performance, 64-bit RISC processors enable the development of extremely efficient applications. The high-speed and high-precision functions of the M60S CNC series make high-speed machining a reality in tool and mould making applications. The units also have a very wide range of powerful functions for turning applications.
|
|
|
|
|
|
Tool and process monitoring system
The autonomous CTM system (Computer integrated Tool and Machine monitoring) from ARTIS can be integrated into the CNC and is used to monitor tools, machines, and processes.
It features:
Fast integration resulting from minimized hardware and fieldbus technology
Simple, fast installation of software
Omission of all additional wiring and cabling with the sensor-free solution
Four independent monitoring channels on one CTM card
Autonomous mode of operation, thus minimum load on the control
System and sensors from a single source
Operator control of CTM as well as visualization can be integrated into the user interface of the CNC. Operation is clear, informative and easy to master following a short period of training.
Tool monitoring prevents the production of faulty parts or the occurrence of other damage resulting from worn, broken, or missing tools. Bearing damage on motor spindles, tool unbalance and collisions are detected by the machine monitoring functions. The functions for process monitoring are responsible for observation of quality criteria, for example, the tolerances of tap-drill sizes and thread depths.
|
|
Economical milling machine packages
Fits most popular knee-type milling machines
2- and 3-axis packages available
Display includes bolt hole calcualation
Selectable resolutions are 0.0002", 0.0005", or 0.001"
All brackets and hardware included for quick, easy installation
Display: LH51. Scale: SJ700.
|
|
|
The Delta Tau PMAC NC controllers incorporate the power of our controllers into an industrial package. The package is designed as a retrofit to an existing machine or as a control package for new machines. With over 10 years of development, it is a cost-effective, solid, powerful, and most of all flexible control for NC equipment. Need custom G-codes, logic program, tool changer, etc? Don't pay for it, do it yourself with our standard development tools! The PMAC NC is packaged with our NC software, operator controls, PMAC controller, NC computer, industrial enclosure and development software.
|
|
|
The Delta Tau PMAC NC controllers incorporate the power of our controllers into an industrial package. The package is designed as a retrofit to an existing machine or as a control package for new machines. With over 10 years of development, it is a cost-effective, solid, powerful, and most of all flexible control for NC equipment. Need custom G-codes, logic program, tool changer, etc? Don't pay for it, do it yourself with our standard development tools! The PMAC NC is packaged with our NC software, operator controls, PMAC controller, NC computer, industrial enclosure and development software.
|
|
|
The FAGOR 8070 CNC control was designed to exceed all CNC performance expectations all within a versatile easy to use Windows XP platform. The control of position, velocity, acceralations and collisions prevents undesired machining & helps achieve unmatched part finish and maximum performance from the machine without compromising the speed due to smart algorithms and extremely fast block processing speed. The Fagor 8070 CNC is the perfect answer for High speed mold and die operations, mulitple cell machines and even applications requiring 3rd party software integrated into the CNC.
|
|
Fagor Automation offers the widest and most complete range of products and provides a complete solution for governing all kinds of machine tools from the simplest to the state-of-the-art.
Fagor CNC systems as well as the servo drive systems, motors and accessories excel by their friendly, simple and intuitive operation.
Thanks to FAGOR conversational models, you will be able to respond to any of your needs with absolute efficiency. They are especially designed for unitary machining jobs. Their interactive programming only requests the machining conditions and the geometry data indicated on the blueprint. They do not require specialized programmers.
|
|
Discover a new experience in CNC technology. The Mitsubishi CNC control series enable productivity lead and revolutionize Industrial Automation.The high-speed design of the Mitsubishi CNC series fulfils all future requirements of performance and working accuracy.
High Speed
High Performance
High Precision
These are only some of the characteristics which considerably increase your productivity.
M700
The M700 series is Mitsubishi’s new flagship CNC controller line and it brings significant new dimensions of power and user-friendliness to CNC applications. The advanced nano technology of the M700 series is supported by a high-speed servo bus for world-class machine performance.
M60S
The M60S Series CNCs offer greatly improved processing capabilities, high efficiency, and high precision machining capabilities in a compact unit.
Magic
plug in card for an IPC or PC
C6 / C64
cost-efficient control of manufacturing cells, transfer machining lines, and rotary index machines
|
|
Navigator to Ultimate Comfort and Performance: Mitsubishi CNC E60 series
NEW EZMotion-NC E68
EZMotion CNC E60 Features
· Compact CNC (Panel-in structure) with integrated control unit
· High-performance CNC with 64-bit CPU
· Compact servo motors with high-resolution position encoders
· Quick selection of turning or milling modes in initial setup screen
· Analog output for the spindle’s frequency inverter drive
· All CNC data is stored in CASSETTE MEMORY hardware
E68 Features
· 8.4“ colour LCD display
· Front IC card I/F (optional)
· Compact panel-in structure
· Max. CNC axles: 4
· Max. spindles: 2
· Enhanced PLC capabilities
· Multi-language display
Customizable Screen Display
The sign-on screen is customizable. The screen display can be designed on a PC using bitmap editing software.
Advanced PLC Development Tools
PLC programming is performed with GX Developer, the development software package of the MELSEC PLC series.
|
|
|
|
