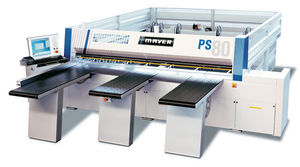

Board divide center Logicut. New screen operating with touch screen.
Type 2000
cutting length on request |
|
FOR DEMANDING PROFESSIONAL WOODWORKERS AND SMALL TO MEDIUM INDUSTRIES
SC 450, NEW CIRCULAR SAW WITH TILTING BLADE FROM CASADEI
SC 450 is the new circular saw from CASADEI, a well known and long-established company which boasts broad experience in the woodworking machines field.
Simple, fast and precise SC 450 is offered as a solution either for demanding professional woodworkers or for small to medium industries.
The CASADEI SC 450 circular saw mounts a brand new sliding table with a sliding system running on ground and hardened steel guides, fixed through a mechanical bending system where no glue is used. The on-off switches for the blades can be integrated, as option, into the sliding table end: this guarantees a more functional use, especially during the panel loading operations.
The sliding table can be locked in any position along its length.
Furthermore the sliding table mounts a large-size squaring frame supporting work pieces, which is easy to remove in case of smaller size work pieces machining.
The SC 450 is equipped with a new cast iron saw unit, which slides vertically on smooth and precise round bars system.
The saw unit can tilt up to 45° on two solid cast iron trunnions, in the shape of a crescent.
The main blade maximum cutting height is up to 150 mm, even for solid wood machining, and can cut at 3 speeds: 2500-3500-5000 revolutions per minute.
Upon request, this CASADEI machine can be equipped with an electronic programmer controlling all the axis:
- saw blade lifting and tilting
- parallel fence adjusting
- scoring blade lifting and alignment |
|
Universal combined machine 350 mm
Elite Serie: the Combined Machines for the professional woodworker. Technology, design, innovation and quality: 100% made in Italy. The Universal Combined Machines of the Elite Serie represent the TecnoMax solution for the handcrafts who are looking for a compact machine without renouncing a top quality end product. The rapid machining changeover, the possibility to compose the machine according to the ones requirement, and the same performance of the single-machining models are the main qualities which characterize this new range.
The new saw unit is made of a strong cast-iron structure. It is tightly fixed under the table and can be tilted by means of two side supports (trunnions): these solutions grant sturdiness, rigidity and a perfect cutting result. Furthermore, on request, the unit can be equipped with scoring unit for an optimal cutting even on upgraded panels. The sliding table is made from extruded anodised aluminium with a closed, honeycomb structure. The carriage runs on an exclusive slideway system consisting of guides made from calibrated and hardened F550SX steel. The spindle moulder unit is designed to provide the maximum stability and rigidity under all working conditions. Top performance features include: a large-size, cast-iron moulder spindle; a large distance (230 mm) between the two bearings on the moulder spindle; the possibility to mount tools at a minimum distance (5 mm) from the first bearing. |
|
Cuts up to 8 in (200mm) in Thickness
Precision Tolerances to +/-0.002 in (0.05mm)
Surface Finish to 20 micro-inch (0.5 micro-meter)
Fast Set Up and 650 Part Memory Allen-Bradley 1394 AC
Motion Control System
Touch Screen Controls
Optimize Cutting With a PC Based Windows Program
Stack Material Vertically and Horizontally to 8in (200mm)
Load Material from Front, Back or Topy |
|

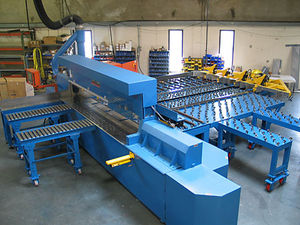

Fully automatic sawing system
up to 6" thick material
Cuts all types of Ferrous Metals
Flood Coolant
50 HP Arbor with Variable Motor
Precision Tolerances to +/-0.0007
Surfaces Finishes to 16 Micro-inch
Hydraulic Clamping on both sides of cut
Eliminate subsequent machine of cut parts
Fast set up and part number memory
Rapid sawing speeds
Full size touch screen operato interface
PLC Controls by Allen Bradley PLC
Easy Blade Change |
|
Fully automatic sawing system
4" to 12" thick material
30 or 50 HP Arbor Motor
Precision Tolerances to +/-0.002"
Surface Finishes to 8 Micro-inch
High speed close tolerance cutting
Eliminate subsequent machine of cut parts
Fast set up and part number memory
Rapid sawing speeds
Full size touch screen operator interface
PLC Controls by Allen Bradley PLC
Easy Blade Change |
|
| ... products without technical information |
| |
| Programmable Gantry System provides coordinated motion in two axis. Can be easily programmed to repeat any contour or pattern for either cutting or welding applications. |
|
SteelTailor B -- the bench type CNC cutting mahcine, is ideal for plasma cutting of medium and thin plates.
|
|
| ... products without technical information |
| |
L6 Flying Optics Laser
Finn-Power L6 laser brings sophistication in high-speed laser cutting onto a new level, creating enhanced production with superior speed, accuracy, and part quality. L6 has been designed by using innovative linear drive motor technology to allow maximum speeds, even in small notches or narrow contours. Finn-Power provides previously unseen high-speed performance with regard to machining dynamics, contour accuracy, and process safety. Finn-Power L6 will process sheet sizes up to 1565 mm x 3074 mm. With 4 kW or even 5kW of laser power, it enhances laser cutting for various material thickness and material types.
The rigid machine frame provides a solid base for stable beam delivery optics and the high-speed drive system. This unique frame design accommodates highest acceleration and deceleration rates without compromise.
FINN-POWER L6 has a compact design with the resonator and CNC built into the structure. The positioning of the shuttle tables is possible on two sides of the machine. This is beneficial when plant layout or production flow require system layout flexibility. |
|
| ... products without technical information |
| |
MAG B : Drilling punching marking and plasma cutting machine for plates
MAG B range: MAG B 320-80, MAG B 320, MAG B 620, MAG B 1225
Efficient, easy to run and flexible machines for plates
Compact line for complete machining (drilling, punching, marking and plasma cutting) of middle and high thick plates in one handling
The purely software-based solution is a new approach in which a processor carries out all automation tasks within a single-processor mode. The PC software is used for processing PLC and NC tasks.
|
|
| ... products without technical information |
| |
MAG B : Drilling punching marking and plasma cutting machine for plates
MAG B range: MAG B 320-80, MAG B 320, MAG B 620, MAG B 1225
Efficient, easy to run and flexible machines for plates
Compact line for complete machining (drilling, punching, marking and plasma cutting) of middle and high thick plates in one handling
The purely software-based solution is a new approach in which a processor carries out all automation tasks within a single-processor mode. The PC software is used for processing PLC and NC tasks.
|
|
MAG B : Drilling punching marking and plasma cutting machine for plates
MAG B range: MAG B 320-80, MAG B 320, MAG B 620, MAG B 1225
Efficient, easy to run and flexible machines for plates
Compact line for complete machining (drilling, punching, marking and plasma cutting) of middle and high thick plates in one handling
The purely software-based solution is a new approach in which a processor carries out all automation tasks within a single-processor mode. The PC software is used for processing PLC and NC tasks.
|
|
|
|
