The series A4 digital differential pressure controller is a patent pending microprocessor based pressure controller for positive, negative, and differential pressure as well as velocity and flow. The Series A4 differential pressure controller includes (2) 8A SPDT relays and an associated software package that allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display or uploaded using an OptiLink™ programming key. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate many applications. Compared to other mechanical products, the Series A4 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance at a similar price.
|
|
|
The series A3 digital differential pressure controller is a patent pending microprocessor based pressure controller for positive, negative, and differential pressure as well as velocity and flow. The Series A3 differential pressure controller includes (2) 8A SPDT relays and an associated software package that allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the LCD display or uploaded using an OptiLink™ programming key. The LCD also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate many applications. Compared to other mechanical products, the Series A3 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance at a lower price.
|
|
Electronic Digital Pressure Controller and Calibrator Type LCC 100
Ranges -1...+1 mbar, -10...+10 mbar, -100...+100 mbar or -600...+1000 mbar.
Generates and measures pressure and vacuum for testing and calibration purposes.
Li-Ion chargeable battery powered, mains supply 115...230 VAC included, as well as USB- and RS232-interface.
|
|
Air volume control equipment for VAV and CAV boxes
- In the comfort zone
- In the laboratory
- Stand-alone solutions
- Integrated solutions with bus or conventional control
- Pressure control for Line and room pressure applications
|
|
|

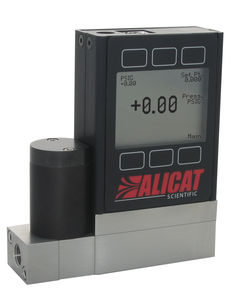

Alicat Scientific's line of digital pressure controllers offer customers precise pressure control for applications ranging from hard vacuum through 300psig. The Alicat PC series pressure controller relies on cutting edge electronics to drive a single valve that results in incredibly fast and accurate pressure control. The PC series instrument is offered with standard RS-232 digital communication as well as a choice of analog communication. Also standard is a 302 stainless body with aluminum case and digital display. The PC series device is also backed by the industry's first lifetime warranty.
|
|
|
|
|
|
KOFLOC 9100, 9100R, 9100M
The KOFLOC Auto pressure Controller MODEL 9100 SERIES is based on a type of mass flow controller that controls pressure using a pressure sensor. Capable of controlling pressure at either inlet or outlet, this unit can be used alone or in conjunctions with other mass flow controllers. The MODEL 9100 SERIES utilizes the unidirectional normally closed valve with higher dependability and safety. This valve also reduces internal dead-space. It is equipped with the vapor deposition semiconductor distortion gauge type sensor for high accuracy at 1% F.S and improved control and response at all levels. It also offers a choice of response time of either 1 s or 6 s at F.S. The lineup includes a standard high temperature option especially suited for baking process and can withstand temperature of up to 80¡ÆC.
FEATURES
- Rohs compliance - SEMI stndard connections - SUS316L stainless steel
- Unidirectional normally closed valve - Highly reliable solenoid actuator
- Compact - Free mounting position - Easy maintenance
- Wide selection of fittings, seals, wetted materials and communication interfaces
APPLICATIONS
- Bioreactor - Fuel cell - Chamber pressure regulator
- Burn control
|
|
Pressure controls serve various functions, which may be divided into control and protection functions. Examples for control functions are compressor cycling, pump-down or defrost control. Protection functions include, pressure limiting and cut out against excessive pressures, against loss of charge or for freeze protection.
Our pressure controls are equipped with display scale and pointers to indicate the approximate settings. The display scales are printed in relative pressure units "bar" and "psi". For precise setting of the controls, external gauges must be used.
|
|
The glue application controls offers time, distance or quantity-dependent control of multiple application guns. They control the type of application and which adjustments such as speed corrections are necessary.
Glue application controllers from UES make sure that the glue is optimally coated. On the production line it is very important that the products match the quality standard. Therefore an application control is necessary!
|
|
The PCD Series Digital Dual Valve Pressure Controllers are designed for applications that require a precise pressure control device with easy to integrate features specifically for dead ended applications. The PCD series pressure controller provides an RS-232 and a choice of analog output of the pressure signal as a standard feature. Alicat's P series standard digital pressure gauge electronics are integrated with two proportional control valves (a feed valve and an exhaust valve). The PCD series device was designed for applications that have a closed volume or are dead ended.
Common Applicaitons for Alicat Dual Valve Pressure Controller
• Pressure loading
• Dead ended processes
• Semiconductor processing
• CMP
• Biotechnology/Pharmaceutical
• Process Control
Benefits of Alicat Dual Valve Pressure Controller
• Accuracy +/- 0.5% of Full Scale
• Control response time of <100ms
• 200:1 Turndown ratio
• Custom pressure ranges available
Now with an industry first, lifetime warranty!
|
|
The EL-PRESS series digital electronic Pressure Meters and Controllers have a well-proven compact thru-flow design and are available in pressure ranges from 2-100 mbar up to 8-400 bar, both in absolute and relative (gauge) pressure. A differential pressure transducer can also be supplied in the ranges of 2-100 mbar up to 0,3-15 bar. The pressure controller performs with high accuracy and repeatability and should be specified for forward or backward pressure control. Todays EL-PRESS series are equipped with a diaphragm type piezoresistive pressure sensor and a digital pc-board as standard and offer high accuracy, stability and reliability. The basic digital pc-board contains all of the general functions needed for measurement and control. In addition to the standard RS232 output, the instruments also offer analog I/O. As an option, an integrated interface board provides DeviceNet, PROFIBUS-DP, Modbus-RTU or
FLOW-BUS protocols.
|
|
WITT Regulators for pipelines, Outlet points and High Flow Application. The design allows constant flow over the whole pressure range even with flow fluctuation on the inlet side.
Benefits
- applicable for almost technical gases
- inlet pressures up to max. 200 bar
- regulating from 100 mbar up to 60 bar
- process reliability by high pressure stability in case of withdrawal fluctuations
- high flow rate
- compact design, small mounting dimensions
- warranted high reliability by integrated inlet filter (without 737LE ND)
- integrated pilot pressure and manometer connections
- remote control by extern pilot pressure regulator or proportional valve
- several gas supply can be central regulated to the same working pressure
|
|
|
The Type-700BP Back Pressure Regulator is a high flow, highly accurate pneumatic relief valve with an adjustable set point. It's primary function is to provide protection against over pressurization in the downstream portion of a pneumatic system. This precision unit is capable of handling flows up to 50 SCFM. A rolling diaphragm provides the sensitivity that causes the Type-700BP to vent to atmosphere in response to the slightest upstream changes.
|
|
26-1700 Series: Versatile
Extremely sensitive
Ideal for both gas & liquid service
High temperature versions available
Accuracy: ±1% of relief pressure range
26-2300 Series: High Accuracy
Precise pressure control
Diaphragm sensed - highly sensitive
Crack to reseat: 2% of set pressure
Bubble-tight shutoff at all reseating pressures
26-2500 Series: High Flow
Large diaphragm for excellent sensitivity
Bubble-tight shutoff at all reseating pressures
1/2", 3/4" and 1" NPT inlet and outlet port sizes
26-2900 Series: Tracking
High Flow
Negative spring bias
Designed for BIBS application
Diaphragm sensed - highly sensitive
44-2300 Series: Economical
Hand adjustable
Diaphragm sensed
Dome loaded
Four relief pressure ranges
44-4700 Series: Sub-atmospheric
Metal to metal diaphragm assures minimum inboard/outboard leakage
Controls sub-atmospheric to positive pressures
High flow capacity
Negative spring bias
|
|
|
The Type 350/360/370SS series of stainless steel regulators, filter regulators and filters are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon diaphragm construction make the 350/360/370SS compatible with sour gas and adaptable to off shore environments. This quality instrument is economical to buy as well as operate, and provides extremely stable and repeatable control of gas pressure. Oversized valving helps the unit achieve high flow rates with minimal pressure drop.
|
|
44-2200 Series: General Purpose/Compact-Reducing
1/4" inlet and outlet ports
Diaphragm sensed - highly sensitive
Various trim options available
44-2600 Series: General Purpose/Large Diaphragm
Increased sensitivity, minimal droop
Repeatability: ±1/2% of outlet pressure range
Accuracy: ±1% of outlet pressure
44-2800 Series: Accurate/Positive Seal-Reducing
Mechanical link between diaphragm & main valve prevents pressure creep
Positionable captured vent bonnet
44-3400 Series: Two Stage-Reducing
Decaying inlet characteristic: .04 per 100 PSIG inlet pressure change
Various trim options available
|
|
Pneumatic Controller
With more than one million BARTON DPU-based instruments in service around the world today, Cameron's Measurement Systems division is a premier supplier of reliable and accurate chart recorders, indicators, switches and pneumatic controllers. Originally developed in the early 1920s, our differential pressure technology features a welded bellows assembly that increases accuracy while dramatically reducing the effects of wear. To facilitate quick and easy repairs all DPU based instruments are supported with pre-calibrated exchange or repaired sub-module bellows assemblies.
|
|
26-1100 Series: High Flow Cv=1.3 or .46 - Reducing
Diaphragm sensed - highly sensitive
Modular construction - easy service
External sensing available for improved accuracy
Balanced main valve increases seat life
26-1200 Series: High Flow Cv=3.3 - Reducing
Similar to 26-1100 with higher flow capacity
44-4200 Series: Economical
Dome loaded
Piston sensed - highly reliable
Compatible with TESCOM electronic pressure controllers
|
|
The Type-9OOX l/P, E/P transducers are a series of compact electronic pressure regulators that convert an electrical signal (current or voltage) to a proportional pneumatic output. Utilizing internal solid-state feedback circuitry, the Type-9OOX provides precise, stable pressure outputs to final control elements. Immunity to the effects of vibration or mounting position, high tolerance to impure air, and low air consumption make this unit ideal for use in demanding applications.
The heart of this unique technology is a bimorph piezo actuator that is encapsulated in a protective skin. This protective skin provides defense against the humidity and contaminants often found in process operating environments.
|
|
|
The Type-550X is an electronic pressure regulator that converts a variable signal (current or voltage) to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained. This economical instrument provides precision air pressure regulation to actuators, valves, positioners and other final control elements. An integral volume booster provides high flow capacity, increasing control speed in critical applications.
|
|
|
|
|
|
VAV control, 90° quarter turn actuators and differential sensors, explosion proof
Electrical, explosion proof quarter turn actuators series ExMax and RedMax, for VAV dampers, from 5 Nm to 100 Nm, in acc. with ATEX 94/9/EC for installation in hazardous areas zone 1, 2, 21 and 22, for all kind of gas, vapours, mixtures and dust. Actuators with or without fail safe spring return function. 24 to 230 VAC/DC multivoltage supply, 5 motor running times adjustable on site, on-off, 3-pos, 0...10 VDC, 4...20 mA mode, 100 % overload protected. Robust aluminium housing with IP 66 protection, optional stainless steel version, integrated heater for use from -40°C to +40°C/+50°C, cable connection, approx. 1 m cable, manual override, squared shaft connection 12 × 12 mm (size S) and 16 × 16 mm (size M). Series ExMax-... for use in zone 1, 2, 21 and 22. Series RedMax-... for use in zone 2 and 22. Optional accessories like external adaptable aux. switches, terminal boxes and mounting brackets available.
Differentail pressure sensor series ExCos-P and RedCos-P, in acc. with ATEX 94/9/EC for installation in hazardous areas zone 1, 2, 21 and 22, for all kind of gas, vapours, mixtures and dust. 24 VAC/DC supply, measuring ranges +/- 100 Pa, +/- 250 Pa,+/- 600 Pa,+/- 1250 Pa,+/- 2500 Pa,+/- 5000 Pa, +/- 7500 Pa. Series ExCos-P for use in zone 1, 2, 21, 22. Series RedCos-P for use in zone 2, 22.
|
|
20-1000 Series: Compressed Natural Gas
Balanced main valve minimizes inlet pressure fluctuations
Piston sensed – highly reliable
Water heat jacket standard
20-1200 Series: High Pressure Hydrogen
Nickel-plated aluminum
Large piston sensor
All regulators tamper-proof
20-1400 Series: High Flow / Low Pressure
Diaphragm sensed – highly sensitive
Dome load spring bias ± 2 PSIG
Captured bonnet design for safety
44-6000 Series: In-Line High Pressure
Balanced main valve design
Positive shutoff seal
Captured bonnet available
Patent pending
44-7400 Series: Pressure Reducing
Ideal for CNG dispensing applications
Several porting configurations available
Spring adjust, high outlet, high flow
|
|
|
|
|
|
The gas pressure regulators (RTP) are designed to reduce natural gas pressure from medium to low one, and to keep the gas pressure rate independent on input pressure and flow changes. The regulators are suitable for domestic as well as for industrial installations.
Description
Single stage
Single stage gas pressure regulators have diaphragm - spring single stage pressure regulator with the lever system control element.
Double stage
Double-stage gas pressure regulators have two stages of pressure reduction, both with diaphragm-spring control.
The RTP gas pressure regulators are equipped with the following safety devices:
* The over-pressure and under-pressure shut-off
* The relief valve
Our regulators meet requirements of standard EN 12 279
We are producing various versions and sizes, as an example we are presenting double stage regulator
RTP 10-M..-..
Technical data
Inlet pressure: 0,1 - 0,5 [MPa]
Adjusted output pressure: 2 [kPa]
Regulation deviation: ¡À0,1 [kPa]
Outlet pressure at no consumption: max 2,6 [kPa]
Safety pressure: 3 - 0,1 [kPa]
O.P.S.O.: 4,5 [kPa]
U.P.S.O.: 1 [kPa]
Volumetric flow: 10 [m3/h]
Volumetric flow: 10 [m3/h]
Relief valve size: Rp 3/8 [inch]
Weight: 1,12 [kg]
Ambient temperature range: -30 to +60 [¡ãC]
Response time: ¡Ü 5 [s]
|
|
R230
high sensitivity
many options and pressure ranges, G1/4
outlet 0 - 0.15 / 28 bar, 900 l/min
|
|
|
The Type 700 is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilizing a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity.
|
|
44-2600 Series: General Purpose/Large Diaphragm
Increased sensitivity, minimal droop
Repeatability: ±1/2% of outlet pressure range
Accuracy: ±1% of outlet pressure
44-3200 Series: High Flow/Purge
Ideal purge regulator
High pressure inlet version incorporates a balanced main valve to minimize inlet pressure fluctuation
26-1500 Series: Sensitive/Non Venting-Reducing
Compact design
Elastomeric diaphragm - highly sensitive
Dome loading available
For liquid or gas service
26-1600 Series: Sensitive/Self Venting-Reducing
Elastomeric diaphragm - highly sensitive
Controls up to 500 PSIG
Dome loading available
For liquid or gas service
Works with TESCOM motorized actuator for remote control
DH Series: Low Pressure
Diaphragm sensed - highly sensitive
Excellent repeatability
Very high flows at low pressures
DK Series: Improves sensing, control & resolution at medium flows & pressures
Diaphragm sensed
Captured & segregated vent
Remote controlled
High flow capacity
Dome and air load available
|
|
54-2100 Series: High Pressure-Back Pressure
Accuracy: ±1% of pressure range
Hardened metal to metal seats for heavy duty service
Eight pressure ranges up to 15,000 PSIG
54-2300 Series: High Flow/High Pressure-Back Pressure
Control pressures to 10,000 PSIG
Flow capacity: Cv = 1.6
Excellent crack to reseat ratio
Hardened metal to metal seats for heavy duty service
54-2700 Series: High Flow/Back Pressure
Flow capacity: Cv = 5.0
Choice of dome loaded, spring loaded, or air ratio device
|
|
54-2000 Series: Low Flow/High Pressure-Reducing
Rugged design, high pressure service
Hardened metal to metal seats for heavy duty service
System pressures to 20,000 PSIG
Captured venting standard
54-2200 Series: Medium Flow/High Pressure-Reducing
High flow capacity: Cv = 2.0
Hardened metal to metal seats for heavy duty service
Self-venting is standard
54-2800 Series: High Flow/High Pressure-Reducing
Flow capacity: Cv = 8.0
Inlet & outlet pressures up to 5,000 PSIG
Choice of air ratio or dome loading
Hardened metal to metal seats for heavy duty service
26-2000 Series: High Pressure Reducing
Designed for both hydraulic and pneumatic service
Captured vent standard
Designed for heavy duty shock and vibration service
Choice of metal to metal or soft seat
Compatible with TESCOM Electronic Controllers
|
|
Pressure relief valves and pressure reducing valves
Flange-, sandwich- and screw-in cartridge construction
Nominal sizes NG3-Mini, NG4-Mini, NG6 and NG10
Screw-in cartridges in accordance with ISO 7789, nominal sizes M18x1,5, M22x1,5 and M33x2
Manual valves
Proportional valves
Maximum pressures up to 350 bar
Volume flows up to 100 l/min
|
|
The In-Line pre-set regulator must be mounted directly on the pneumatic tool or system in order to ensure correct pressure, so that possible pressure drops in hoses, tubes etc., do not influence the pressure on the tool or system it self.
The pre-set regulator supplies a constant, exact outlet pressure regardless of the inlet pressure. The pressure is factory-set and cannot be changed. This ensures that nobody can alter the specified pressure.
|
|
R160
for various media
supply max. 6 bar, G1/2 - G2
outlet 18 - 70 / 3000 mbar, 8000 l/min
|
|
|
|
