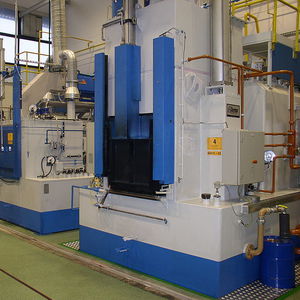

The technical design of the chamber furnace sealed quench CASEMASTER® type, introduced to the market by ELTERMA S.A. provides:
- automation of the heat treatment and heat-chemical treatment processes
- repeatability of the processes
- elimination of skin decarburization of the workload surfaces after heat treatment and heat-chemical treatment processes.
Chamber furnace with integral quenching tank CASEMASTER® is available in the following versions:
- Single door and pass-trough furnaces
- One and two-chamber furnaces
- Electrical furnace and gas fired furnace.
For the controlling of operation of the CASEMASTER® furnaces and technological lines based on them, the computer system is used which, besides its standard functionality in the heat treatment additionally realize following tasks:
– Calculation of the carbon diffusion in carburizing process in „on-line” mode
– Calculation of parameters of furnace atmosphere on the mathematical model of the chamber of the furnace
- Function of technological diagrams (current profile of concentration of carbon, expected hardness profile after hardening, current state of the process on the diagram iron - carbon and iron oxidation)
- Programming overhaul.
|
|
Technical data :
Types : 1/1050S 3/1050M
Max. Temperature : 1050°C 1050°C
Frequency : 50Hz 50Hz
Voltage : 230V 3x400V
Power : 2 kW 6,5 kW
Weight of the furnace : 116 kg 450 kg
Inside dimensions : W 85mm W 150mm
H 40mm H 60mm
D 300mm D 300mm
External dimensions : W 500mm W 850mm
(±10%) H 700mm H 1500mm
D 700mm D 1200mm
Capacity of the tank : 40 l 320 l
Equipment :
- Metallic casing containing the insulated ceramic fibre (according to directive 97/69/EC) capable of reducing the thermal losses.
- Heating chamber, sliding muffle and base in refractory steel.
- Sliding base and muffle by tilting.
- Lever arm for tilting the furnace.
- 2 regulating cocks for the gas treatment.
- Digital temperature control unit.
- Oil quenching tank made in stainless steel fitted with a funnel, extraction basket and oil drain cock.
- On demand: extraction basket made of fine grid.
|
|
Design & manufacturing of furnaces & heat treatment equipment
Bell furnaces
Treatments:
- Carburising - Water quenching, polymer,
- Austenitisation oil and/or salt
- Carbonitriding - Tempering under N2 or air
- Nitriding - Annealing
- Nitrocarburising - Washing
|
|

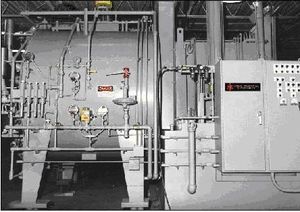

Mechanized Pacemaker Integral Quench Furnace
The Lindberg Pacemaker® is a highly productive and efficient integral-quench furnace available in either gas-fired or electric models. It is the centerpiece of a complete heat-treating system. The furnaces feature obstruction-free work chambers, large capacity re-circulation fans, and strategically located heated sources to ensure rapid heat transfer, low energy use, and excellent temperature and carbon uniformity. A size and in-out configuration is available to fit your needs.
Features / Benefits
Fully automatic movement of the load within the furnace, including quench.
Programmable logic controller eliminates sequencing circuit relay maintenance.
Temperature and atmosphere carbon potential are both automatically controlled. A two-pen strip chart records both furnace temperature and percent carbon.
Preheat oil quench with immersion heaters, temperature and excess temperature controllers, oil level sight gauge and level alarm.
Lindberg Quench Guard® quench water detection device.
Air-to-oil quench cooling heat exchanger.
Flowmeters for endothermic gas, natural gas additions, ammonia gas additions, and air for carbon burnout.
Emergency nitrogen gas purge circuit activates on power failure or loss of atmosphere.
SCR power control for electrically heated models.
Recuperative vertical radiant tubes for gas-fired models.
Applications:
Annealing
Carbonitriding
Carburizing
Tool Steel Hardening up to 1850°F
Normalizing
|
|

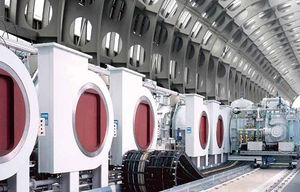

Perfect furnace for delicate gas quenching treatments thanks to the rotative cooling ensuring an excellent cooling uniformity/span>
High cooling speed
Reduction of cycle time thanks to convective heating
Fully automatic process for a perfect reproducibility of the results
|
|
Perfect furnace for delicate gas quenching treatments thanks to the rotative cooling ensuring an excellent cooling uniformity/span>
High cooling speed
Reduction of cycle time thanks to convective heating
Fully automatic process for a perfect reproducibility of the results
|
|
Multipurpose oil and gas quenching furnace with two chambers
Compact system for minimum space requirement
Gas quenching possibility allowing the treatment of huge grade of steel
Heating chamber held in temperature for important energy saving
Fully automatic handling system by deformable parallelogram and telescope
|
|
Technical data :
• Batch gross weight (kg): from 50 to more than 1000 kg.
• Height: from 300 to 1100 mm.
• Useful diameter : from 400 to 1100 mm.
• Processes : Autenitisation, carburising, carbonitriding, annealing, brazing, nitriding, nitrocarburizing.
• Temperature up to 1'050°C.
• Quenching media : water, polymer, oil max 200°C or salt max 450°C.
• Maximum configuration: several treatment furnaces and quenching tanks.
• Equipment : washing machines, oil separator, salt recovery system and tempering furnace.
Manipulator : manual, semi or full automatic.
Technical and economical advantages:
• All the processes and quenching liquids are possible.
• Perfect integration in your production flow, adaptable in any time according to the evolution of your needs.
• Easy to use in semi or full automatic.
• No time losses in processes changes.
|
|
Main use:

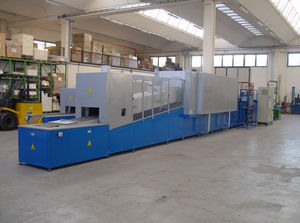

Furnaces type T are designed for continuous hardening of mass produced steel parts.
Engineered for high precision and excellent reproducibility they meet the most stringent metallurgical requirements.
Typical heat treatment applications, at temperature
up to 950 °C:
- Hardening or case hardening, i.e. gas carburizing and carbonitriding with oil or polymer quench.
- Austempering and Martempering with salt bath quench.
- SAFED OXYCAD® ontinuous nitrocarburizing process.
Hardening furnaces type T for austempering and martempering applications. The hardening furnace type T may be equipped with a salt quench tank designed for molten salt up to 400 °C.
Quench tank type GS:
The tank has thermal insulation and a heated hood over the discharge conveyor to keep parts at temperature. Heating and cooling systems are provided for heating up and holding the salt at the required temperature.
|
|

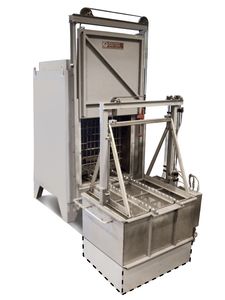

Overhead furnance with mobile quench bath
Highly felxible as regards type of charge and program switching times
High temperature uniformity
Simple handing
High efficiency
Fully automated handling possible
|
|
