Matrix R 1.4-1.6 Series, reach trucks
Matrix R2.0-2.5 Series, reach trucks
Matrix R1.6-2.00HD Series, reach trucks, with heavy duty mast
The Hyster Matrix reach truck contributes to the best warehouse space utilisation and warehouse throughput. Versatile and manoeuvrable, these trucks are perfect for putting away or retrieving pallets at height, in narrow aisles.
Powerful AC technology on traction, pump and steer motor delivers superior performance and fast turnaround. The ergonomically designed, raised operator position and advanced mast design maximise visibility when load handling, contributing to faster cycle times and superb operator productivity.
|
|
The science of productivity

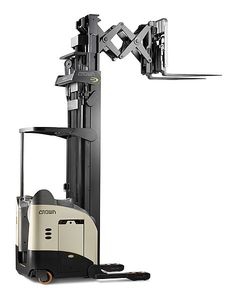

The Crown range of Reach Trucks offers the most advanced design and performance technology in the material handling industry. Features such as AC power, all-wheel braking, exceptionally rigid mast, and unmatched comfort and visibility enable the ESR 5000 Series to move more pallets per hour. The RR/RD 5700 Series pantograph reach trucks offer performance advantages combined with the flexibility of sit or stand operator mode and double-deep reach. Both series are available in load capacities to 2000 kg.
|
|
NR14 - 25N
Cat Lift Trucks’ Reach Trucks are specifically engineered to cater for a wide range of storage and retrieval scenarios.
The 10 ‘N’ generation models in standard or high performance configurations offer a comprehensive range of capabilities to manage a wide variety of applications, loads and pallet types. AC technology provides a superb power/energy efficiency ratio for effortless operation and a long working life.
|
|
Ready for a good stretch?
The Hyundai reach trucks are rugged, productive, lean-and-mean lifting machines.
Designed for the European market, it delivers optimum productivity, reliability and comfort in a robust, user-friendly package.
Prepare to go high, real high!
|
|
MR14, MR14H, MR16, MR16H, MR16N, MR20, MR20H, MR25
Capacity: 1400, 1600, 2000, 2500kg
- Reach truck
- AC technology on traction, hoist and steering motors
- PalmTech joystick control
- 360° steering
- Tilting fork carriage with integral sideshift
- Speed sensitive fly by wire steering
- Hi-lift mast to 11426mm
|
|
|
|
|
|
FM-4W
4-way reach truck
STANDARD EQUIPMENT.
The FM-4W 25 four-way truck is a universal unit, which is especially suitable for transporting long products and putting them into stock, as well as normal pallets and containers. Thanks to its four-way design it allows the economical utilisation of storage space with minimal working aisle widths.
DRIVER ’S COMPARTMENT.
- Adjustable steering wheel position with fore and aft seat adjustment allows a comfortable working position.
- Comfort seat features hydraulic damping adjustable to the driver‘s body weight as well as a tilt function (up to 15°). Seat contour shaped to give plenty of untiring support. For added safety the truck can only be driven if the foot switch is depressed.
- The clear view mast with good all round visibility and optimised view through the overhead guard give the driver a very clear optimum overview.
- Control is through four ergonomic levers.
- Comfortable, upholstered arm rest provides supports whilst operating the truck.
|
|
d 1200 EEx Zone 1
The d 1200 EEx featuring cantilever load suspension, compact design and powerful ASM drive is a particularly flexible truck. Various models are available with load capacities of up to 1800 kg.
|
|
Forte URF
Narrow aisle stacker with forks which swivel through 180 degrees.
Efficient, with high capacity in very narrow aisles and high warehouses. Free-ranging over whole warehouse.
|
|
The outstanding features of the HUBTEX ESW series 4120 fork-lift reach truck are a compact design and a most progressive technology. The ESW offers multi pack handling over conventional reach trucks to maximise stock rotation by a combination of high lifting capacities and long battery running times. The HUBTEX series 4120 with capacities from 3500 kg to 6000 kg is an alternative solution to conventional fork-lift reach trucks with restricted standardized capacities.
|
|
Forte UNS/UHS
Outstanding RSI-beating ergonomics, matchless AC-power performance, and unique facility for driver-cusomisation.
Optimum productivity and minimum downtime.
Lift heights to over 11 m.
|
|
CAPACITY: 1.5t - 2.25t
REACH & DOUBLE REACH TRUCKS
Full free-lift, three-stage mast with high-visibility, clear-view design is standard.
ITA Class II, hook-type carriage, 31" wide with 48" high load backrest.
Single, Class "H"-insulated, transistor-controlled pump motor driving direct-connected gear-type pump.
High-performance 36-volt electrical system is standard.
Selectable operator positions. Choose forward-facing, 45º, or full side-stance operator compartment position.
Electromagnetic brake mechanism is mounted directly to the top of the drive motor for increased braking power through transmission gear reduction.
Heavy-duty Class "H"-insulated, fan-cooled drive motor is transistor controlled for smooth acceleration and high speed.
|
|
Linde reach trucks lower your handling costs because we recognise that personnel costs are the highest factor.
Therefore, functional intelligent ergonomics in a superb spacious work station enable the operator to fully focus on the task in hand and to operate at the highest levels of efficiency throughout the shift. The powerful Active-drive concept in combination with the LindeLoadControl and LindeDigitalControl to adapt to each individual application.
|
|
|
With award wining designs and features, our narrow aisle lift trucks not only does the job but looks good and is operator friendly. The narrow aisle Cat lift trucks feature durable, ergonomic design and modern technology to help increase productivity in today's tight warehouse aisles.
|
|
2,500 - 4,500 lb
Electric Reach Trucks
High-flyers. If you are looking to maximize warehouse space, the N-Generation reach trucks are your best solution. Our 100% AC reach trucks operate effortlessly in aisles well below 10 feet in width, maximizing overall warehouse storage space utilization.
The N-Generation reach trucks also offer better capacity retention than counterbalanced lift trucks, permitting loads to be staged at much higher racking levels. This in turn helps improve overall cube utilization and helps reduce the cost per pallet position, lowering overall operational expenditures tied to warehousing and material handling operations.
|
|
|
|
|
|
Reach trucks are at the heart of many storage and distribution systems. BT sets the industry standard with the Reflex range. Outstanding performance, exceptional driving characteristics and a unique record of reliability in operation.
BT%u2019s Reflex family is designed to deliver the lowest possible handling cost, through the combination of high productivity, low maintenance requirements and an unrivalled reputation for reliability %u2013 with measured availability levels exceeding 99%. Reflex offers the highest acceleration, braking, and lifting performance, which is easy to program and control thanks to its intuitive man-machine interface. AC power brings low operating costs and long work cycles. A full range of truck chassis and mast configurations is available, with capacities up to 2500 kg.
For high-lift applications, BT offers the unique Reflex E-series, with tilting cab. This reduces neck and shoulder strain, and allows faster and more accurate fork positioning. For intensive work, ACi models are fitted with electronic support arm brakes, which allow a higher top speed. Designed for lower-intensity applications, the M-series has the benefit of a narrow chassis and an economical price.
|
|
General description :
Electric Narrow aisle Lift Trucks
3000 lb Capacity Electric Orderpickers
Demanding applications require a reach truck you can demand a lot from - one that performs to the highest standards, shift after shift, operator after operator. Our 24- and 36-volt reach trucks are fully-equipped with productivity-boosting features, from the spacious operator compartment to the informative operator display.
The AC drive and hydraulic system, rugged mast and display-based diagnostics are just some of the many features that help make our reach trucks reliable. If you're looking for a reach truck that's dependable and easy to maintain, while helping to keep downtime to a minimum, look to our NR3000-NS4000 series.
Model Type power (voltage) capacity (lb) top speed (mph)
NR3000 Orderpicker 24 3.000 5.3
NR3500 Orderpicker 24 3.000 5.8
NR4000 Orderpicker 36 3.000 6.1
|
|

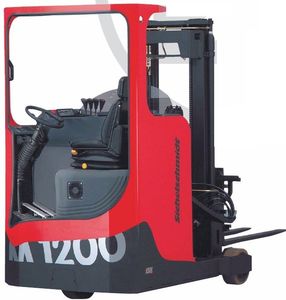

M 1200 S
If you are looking for high volume handling capabilities and superb manoeuvrability for distribution or sorting centres, the M1200, with its super elastic wheels is more than up to the job.
|
|
Thanks to their advanced, modular construction, Toyota Reach Trucks can be precisely customised to suit your specific task. A wide range of chassis, mast and battery combination means they provide even more effective, reliable operation in almost any working environment.
|
|
Single Reach and Double Reach Trucks
3,000-4,500 lbs. Lifting Capacity
Toyota 8-series Electric Reach Trucks revolutionize the way materials are handled when cube utilization is at a premium. From the versatility of the latest electronic control technology to the comfort and convenience of an ergonomically designed operator compartment, Toyota's 8-series single reach and double reach trucks represent a dramatic approach to reach truck performance and quality.
|
|
|
|
|
|
EP electric Reach Truck-H series
H series 1.2/1.4/1.6/2.0 ton Electric Reach Truck
The Reach Trucks are used wherever the space is confined and where heavy loads need to be raised to high
lift heights.
1. The drive's compartment, through generous dimensioning, provides the driver with a comfortable body
position. The excellent all-around visibility and the low noise level ease the operation.
2. The operator compartment has incorporate controls for hydraulic functions, direction control, horn, lights
and handbrake, all within convenient reach of the operator. Padded armrest, rubber floor mat and resin coated
control knobs ensure comfort for daylong operation. The tilt of the steering column can be freely adjusted to
any degree.
3. Curtis is made of Multi-function instrument, together with the multi display monitor provide information and
function input for the operator to allow optimum performance and operator confidence.
4. Drive and hydraulic control fitted as standard. MOSFET CHOPPER, Power transistors with high impulse
frequencies control the motor in an energy saving and noiseless manner. The drive control provides a jerk-free
start and a strong acceleration. Adjustable energy feedback on releasing the drive pedal through regenerative
braking.
5. The chassis design and steering geometry provide an outstanding turning radius of 1675mm and reach
stroke of 602mm (1.4 ton model). The steering angle of 90。in each direction enhances maneuverability. These
specifications ensure improved safety clearances in confined spaced with high loading.
6. Low noise, less pollution and energy saving, these features match up with environment protection
requirement.
|
|
The outstanding features of the HUBTEX ESW series 4120 fork-lift reach truck are a compact design and a most progressive technology. The ESW offers multi pack handling over conventional reach trucks to maximise stock rotation by a combination of high lifting capacities and long battery running times. The HUBTEX series 4120 with capacities from 3500 kg to 6000 kg is an alternative solution to conventional fork-lift reach trucks with restricted standardized capacities.
|
|
|
Widely recognised for their ability to get more work completed in less time, RX Series reach trucks are now stronger and better equipped to answer demanding materials handling requirements. Powerful hoist-pump and traction motors produce faster lifting and travelling speeds for greater ail-round performance while the new microprocessor controlled LCD instrument panel provides the operator with vital truck information. Available in sit-down models - with load capacities
|
|
|
|
|
|
The XR09 has been designed for high levels of productivity due to high rest capacities and narrow working aisles. All trucks are built in full compliance of the European Machine Directive.
Driving seat: ¦ Damped seat, adjustable according to the height and weight of the operator. ¦ Multipurpose Liquid Crystal Display showing information relating to the operation of the machine and the optional equipment. Standard: Battery charge indicator / Hourmeter / Selected functions / Warning lights / Drive wheel position indicator. Optional: / Forks height indicator / Pre-selector. ¦ Due to their ergonomical arrangement all electrical and hydraulic functions can be operated with ease. ¦ Visibility through the overhead guard is excellent to ensure accurate pallet placing.
Chassis: The use of robotically welded and automatically profiled material enables high quality and modern design. Detailed study of the chassis has resulted in a low centre of gravity, ensuring maximum stability in all driving and stacking manoeuvres, offering high residual capacities at maximum height.
Traction: Robust, powerful three phase motor delivering 6 kW (KB 60 minute).
Hydraulic system: Powerful three phase motor delivering 11.5 kW (ED 15%). Pump with internal gear for quiet running. Hydraulic functions calibrations due to proportional valve technology to ensure exact and easy movements. Synchronous movements are allowed.
|
|
RBN Series
Reach Truck | AC Power
1.4 - 2.5 tonnes
This outstanding reach truck range brings together a tremendous package of features that will keep your driver happy. And a happy driver is a productive driver! AC technology and advanced electronic systems combine to make all fork movement, travel and manoeuvring quiet, smooth and precise. From a spacious, comfortable operator compartment, with an amazingly clear all-round view and a host of features for the driver%u2019s convenience, the truck%u2019s power is directed via the latest in user-friendly controls and instruments.
RBM Series
Multi-Way Reach Trucks |
2.0 - 2.5 tonnes
Our multi-way reach trucks move in any direction %u2013 through a full 360-degree turn %u2013 for infinite steering accuracy and precise positioning in confined areas. They are particularly suited to operation in very narrow aisles and to handling exceptionally long loads.
|
|
Class Name：Electric forklift trucks->Electric powered reach forklift trucks
Electric Reach Truck-sit-down Type 1.6-2.0T
Model : CQD16S-B2
Load Capacity : 1600 kg
Load Centre : 600 mm
Lifting Speeds : 260/380
Standard Lift Height : 4250 mm
|
|
Lifter RTX20/70
Main features
Operation : Seated driver
Nominal load capacity : 2000 kg
Residual capacity at maximum height : 1800 kg
Free lift : 2404 mm
Lift : 7000 mm
Forks dimensions : 1150 mm
RTX20 Series
The RTX20 reach truck is a well-designed fork-lift offering extreme flexibility. The nominal load capacity is 2 t and the excellent residual loads allow the handling of heavy loads, even at high elevations. The vehicles maneuverability allows ease of use even in confined spaces. High quality components ensure that the RTX20 is suited to intense working conditions.
|
|
D100/120/150
Designed to provide operator with maximum comfort
Performance-driven components
Low emission and powerful Doosan-Daewoo DE08TS engine
Large capacity cooling system
3-speed powershift transmission
Planetary type drive axle
Fully air actuated S-cam brakes on planetarydrive axle
High-visibility mast and carriage
Fully isolated operator compartment
Light-touch hydraulic controls
Easy maintenance
|
|
|
The industry's first 4-way internal combustion forklift truck has employed innovative designs in engineering, control technology and ergonomics allowing for superior operator comfort, efficiency and maneuverability. Available in both LPG/Gas, Diesel and electric/ battery powered engines, the Combilift offers a range of lift models and capacities from 2,000kgs to 14,000kgs and lift heights to 7.5 meters.
|
|
J1.5-2.0XNT Series, three wheel, electric counterbalanced truck with front wheel drive
Get higher throughput and the lowest cost of operation for your materials handling fleet with new generation Hyster three wheel electric trucks.
The J1.5-2.0XNT series delivers class leading manoeuvrability and the best balance of energy efficiency and productivity to suit your application, with exceptionally low maintenance requirements.
|
|
The GPO-Trucks are heavy-load lifting carts with the added capabilities of a rigid chain system for horizontal transfer positioning. They are available in a variety of standard models and can be custom designed to fit individual application needs.
* die Xchange time 15 mn
* many options ans accessories
* accurate, repeatable positioning
* built-in safety mechanism, movements are monitored via optical sensors
|
|
|
|
