69-032/090-F
GENERAL CHARACTERISTICS
type of construction: with tie-rods
operation: double-acting
materials: AL tube and endcovers - NBR seals - other cementated steel
type of mounting: by means of holes in the body
type of mounting: any
Operating temperature: 0° + 50° C (with dry air -20°C)
standard rotation: 90° - 180° (others on request)
PNEUMATIC DATA
operating pressure: 0,5 -M0 bar
Fluid: filtered air, without lubrication
|
|
TORK-MATE - Pneumatic Actuators - 890 Series
The Tork-Mate 890 series extended life actuators are ideal for the operation of 90° turn devices such as butterfly valves, ball valves, plug valves, damper valves and other devices. Tork-Mate pneumatic actuators have features that are unique, providing many benefits to the user looking for worry-free service.
The Tork-Mate 890 series actuators feature pinion travel stops that allow a full /-10° of valve travel adjustment. As an option, extended stroke adjustment screws can be added for inexpensive throttling applications.
Special piston seals provide greatly extended life compared to standard O-ring actuators. All other bearings, seals and components have been engineered to provide superior and extended service lives.
|
|
When in doubt, opt for pneumatics: linear or quarter-turn actuation of process valves, including Ex-protection. COPAC for gate valves and sluice gates, COPAR for butterfly and ball valves.
• Diameters 80 ... 320 mm
• Stroke lengths 40 ... 2,000 mm
• Force 2800 ... 47,500 N
• Double-acting
• Diameters 1 ... 880 mm
• Torque 7.5 ... 8,800 Nm
• Rotation angle 90°
|
|
Size 6, 8, 10, 12, 16, 25, 32, 40 mm
Torque 0.15 ... 20 Nm
Swivel angle 0 ... 270°
Position sensing
Fixed cushioning.
|
|
Efficiency is all about high-cycle automation, precision repeatability and long life in production environments. Applied Robotics provides rotary actuators that can help drive those efficiencies.
Designed for ease of integration in automation cells, our rotary actuators also allow for fully adjustable increments from 0 to 180 degrees.
Tell us about your specific requirements, and we'll find the right rotary actuators for your applications.
|
|

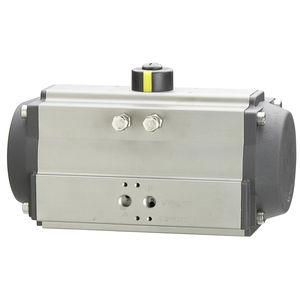

PNEUMATIC ACTUATOR EB-DW, DOUBLE ACTING
FEATURES
- Maintenance-free, continious lubrication
- Suitability for valves with an angle of 90°
- Blow-proof shaft bearing
- Torques in agreement with EN ISO 5211
- Control pressure min. 2 bar, max. 10 bar
- Good visible elastic position indicator
- Function return by turning the supply plate:
Currentless - close
Currentless - open
- All elements of connection are made of stainless steel
Possibilities of mounting and accesories are shown in chapter 4.3.
GENERAL APPLICATIONS
- Water and wastewater technology
- Shipbuilding
- Swimming pool technology
- Bulk handling
- Pneumatic conveying systems
- Chemical industry
|
|
Pneu-Turn Actuators
The Bimba Pneu-Turn Actuators have cylinder bodies with 304 stainless steel for maximum seal life and an actuator body that's high strength, anodized aluminum alloy for maximum corrosion protection. The porting ends are high strength, anodized aluminum alloy.
The shaft bearings are self-lubricating, sintered iron copper material for lower friction and the piston seals run with Buna "N", U-cup type for low breakaway friction and long life.
Angle adjustment is an option that allows 45° of adjustability at each end and the adjustable cushions are an option that controls deceleration at the end of the rotation.
Torque factors include 9/16" bore, single rack; 9/16" bore, double rack; 3/4" bore, single rack; 3/4" bore, double rack; 1-1/16" bore, single rack; 1-1/16" bore, double rack; 1-1/2" bore, single rack; 1-1/2" bore, double rack; 2" bore, single rack; and 2" bore, double rack. The Pneu-Turn angles of rotation are 45°, 90°, 180°, 270°, and 360°.
|
|
Features
● Rotary cylinder with double rack and pinion
● High precision positioning
● Shock absorber is mountable
● Intergrated table and pinion (Rigidity)
● Various applications through round table
● Easy wire arrangement by hollow axis
● Auto switch is mountable
|
|
RCM, RAN, RAP and RWT. Swing angles:
90,100,180,190,270,275,360° and indexable.
Precise positioning. Many possibilities of fixings. Assembly simple and fast of the parts to be added specific to the customers.
|
|
Three-Position Pneu-Turn
Rotary action of the Pneu-Turn Rotary Actuator is achieved through the use of a rack-and-pinion assembly. The speed of rotation may be controlled through the use of flow controls. The action at the end of the rotation can be controlled by the use of adjustable cushions, which are available as an option.
Ports on the Pneu-Turn may be repositioned to accommodate any airline configuration by loosening the three body retainer screws. The rack and pinion gear and ball bearings are pre-lubricated at the factory for extensive, maintenance-free operation.
Bore sizes are 9/16", 3/4", 1-1/16", 1-1/2", and 2". Each includes single and double rack models.
The Three-Position Pneu-Turn rotary actuators, in all bore sizes; both single and double rack can now be ordered as a standard catalog option.
|
|
* Tiny - 2.00" x 1.54" x 1.50" (100 deg.)
* Many options in tiny space
* No Backlash at end of stroke
* Long Life
* "Sanitary unit" - easy to clean
Plenty of torque - 9 in. lb. @ 80 psi
Strong shaft & bearings - 40 lb. radial, 30 lb. thrust
Accessible magnetic switches for position sense
|
|
|
|
|
|
Rotary Vane Pneumatic Actuators
Features
·Torque output of 16 to 1000 Inch Pounds
· Adjustable Rotations
· Reed and Hall effect switches
· Only one moving part
· Non Lube service
· Low cost solution
·Heavy Duty Double Acting Ball Valve Systems
Valve sizes from ¼” to 3”
140 in.lbs to 800 in.lbs
· Spring Return Valve operators
Single acting with spring close or open
Valve Operator Systems
·
·Spring Return operators are formed by bolting a spring return unit to a double acting Val-U-Act operator. The return movement is effected by a clock-type spring which is pretensioned to about half the operator torque. The amount of pretention is large, compared to the rotation and therefore the torque does not vary more than 20% over the rotation.
Spring returns are factory-installed and adjusted. The spring returns have a worm drive adjustment for setting or changing spring pretension. By inserting a socket key into one end of the worm the spring pretension can be very easily increased or decreased to suit operating conditions. To increase pretension, turn the worm clockwise; to decrease, turn counterclockwise.
|
|
|
AGI offers a full line of pneumatic rotary actuators. All rotary actuators are rack and pinion design and incorporate output flange hard stop. The hardstops stops the output flange directly so there isn't any pinion breakage. The units are ultra hi torque pneumatic actuators due to cross porting the two piston bores. The extremely low profile package is excellent in tight space applications. There are five sizes available with manifold and mid stop options. Torque output ranges from 7in-lbs. to 310 in-lbs. @ 100 psi.
|
|
HRAPS
Rotary actuator-piston type offers maximum space saving, easy piping. Rotation from 90 degrees toa full 360 degrees. Ultra compact sensor switch can be used. Double rack system offers no backlash and no leak construction. Slim, compact body. One end porting allows greater space saving. Double rod model available.
|
|
Simple Design
Low maintenance, best dollar to torque output ratios available.
Single Moving Vane with a Fixed Seal
Simple and reliable design means less maintenance no hysteresis and extremely long life.
Patented Tri-Seal Design
Tri-Seal seals the output shaft, body halves and vane with a single molded polyurethane component. Reduce costs and lead time.
Pressure Assisted Seals
Sealing is inherently self compensating for wear because the air pressure creates the seal.
No Load Full Stroke Operation with Less Than 3 PSI Air Supply
Low friction means that almost all the plant air to the actuator is being utilized to operate the valve instead of overcoming the friction in the actuator. Puretorq vane type actuator is excellent for modulating applications.
Dual Output Female Drives Together with Dual ISO Mounting Pad
|
|
1 An uncontrolled reset stroke can cause some bounce of the rack and a small forward impluse to the shaft. It will be apparent only if the shaft load is small, with low friction. It can be reduced by a bumper (usable on reset cylinder only) or more by a correctly adjusted cushion
2. Switch mounts by strap to cylinder, place as required for access and signal phasing R (sink) or S (Source) switches only.
|
|
RR-Heavy Duty - Flange Output Rotary Actuator
This heavy-duty rotary actuator is ideal for payloads up to 200 lbs [91Kg] in weight. They are available in standard 45, 90, 135 or 180 degrees of rotation. Optional shocks/stops, mid-stop and rotary manifold available.
1. Low profile and bearing supported turn table provides an extremely compact package for tight space applications
2. Payload can be connected directly to the turn table. Eliminates the need for a bearing block
3. Zero backlash, preloaded ball bearings, and slip fit dowel pins make this a very precise and repeatable rotary actuator
4. Air manifold option eliminates twisted airlines
|
|
|
|
|
|
DRF - Flange Output Rotary Actuator
These new DIRECTCONNECT, flange mount rotary actuators, allow the payload inertia to stop directly through an independent hard stop mounted in the turntable, rather than through the drive mechanism.
- Infinitely adjustable within rotation range
- Dual bearing flange support
- Magneto-resistive sensing
- Adjustable hard stops
RR-Light Duty - Flange Output Rotary Actuator
This small, compact and lightweight rotary actuator is ideal for payloads up to 3 lbs [1.3Kg]. They are available in standard 45, 90, 135 or 180 degrees of rotation. Optional sealed flange or sealed flange with corrosion resistant hardware available.
- Low profile and bearing supported turn table provides an extremely compact package for tight space applications
- Payload can be connected directly to the turn table. Eliminates the need for a bearing block
- Zero backlash, preloaded ball bearings, and slip fit dowel pins make this a very precise and repeatable rotary actuator
- Air manifold option eliminates twisted airlines
RR-Heavy Duty - Flange Output Rotary Actuator
This heavy-duty rotary actuator is ideal for payloads up to 200 lbs [91Kg] in weight. They are available in standard 45, 90, 135 or 180 degrees of rotation. Optional shocks/stops, mid-stop and rotary manifold available.
- Low profile and bearing supported turn table provides an extremely compact package for tight space applications
- Payload can be connected directly to the turn table. Eliminates the need for a bearing block
- Zero backlash, preloaded ball bearings, and slip fit dowel pins make this a very precise and repeatable rotary actuator
- Air manifold option eliminates twisted airlines
|
|
R Series Rack and Pinion Style Rotary Actuator
The R Series is a heavy-duty rack and pinion style rotary actuator that is designed to excel in the most rigid applications. The R Series includes a high torque-to-size ratio as well as accurate positioning.
RW Series Rotary Actuator
The RW Series Rotary Actuator design utilizes two independent piston cylinders, each piston has a crank arm attached to a crankshaft. As the piston strokes in its bore, the crankshaft rotates, pressurizing the opposite bore reverses rotation. This unique design has many features and benefits over conventional rotary actuators.
LR Series Low Profile Rotary Actuator
The LR Series rotary actuator is a low profile rack and pinion design. Two independent pistons drive their corresponding racks against the pinion thereby rotating the platform.
|
|
PRO-PRN ROTARY ACTUATORS
Full range of 9 sizes available
Non-lube intermittent use
Single or double vanes types
PRN High torque versions
Suitable for Process, packaging and electronics industry's applications
RA SERIES ROTARY ACTUATOR
Rack and Pinion type - RA
90° or 180° Rotation
Shaft with key
Uniform high torque in both directions
P1V-P, RADIAL PISTON AIR MOTORS
P1V-P piston motor
Power 0,73 kW, 0,125kW and 0,228kW
Low speed and high torque
Available as base and brake motors
Very low noise level
Free speed from 2200 down to 7,4 rpm
High torque from 0,637Nm up to 500Nm
No wear parts necessary if supplied with oil mist
P1V-A LARGE AIR MOTORS
Designed for arduous applications
Non-lube intermittent use
External seal viton
Wide product range
Suitable for Food Industry applications
|
|
|
SMC manufactures two of the most common types of rotary actuators: Rack and Pinion and Vane style. In addition, we offer Combination models combining compact cylinders with rotation and rotary gripper combinations. When the application calls for rotational motion less than one revolution, rotary actuators can mount right at the equipment joint without taking up space with long stroke lengths, which would be required to do the same job with a linear cylinder. SMC's rotary actuators can achieve arc lengths of 90, 180, 190, or even 270 degrees, depending on the configuration.
|
|
1. Rotary options available are the same as A01
2. Stop tubes are available to stabilize the extended shaft Standard lengths ate V and r, add 10 unit height Sleeves tor switch magnets serve the same function.
3. Needle VelVK see page 15.
|
|
RCM, RAN, RAP and RWT. Swing angles:
90,100,180,190,270,275,360° and indexable.
Precise positioning. Many possibilities of fixings. Assembly simple and fast of the parts to be added specific to the customers.
|
|
|
|
|
|
DRF - Flange Output Rotary Actuator
These new DIRECTCONNECT, flange mount rotary actuators, allow the payload inertia to stop directly through an independent hard stop mounted in the turntable, rather than through the drive mechanism.
Infinitely adjustable within rotation range
Dual bearing flange support
Magneto-resistive sensing
Adjustable hard stops
DRG - Shaft Output Rotary Actuator Series
These new DIRECTCONNECT, shaft mount rotary actuators, are an excellent choice for diverter gates, escapements and ejection stations where low precision end stop positioning and backlash are acceptable.
Infinitely adjustable within rotation range
Multiple mounting locations
Highly configurable. Multiple options
Features DIRECTCONNECT mounting
RR-Medium Duty - Flange Output Rotary Actuator
This medium-duty rotary actuator is ideal for payloads up to 15 lbs [6.8Kg] in weight. They are available in standard 45, 90, 135 or 180 degrees of rotation. Optional mid-stop and rotary manifold available.
Low profile and bearing supported turn table provides an extremely compact package for tight space applications
Payload can be connected directly to the turn table. Eliminates the need for a bearing block
Zero backlash, preloaded ball bearings, and slip fit dowel pins make this a very precise and repeatable rotary actuator
Air manifold option eliminates twiisted airlines
|
|
Multi Act’s integrated motion actuators have an output shaft which produces both linear and rotary motions may be operated independently and simultaneously. Multi-act is available in three family sizes.
MAO series – Miniature series
Linear: Strokes 1, 2 and 4 inches, Force 100 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 25 to 50 inch pounds at 100 psi
MA-1 Series – Heavy duty series
Linear: Strokes 2,4,6,9 and 12 inches
Force 440 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 150 to 600 inch pounds at 100 psi
MA2 Series - Brute Force Series
Linear: Strokes 4 and 8 inches
Force 1900 pounds at 100 psi
Rotary: Rotations 0 deg to 110 deg and 0 deg to 290 deg
Torques 1800 to 3600 inch pounds at 100 psi
|
|
THREE POSITION ACTUATOR
• Mounting and layout dimensions are like standard dual rack unit of same rotation.(i.e. 90-0-90 degree unit dimensionally like 180-degree standard unit)
• Stop tubes are installed in left cylinders. Magnetic switches to sense central position should also be installed on the left cylinders.
• Generally, torque is equal to the single rack unit of same size; other ratings as for dual rack unit.
|
|
THREE POSITION ACTUATOR
• Mounting and layout dimensions are like standard dual rack unit of same rotation.
(i.e. 90-0-90 degree unit dimensionally like 180-degree standard unit)
• Stop tubes are installed in left cylinders. Magnetic switches to sense central position should also be installed on the left cylinders.
• Generally, torque is equal to the single rack unit of same size; other ratings as for dual rack unit.
• For plumbing diagram click on user guide.
|
|
* Smallest 3 Position actuator 3.10" x 1.54" x 1.50"
* Program any sequence
* Long Life
* Many operational options
* Choice of angles
* Uncluttered exterior, easy to clean
Strong shaft & bearings - 40 lb. radial, 30 lb. thrust
Magnetic switches for all three positions, easily adjusted
|
|
THREE POSITION ACTUATOR
• Mounting and layout dimensions are like standard dual rack unit of same rotation.
{i.e. 90-0-90 degree unit dimensionally like 180-degree standard unit)
• Stop tubes are installed in left cylinders. Magnetic switches to sense central position should also be installed on the left cylinders.
• Generally, torque is equal to the single rack unit of same size; other ratings as for dual rack unit.
• For plumbing diagram click on user guide.
|
|
|
|
