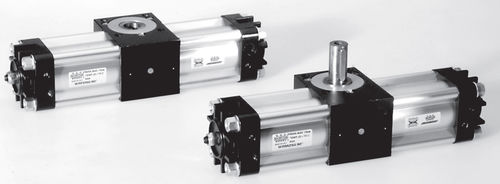

Pneumatic cylinder WR seriesrotaryrack-and-pinionanodized aluminum
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- rack-and-pinion
- Material
- anodized aluminum
- Other characteristics
- standard
- Bore
Min.: 32 mm
(1.26 in)Max.: 125 mm
(4.92 in)- Pressure
Min.: 1 bar
(14.5 psi)Max.: 10 bar
(145.04 psi)- Force
100 N, 120 N, 200 N, 250 N, 300 N
- Torque
Min.: 1.73 Nm
(1.276 ft.lb)Max.: 51 Nm
(37.616 ft.lb)- Rotation angle
90 °, 180 °, 270 °, 360 °
- Operating Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)
Description
Rotary cylinders series "WR" are fit to transform the piston straightaway motion into rotative motion by means of the coupling between rack and pinion. In the standard version, rotary cylinders series "WR" can be supplied with magnetic sensors and with rotation angle adjustment.
