Hydraulic cylinder T

rotarycompact

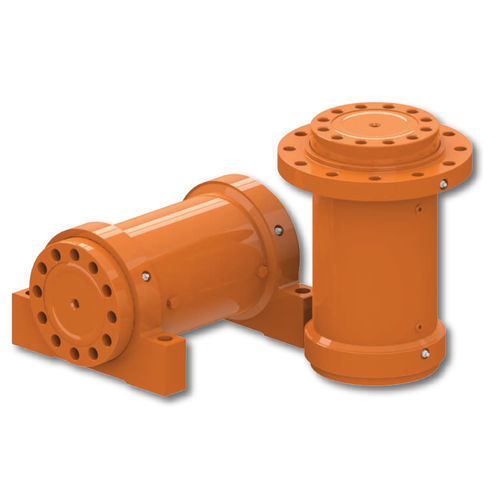

Ideal for applications where high torque generation and higher cycle rates are the primary requirements, the Parker Helac T Series Hydraulic Rotary Actuator features splined output shafts and 200-220 degrees of rotation. Helac’s helical, hydraulic sliding spline technology is non self-locking while providing high shock resistance and high-holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure the T Series eliminates the need for external bearing systems, brakes or locking devices. 4 standard sizes with torque output up to 60,000 in-lbs at 3,000 psi. Click on Where to Buy to view a list of Helac hydraulic rotary actuator distributors and prices. Markets: Agriculture Construction Energy Marine Material Handling Military Mining Truck/Trailer Feature and Benefits: Powerful – High torque, high bearing capacity Durable – Moving parts enclosed, suitable for harsh environments Compact – High power density, fits in tight spaces Holds Position – Zero internal leakage, smooth operation, no external brake required Simplifies – Eliminates bearings, linkages & brackets, reduces bill of materials Backdrives in Overload Conditions – Hydraulic fuse, prevents mechanical damage
