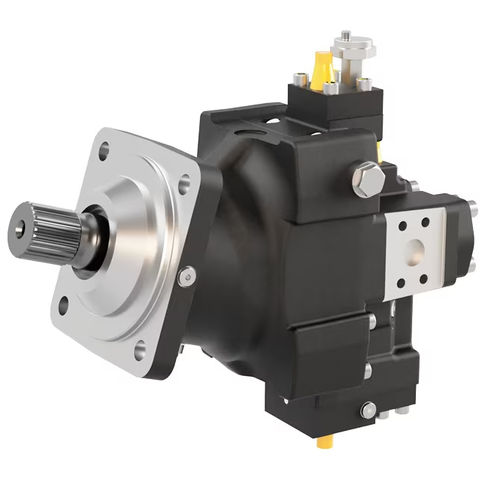

Axial piston hydraulic motor V16

variable-displacement

The Series V16 is a Bent Axis, Variable Displacement Motor. Parker’s renowned V16 motor series is impressively engineered and intended for both open and closed circuits transmissions with focus on high performance machines. The compact envelope size makes for a clean and cost-effective installation. Rigorous product testing and continuous product development help to ensure our hydraulic pumps operate at optimum efficiency and can perform in the most demanding environments. Markets: • Mobile • Natural Resources • Government Features/Benefits: • Displacement 220 cc and 270 cc • High operating speeds thanks to low weight pistons • Wide displacement ration (5,5:1) • Broad range of controls for most applications • High overall efficiency throughout the entire displacement range • The 9-piston design provides high start-up torque and smooth operation • Small envelope size and a high power-to-weight ratio • Low noise levels due to a very compact and sturdy design with smooth fluid passages • Long service life and proven reliability Applications: • Construction Equipment • Mining • Oil & Gas • Defense • Agriculture
