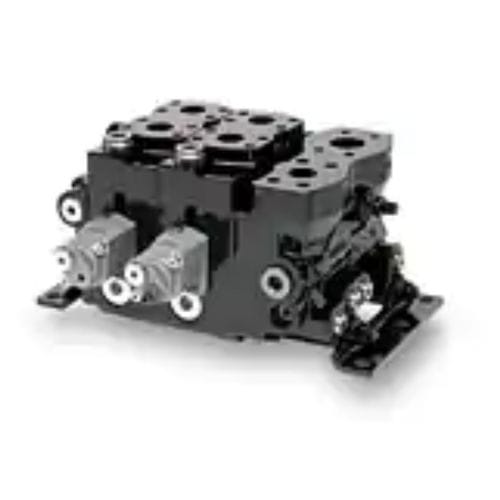

Sectional hydraulic directional control valve K220LS
spoolelectro-hydraulichydraulically-operated

sectional hydraulic directional control valve
sectional hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
electro-hydraulic, hydraulically-operated
Other characteristics
compact, proportional, modular, sectional, pressure-compensated, normally closed, for high flow rates, normally open
Operating pressure

Max.: 350 bar
(5,076 psi)

Min.: 0 bar
(0 psi)

Flow rate

Max.: 350 l/min
(92 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Description

Parker's K220LS mobile valve is characterized by industry leading properties regarding robustness, control precision and energy efficiency.Parker K220LS is a sectional-built, load sensing, directional control valve for mobile machinery. K220LS has a wide range of selectable functions, offering great flexibility in terms of system structure in simple as well as advanced hydraulic system solutions. K220LS is a result of Parker’s wide experience in mobile hydraulics, offering excellent performance, made with high grade materials and precision manufacturing. K220LS can be equipped with hydraulic or electrohydraulic spool actuators in any combination. Each valve section can be optimized for its particular function in the machinery, with a large range of main spools, pressure relief valves, pressure compensators, signal pressure limiters and other performance enhancing functions. The K220LS hydraulic valve can be constructed in many different designs, with different inlet sections, work sections, end sections. The valve sections are individually specified with threaded or flange ports. The K220LS can also be combined with the smaller L90LS directional control valve in order to further optimize functional performance in machinery with large variations in flow requirement. For complete customer-specific functional adaptation and to accommodate every conceivable need in terms of auxiliary function control, the K220LS can be combined with tailor-made function manifolds consisting of components from Parker's many product divisions.
