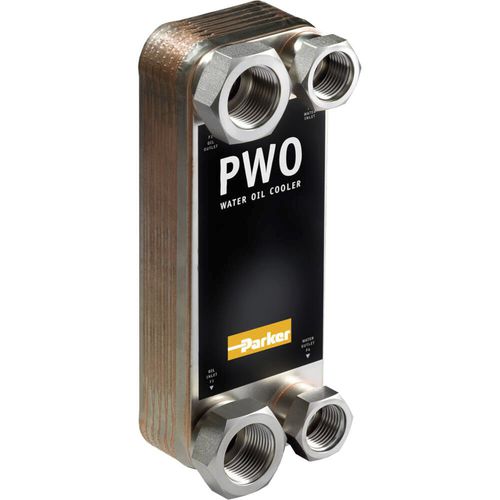

Brazed plate heat exchanger
water/oilstainless steelcopper

brazed plate heat exchanger
brazed plate heat exchanger
Add to favorites
Compare this product


Characteristics

Type
brazed plate
Fluid
water/oil
Material
stainless steel, copper, titanium
Other characteristics
compact, oil cooler
Applications
industrial, for marine applications, for construction equipment
Operating pressure

Min.: 28 bar (406.11 psi)

Max.: 31 bar (449.62 psi)

Temperature

225 °C (437 °F)

Power

Min.: 5,000 W (17,060.7 BTU/h)

Max.: 510,000 W (1,740,191.4 BTU/h)

Description

The Parker PWO is a compact and lightweight Water Oil Cooler (also known as a brazed plate heat exchanger) with a high cooling capacity for its size. Please use the PWO Sizing Software on the Product Support Tab for proper cooler sizing. With a PWO water oil cooler in your system, you can be assured that the fluid in your system is working at the correct temperature, providing maximum performance and reliability. The cooling elements of the Parker PWO water oil cooler consist of corrugated channel plates sandwiched between the front and rear cover plates. The channel plates are pressed and vacuum brazed in the same automated procedure, with rigorous standards of quality control. The design of the Parker PWO emphasizes a number of possibilities for versatile and efficient solutions. Markets: • Industrial • Marine • Mobile Features/Benefits: • Light and compact • Suitable for many applications • Easy installation • Cost-efficient and environmentally friendly The correct working temperature produces a number of economic and environmental benefits: • The hydraulic system’s useful life is extended. • The oil’s useful life is extended. • The hydraulic system’s availability increases – more operating time and fewer shutdowns. • Service and repair costs are reduced • High efficiency level maintained in continuous operation – the system’s efficiency falls if the temperature exceeds the ideal working temperature.
