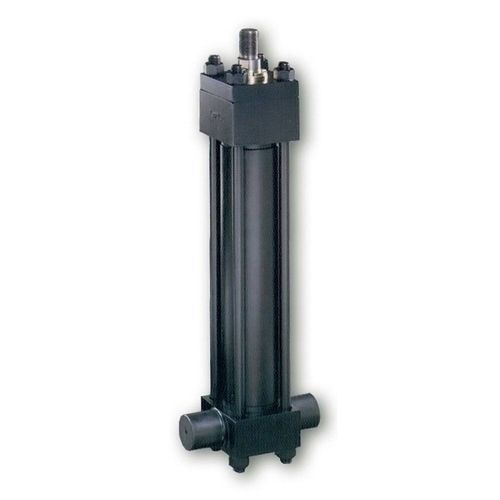

Hydraulic cylinder 3L series
tie-roddouble-actingsingle-acting

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Technology
tie-rod
Configuration
double-acting, single-acting
Applications
clamping, industrial, food, for the automotive industry, chemistry, for robots, test, for machine tools
Stroke

Min.: 0 mm
(0 in)

Max.: 5,000 mm
(196.85 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 70 bar
(1,015.3 psi)

Rod diameter

Min.: 13 mm
(1 in)

Max.: 140 mm
(6 in)

Ambient temperature

Min.: -46 °C
(-51 °F)

Max.: 150 °C
(302 °F)

Description

70 bar Industrial Tie Rod Hydraulic Cylinders conforming to ANSI and NFPA. The tie rod construction sets the standard for performance, durability and trouble-free operation with superior design and quality to ensure long cylinder service life. 3L sériés tie rod hydraulic cylinders are heavy duty, inch-dimensioned cylinders rated for use at working pressures up to 70 bar depending on the rod end and type of service. Like ail cylinders from Parker Hydraulics, they are designed to deliver long, efficient service with low maintenance requirements, guaranteeing high productivity with low cost of ownership, year after year. To generate a CAD model of an 3L Sériés cylinder, please follow the steps for the équivalent 3L Sériés cylinder by using the CUSTOM CONFIGURATOR button. A wide range of optional features is available, permitting 3L cylinders to be customised to suit even the most challenging industrial application. Options include feedback transducers and position switches, intégral cushions, oversize ports, stop tubes, stroke limiters, gland drains, rod end protection and more. Where only a totally bespoke cylinder will do, our experienced design engineers will work with you to create a unique customised solution. Markets: Energy • - Energy Production, Development & Service • - Power Génération Government (Non-Aerospace) • - Defense • - Government (Non-Defense) Industrial • - Factory Automation • - Air & Gas Compressors • - Machine Tools • - Packaging Machinery • - Vehicle Assembly Facilities Processing • - Food & Beverage • - Industrial Chemical Processing
