PORTABLE DRILL RE-SHARPENER, VARIABLE ANGLES, FOR HSS AND HARD METAL. THREE MODELS: 2mm-13mm, 3mm-20mm, 12mm-30mm.
SAE 1300
Features:
Drill diameter: 2-13mm
Variable angle: 90º -144º
Speed: 5300 rpm
Engine: AC 220V
Weight: 10Kg
CBN grinding wheel for HSS: CBN-200
Diamond grinding wheel for Hard Metal: DIA-400-1300
Collets: ER-20
Dimensions: 30 x 20 x 1.8 cm
SERIES OF EQUIPMENT
Sharpening model SAE-1300
CBN grinding wheel for high speed steel.
Collets ER-20, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13.
Allen wrench
OPTIONAL EQUIPMENT
Diamond wheel DIA-400-1300 for hard metal.
SAE 2000
Features:
Drill diameter: 3-20mm
Variable angle: 90º -144º
Speed: 5300 rpm
Engine: AC 220V
Weight: 17Kg
CBN grinding wheel for HSS: CBN-200-2000
Diamond grinding wheel for Hard Metal: DIA-400-2000
Collets: ER-25
Dimensions: 40 x 22 x 20 cm
SERIAL EQUIPMENT
Sharpening model SAE-2000
CBN grinding wheel for high speed steel.
Collets ER-25: 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 and 20.
Allen wrench
OPTIONAL EQUIPMENT
Diamond wheel DIA-400-2000, for hard metal.
SAE 2500
Features:
Drill diameter: 12-26mm (optional 27, 28, 29, 30)
Variable angle: 90º -144º
Speed: 5300 rpm
Engine: AC 220V
Weight: 27Kg
CBN grinding wheel for HSS: CBN-140-2500
Diamond grinding wheel for Hard Metal: DIA-400-2500
Collets: ER-40
Dimensions: 45 x 24 x 22 cm
SERIAL EQUIPMENT
Sharpening model SAE-2500
CBN grinding wheel for high speed steel.
Collets ER-40: 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25 and 26.
Allen wrench
OPTIONAL EQUIPMENT
Diamond wheel DIA-400-2500 for hard metal.
Collets ER-40: 27, 28, 29, 30.
|
|
|
Even very small shops can now sharpen their own drills, and keep on working. For the cost of less than 100 drills, you can accurately sharpen your most common drills in under a minute. The Darex V390 incorporates some of the same technology in our more advanced machines and is the perfect choice for shops that need a sharpener for intermittent use. Its simple, intuitive design give everyone access to sharp drills when you need them.
|
|
|
|
|
|
APOLLO 13
DIAMETER OF APPLIABLE END-MILLS:
4-13 FOR 2 FLUTED AND 6-13 FOR 4 FLUTED END-MILLS
APPLIABLE SHAFT DIAMETER OF END-MILLS:
4-6-8-10-12
AXIAL ANGLES:
1 PRIMARY CUTTING ANGLE 6º
2 RELIEVE ANGLE 20º
3 END GASH 30º
Whetstone grinding wheel:
CBN 170 FOR HSS (DIA 170 FOR CARBIDE)
VOLTAGE:
+ -10% 220V AC 50/60HZ
ENGINE POWER:
100W - 7200 RPM
DIMENSIONS: 220x2220x200
WEIGHT: 4.8 KG
EQUIPMENT:
5 HOLDER TUBES
RING SUPPORT FOR 2 AND 4 FLUTED END-MILLS
ALLEN WRENCH 3 mm
ALLEN WRENCH 2.5 mm
BRUSH
CABLE CONNECTION
APOLLO 22
DIAMETER OF APPLIABLE END-MILLS:
12-22
APPLIABLE SHAFT DIAMETER OF END-MILLS:
12-16-20
AXIAL ANGLES:
1 PRIMARY CUTTING ANGLE 6º
2 RELIEVE ANGLE 20º
3 END GASH 35º
Whetstone grinding wheel:
CBN 270 FOR HSS (DIA 270 FOR CARBIDE)
VOLTAGE:
220V AC 50/60HZ + - 10%
ENGINE POWER:
300W - 6900 RPM
DIMENSIONS: 300x300x280
WEIGHT: 12 KG
EQUIPMENT:
3 HOLDER TUBES
RING SUPPORT FOR 2 AND 4 FLUTED END-MILLS
ALLEN WRENCH 3 mm
ALLEN WRENCH 2.5 mm
BRUSH
CABLE CONNECTION
1 Fast (only 2 minutes) in implementation.
2 No need any professional knowledge, anyone can use it.
3 Machine favorite of the head. You can reuse the end-mills.
4 Saving, increase profits, increase effectiveness of the production.
5 Saves time, money, material and end-mills.
(APL-13 edges up to 1500 pieces with the same grinding wheel)
(APL-22 edges up to 1300 pieces with the same grinding wheel)
6 Increase the life time of the end-mill (wearing nothing more than 0.2 mm)
7 You can reuse the end-mill 8 to 9 times.
8 10 times more precise than hand-sharpening
9 Applicable to 2 and 4 fluted end-mills of HSS and carbide.
10 Simple, compact, portable and secure.
|
|
|
Quickly sharpen a wide range of end mills. Renew endmills up to 1" in diameter and 6" flute length. Easily sharpen long flute end mills. The easy-pull handle allows precise control of the air-bearing spindle. You can pull and rotate the spindle the full length of the end mill without the necessity of re-positioning your hand. Increase your production. A sharp end mill will allow maximum machining rates as well as generating less heat in the process. Fewer burrs will be created, reducing the time necessary for finishing processes.
|
|
|
If you want the right point for the job, but don't want to become a tool and cutter grinding expert, the Darex XT3000 is for you. It sharpens a wide variety of sizes and styles of drills and other tools with ease and accuracy. Imagine, for the price of a couple hundred drills, you can sharpen in house for only pennies a drill. Using our patented chuck/cam design allows anyone to be a sharpening expert with a few minutes of instruction. A rock solid heavy duty machine capable of sharpening all day, everyday. Attachments can be interchanged in seconds and all adjustments can be made without tools.
|
|
AUTOMATIC DRILL RE-GRINDING MACHINE
The easy-to-operate RDG-13 can resharpen "R thinning" and "X Split" points with different point
angle (118 to 140 deg) and can resharpen "X" thinning points; with or without a gash.
Features
1. This machine can resharpen R thinning, X thinning with a gash or without a gash from 3mm to 13mm diameter, max 200mm OAL.
2. The special sensors enable the machine to adjust the tool to the proper grinding position, and then grind automatically.
3. Standard accessories include special collets for drill diameters 3, 4, 5 and 6 mm.
More information on this product (including dimensions and list prices) can be found by contacting OSG Europe or visiting http://www.osg.co.jp/eng/products/index.html for download the PDF.
|
|

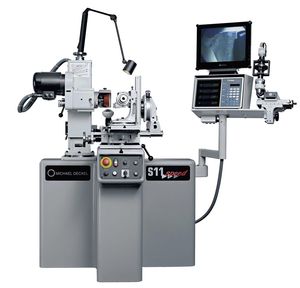

S11 speed
The specialist for any standard and special tools
- T-shaped design for easy one-side operation
- Motor-driven height adjustment
- Infinitely variable spindle drive from 2,000 to 12,000 rpm
- Schort work distance
- Axial infeed grinding spindle
- Measuring and checking on the machine: with the aid of a microscope, a projector or of ultra-modern video equipment
- Ideal for the maintenance of any standard and special tools such as step drills, rounding cutters, form drills and hobs
|
|
S0 and S0E
For single lip cutters and much more!
- Powerful drive
- Integrated wheel dressing unit
- Precise grinding spindle
- Versatile swivelling and setting options
- Optional: 1:20 microscope to drastically cut setting time
- Solid machine design for long-time precision
- Dust protection hood as standard feature for easy vacuum cleaner connection (integrated dust extraction for the S0E)
- Bench-type or floor-type version
- Great variety of accessories
|
|
M657 - Milling cutter, straight-gash hob and whirling cutter sharpening machine
Resharpening form cutters and precision gear cutters Ø 25 - 120 mm, straight-gash hobs Ø 6 - 60 mm, and whirling cutters Ø 15 - 30 mm
Max. sharpening length 60 mm
Material: HSS and tungsten carbide
Workpiece positioning with laser
|
|
|
The XPS-16 is for shops that demand the ultimate in precision, simplicity and productivity. Only CNC can reproduce the complex, high-tech points found on today's premium HSS and carbide drills, and only the XPS-16 can to it all - with the touch of a button. Imagine, for the price of a couple hundred premium carbide drills, you can sharpen in house for only pennys a drill. This high capacity machine can sharpen thousands of drills a week.
|
|
