Retsch sieve shakers are used in research & development, quality control of raw materials, intermediate products and end products, and in production control. The AS 200 series enables every user to select a suitable device according to his individual requirements, profile and budget. The AS 200 control meets the highest standards in quality assurance and offers a microprocessor-controlled measuring and control system, patented and unique throughout the world, for constant vibration. It can be calibrated, and ensures for the first time 100% reproducibility of sieving results, and not only for one device, but all AS 200 control units one to another. This provides the prerequisite for monitoring inspection, measuring and test equipment according to ISO 9000.
Further models: AS 300 control, AS 400 control |
|
The Cleveland Professional vibrator Company, along with its affiliate HK Technologies, introduces a new line of ultrasonic screening equipment utilizing dual vibrator drives. This dual motor separator provides for three control variables: vibrator force, frequency, and drive angle. This design concept results in a three dimensional motion thus allowing for greater throughput of difficult to screen products. This distinctive vibratory action coupled with HK Technologies unique ultrasonic deblinding system provides a screener that can handle many difficult screening applications. The transducer is attached to the aluminum rim with the wire cloth attached on the bottom (like a sieve). Unlike competitive products, the ultrasonic vibration transfers from the rim to the wire cloth to facilitate the throughput of fines by introducing high frequency movement to the individual wires. Helps eliminate blinding. This unique transfer increases the life of the wire cloth as traditional methods allow heat from the transducer to prematurely fail the fine wires.
Models are available in 24, and 36" diameter screen sizes. Screen sizes down to 635 mesh (20 micron). All screens are re-screenable.
Cleveland Vibrator also manufactures a complete line of brute force screeners as well as fine powder, laboratory screeners. Ask about our HyBrute, a brute force screener with the addition of ultrasonic deblinding.
|
|

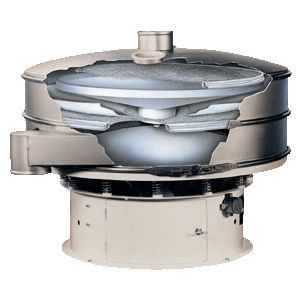

Kason Vibroscreen® circular vibratory sieves separate bulk solid materials from solids and slurries using multi-plane, inertial vibration that causes particles to pass through apertures in the screen or to travel across the screen surface in controlled pathways.
The screeners range in diameter from 18" to 100" (460mm to 2540mm) and are offered with single or multiple screening decks, separating particles in one to five predetermined sizes ranging from 2" (50mm) to 400 mesh (37 microns).
A wide range of models and specialized options satisfy a broad range of sifting, scalping, classifying, de-dusting and dewatering applications from the most simple to the most challenging, in capacities ranging from several pounds/kilograms to more than 30 metric tons per hour.
All Kason circular vibratory screeners are offered in gravity-fed and in-line pneumatic models for batch or continuous operation, and are available to industrial, food, dairy and pharmaceutical standards.
The screeners are offered in two configurations, distinguished by the number and location of imbalanced-weight gyratory motors employed to impart vibration. |
|
High capacity gyratory units for high viscosity liquid/solid separation, and wet or dry classification. Easy operation when tuning to specific feed rate, product and separation requirements. No damping under loads. Long screen life. Inline screeners are also available.
Circular Screen Industrial separators
Eriez' range of models allows selection particular to specific and unique material application requirements. Some of the models available will be ideal for processing all types of dry materials, while others will work best for slurries, waste water and other dewatering applications.
Linear Screen Separator
Vibratory sieves serve as efficient screening separators for a wide variety of materials. Eriez has standard and heavy duty models for the majority of screening applications. Special units can be ordered with multiple drives for greater capacities. In addition, a wide variety of standard and special trays are available. |
|

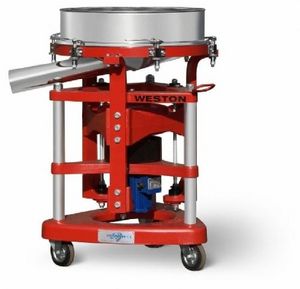

Weston circular screen industrial separator has been produced for more than 40 years and stand out for its high screen efficiency, strength and reliability. These are the main qualities that makes Weston sieve the most sold and required sieve from our customers.
It segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,033 mm (400 mesh).
It is particularly utilized in food, chemical and pharmaceutical industry and in all sectors of application where the sieve need to be used on several product lines.
Easy to install, can separate particles in 2 to 3 sizes with up to 2 screen decks incorporated in one separator.
Main characteristics:
- screen frames can be changed quickly and easily (change activity requires 1 minute);
- screen can be equipped with various industrial cleaning system as: everclean, starbrush and the innovative ultrasonic cleaning system;
- vibration movement is easy to regulate;
- operating cost are very low;
- can be easily adapted to customer needs: Weston sieve has professional wheels and can be moved and installed into different product lines;
- product contact areas are easy to assemble, mirror polished and in stainless steel AISI 304 or AISI 316.
- suitable for applications that require screening solids from a large volume of heavy, high-viscosity liquids (liquid panting and glue industry).
Weston sieve is available in 3 different models: Weston 503, Weston 605 e Rotowest. |
|
