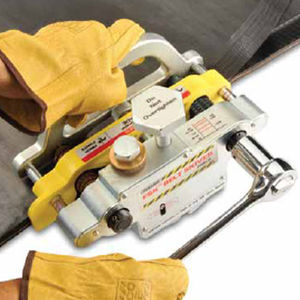

Portable, lightweight skiver adjusts easily and precisely to various cutting depths. It%u2019s easy to carry and operate around the job site - even in cramped operating environments. Use on rubber-covered belts with top covers of 3/16" (1.5mm) to 3/8" (10mm) deep in a single pass. Deeper skives can be achieved with multiple passes.
This pneumatical or electrical tool is dedicated for the flexible skiving of the cover of a rubber conveyor belt:
- Preparation for the installation of a belt fastener
- Preparation for the installation of a cold or hot vulcanized splice
- Preparation for the repair of holes and rips
- Cutting cleats and rubber profiles
The various blades are designed for skiving 2 mm; 4 mm or 6 mm depth on every step.
Skiver - Type B80 D
Hand operated plate skiver for conveyor and transmission belts up to 80 mm wide and a maximum of 5 mm thickness.
Skiver - Type B100 R / RM
Roller skiver without motor (B100 R) or with motor (B100 RM) for conveyor and transmission belts up to 100 mm wide with 90° straight cut.
Skiver - Type B300 SA
Skiver ideal to obtain accurate skives with preset angle on belts and belting up to 300 mm wide with 90° straight cut.
