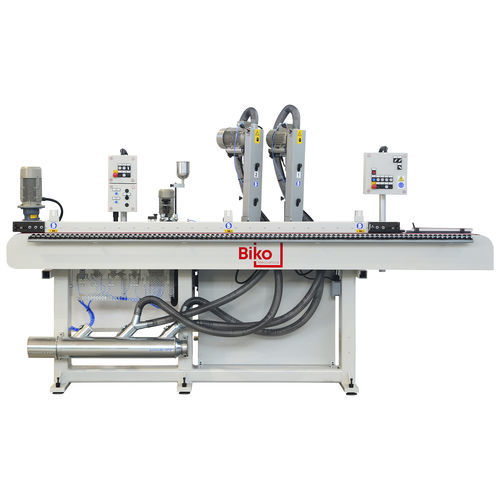

Continuous skiver CSM07-S

for abrasive clothfor abrasive paper

The skiving machine type CSM07-S processes paper and cloth narrow belts. Even though ideal for narrow belts, the machine can be equipped to work also wide belts. CSM07-S is indicated for converters with medium-high productions. Technical Data - Automatic continuous cycle with a feeding conveyor belts system, at variable speed - Ideal for both overlapped joints and butt joints - Cycle with variable speed up to 12 m/min. (367 FPM) - In the standard version, the machine can be provided with a maximum of 6 working units and a gluer (NGA roller gluer or NSA spray gluer) Options - Short dryer for glue (200 mm) - Simple inserting table for 1,500 mm wide belts - Nylon roller table as support for long and for wide belts on hinges, to be swinged up or down Size and Power - Overall machine dimensions: 3.5 x 0.9 x 2.0 m (compact version) 6.3 x 0.9 x 2.0 m (with feeding support for wide belts) - Approx. weight: 1,100 kg - Installed power: 7.5 kW - Air consumption: 5,000 Nl/h
