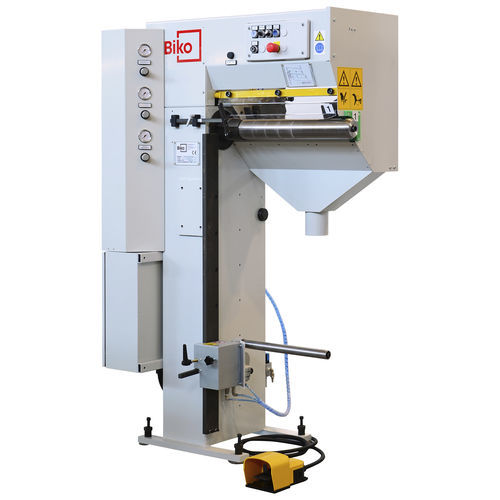

Belt slitter SBS-IS

for abrasive paperfor abrasive clothautomatic

The belt slitter type SBS-IS is designed to slit narrow belts of abrasive paper or cloth. SBS-IS is the perfect machine for a medium performance in slit short and very short belts. Technical Data - Maximum width of the belt 310 mm - Minimum length of the belt 285 mm - Maximum length of the belt 11,500 mm - Variable speed - Cut by means of circular knives with pneumatic pressure Knifeholders - Knifeholders with mechanical regulation of positioning and clamping (HL-25/100) - Fixed knife set FKS for cutting width less than 25 mm on 310 mm working width Options - Pneumatic stretcher for short belts - Stretcher for long belts up to 11,500 mm with manual belt guide - Automatic cycle with manual insertion of the belt and automatic ejection of the slitted belts Size and Power (Without Long Belt Stretcher) - Overall machine dimensions: 0.7 x 1.2 x 1.9 m - Approx. weight: 500 kg - Installed power: 1.5 kW - Air consumption: 10 Nl/cycle Size and Power (With 11,500 mm Long Belt Stretcher) - Overall machine dimensions: 6.6 x 1.2 x 1.9 m - Approx. weight: 800 kg - Installed power: 1.5 kW - Air consumption: 14 Nl/cycle
