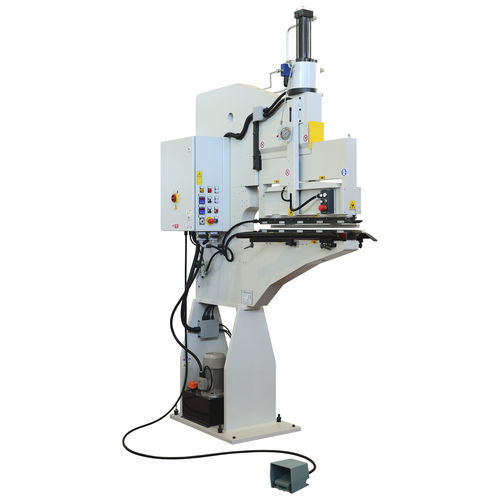

Hydraulic fusing press HP
for abrasive clothfor abrasive paperfor narrow webbing

Hydraulic fusing press - HP - Biko Meccanica Srl - for abrasive cloth / for abrasive paper / for narrow webbing

Add to favorites

Compare this product

Characteristics

Applications: for abrasive cloth, for abrasive paper
Other characteristics: for narrow webbing, hydraulic

Description

The beam press type HP is designed to press the joints of cloth and paper narrow belts. The HP machine is indicated to press difficult materials. Technical Data - Hydraulic pressure up to 30,000 N - Max. joint length 600 mm - Automatic cycle - Intermediate pressing beam for extremely short belts/sleeves, provided with heater and - thermostat (temperature adjustable up to 130 °C) Size and Power - Overall machine dimensions: 1.8 x 0.7 x 3.0 m - Approx. weight: 2,500 kg - Installed power: 4 kW - Air consumption: 50 Nl/h

Catalogs

No catalogs are available for this product.

See all of Biko Meccanica Srl‘s catalogs
