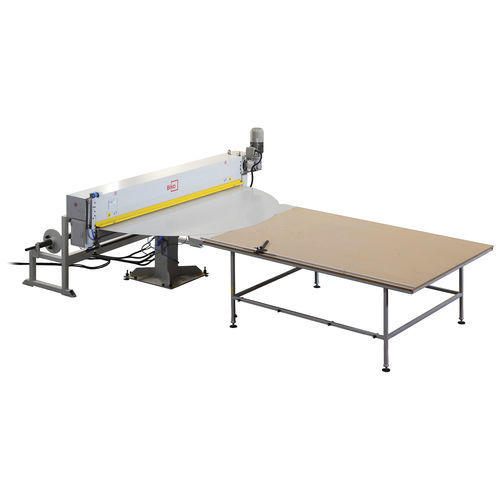

Cut-to-length cutting table BTFW-1650
for abrasive clothcoated abrasivefor abrasive paper

Cut-to-length cutting table - BTFW-1650 - Biko Meccanica Srl - for abrasive cloth / coated abrasive / for abrasive paper
Cut-to-length cutting table - BTFW-1650 - Biko Meccanica Srl - for abrasive cloth / coated abrasive / for abrasive paper
Cut-to-length cutting table - BTFW-1650 - Biko Meccanica Srl - for abrasive cloth / coated abrasive / for abrasive paper - image - 2
Cut-to-length cutting table - BTFW-1650 - Biko Meccanica Srl - for abrasive cloth / coated abrasive / for abrasive paper - image - 3
Cut-to-length cutting table - BTFW-1650 - Biko Meccanica Srl - for abrasive cloth / coated abrasive / for abrasive paper - image - 4
Add to favorites
Compare this product

Characteristics

Materials
for abrasive cloth, coated abrasive, for abrasive paper
Other characteristics
cut-to-length

Description

The cut-to-length machine type BTFW is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available). Possibility to perform both straight and wave cuts. Technical Data - Max. cut length (joint length) 2000 mm (if required, 2300 mm also possible) - Possibility to perform both straight and wave cuts - Pneumatic device of cross cut by means of a steel rule die which cuts on the backing side - Quick change of the bladeholder - Joint angle adjustable between 90° and 55° Options - Digital angle measuring device - Simple unwinding system - Output collecting table - Belt alignment device for subsequent automatic splicing on wave/finger cuts on Biko SAJ-A and AWBL skiving machines Size and Power - Overall machine dimensions: - 1.6 x 2.8 x 1.7 m (BTFW-1650 model, standalone) - 7.9 x 2.8 x 1.7 m (BTFW-1650 model, with unwinder and collecting table) - Approx. weight: 1,300 kg - Installed power: 1 kW - Air consumption: 0.5 m3/h

Catalogs

No catalogs are available for this product.

See all of Biko Meccanica Srl‘s catalogs
