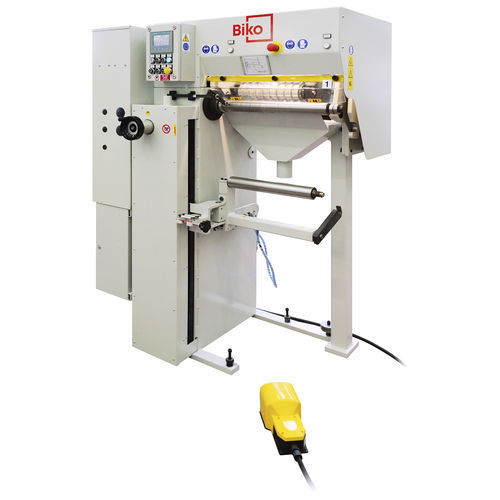

Belt slitter SBS-DF
for abrasive paperfor abrasive clothautomatic

Belt slitter - SBS-DF - Biko Meccanica Srl - for abrasive paper / for abrasive cloth / automatic

Add to favorites

Compare this product

Characteristics

Applications: for abrasive paper, for abrasive cloth
Finished product: belt
Options: automatic, manual

Description

The belt slitter type SBS-DF is designed to slit narrow belts of abrasive paper or cloth. SBS-DF is the perfect machine for a medium performance in slitting short and very short belts. Technical Data - Maximum width of the belt 310 mm - Minimum length of the belt 285 mm - Variable speed - Cut by means of fixed knife set FKS - Pneumatic stretcher for short belts - Automatic cycle with manual insertion of the belt and automatic ejection of the slitted belts Knifeholders - Fixed knife set FKS for cutting width less than 6 mm on 310 mm working width - Safety locking system on cutting cylinder Size and Power - Overall machine dimensions: 1.0 x 1.3 x 1.9 m - Approx. weight: 600 kg - Installed power: 1.5 kW - Air consumption: 4 Nl/cycle
