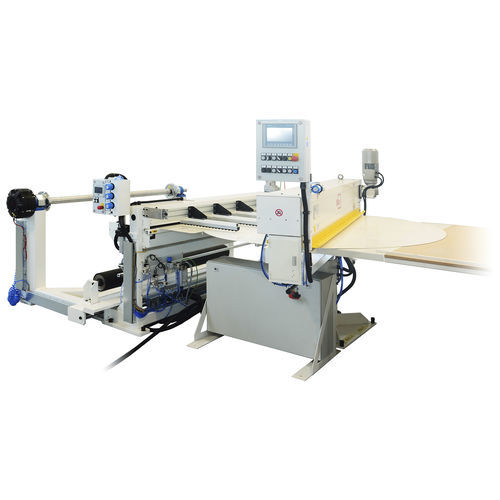

Cut-to-length cutting machine BTFW-AUS

rotary bladefor abrasive clothcoated abrasive

The cut-to-length machine type BTFW-AUS is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available). Possibility to perform both straight and wave cuts. BTFW-AUS is a machine for large series, suitable for converters producing on a medium-large scale. The material is automatically pushed to the preset length; the final adjustment and alignment is performed manually; the pneumatic holding bar is lowered, then the material is automatically stretched and cut. After cutting, the next belt is pushed through the machine Technical Data - Useful material width 1650 mm or 2050 mm - Unwinding station for rolls up to 1200 mm dia. and 2000 kg of weight - Unwinding pneumatic expanding aluminum shaft 3" dia. - Pneumatic unwinding brake, manually adjustable - Feeding by double motorized roll system - Feeder brings the web up to the desired length - Length accuracy must be controlled by operator before cutting Options - Digital angle measuring device - Output collecting table - Automatic alignment of the unwinding material Size and Power - Overall machine dimensions (without collecting table: 3.0 x 2.9 x 1.8 m - Approx. weight: 2,100 kg - Installed power: 3 kW - Air consumption: 0.5 m3/h
