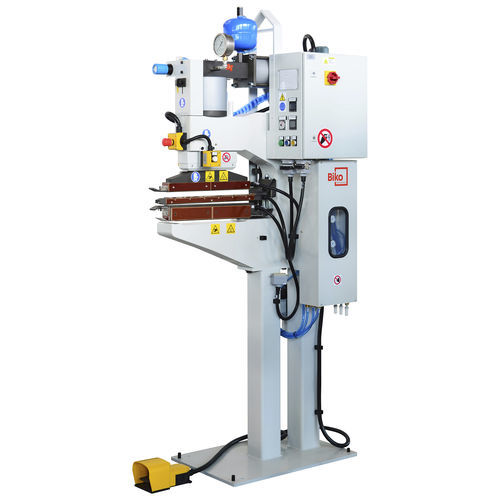

Pneumatic fusing press PNP-450for abrasive clothfor abrasive paperfor narrow webbing
Add to favorites
Compare this product
Characteristics
- Applications
- for abrasive cloth, for abrasive paper
- Other characteristics
- for narrow webbing, pneumatic
Description
The beam press type PNP is designed to press the joints of cloth, paper and non-woven narrow belts. The PNP machine is indicated for converters with medium-low productions.
Technical Data
- Pneumo-hydraulic pressure up to 25,000 N (adjustable)
- Max. joint length 450 mm (650 mm also possible)
- Lower press bar provided with heater and thermostat (temperature adjustable up to 80 °C)
- Lower press bar front lifting to feed belts around it, to avoid bottom belt side press and damage
- Press top beam lowering with foot pedal, high pressure by double hand button
Options
- Intermediate bar for extremely short belts/sleeves
- Intermediate bar provided with heater and thermostat (temperature adjustable up to 80 °C)
- Top bar provided with heater and thermostat (temperature adjustable up to 80 °C)
- High pressure fast cycle
Size and Power (PNP-450 Model)
- Overall machine dimensions: 1.1 x 0.9 x 2.3 m
- Approx. weight: 700 kg
- Installed power: 1.3 kW
- Air consumption: 25 Nl/cycle
