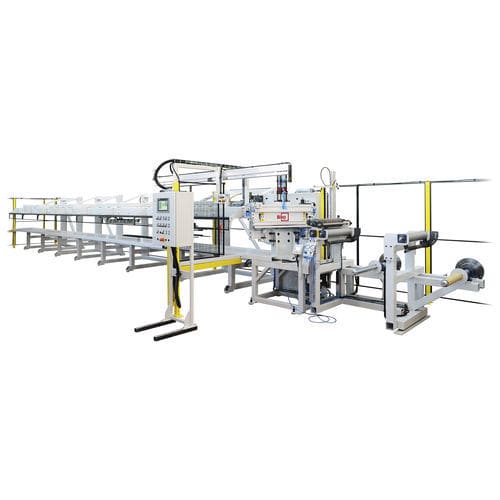

Cut-to-length cutting machine BTA-NB-610

bladefor abrasive clothcoated abrasive

The cut to length machine type BTA-NB is designed to cut narrow belts of abrasive paper and cloth with a maximum width of 350 or 610 mm. BTA-NB is an automatic machine for large series, suitable for converters producing on a large scale. Technical Data - Variable belt length, up to a maximum of 14 m - Device for hydraulic cut - Possibility to perform both straight and wave cut - Cut by means of a steel rule die which cuts on the backing side - Quick change of the bladeholder - Joint angle adjustable between 90° and 45° - The material is guided out of the cutting station by a pneumatic clamp - Pneumatic brake with automatic regulation - Fully automatic working cycle - Easy to operate touchscreen Options - Automatic edge guiding of the roll - Double unwinding station - Single rewinding system - Multiple rewinding system - Automatic edge guiding of the roll Size and Power - Overall machine dimensions: 16.8 x 4.0 x 2.4 m (BTA-NB-610 model, with perimetric protections and 12,000 mm max. belt length) - Approx. weight: 5,000 kg - Installed power: 12 kW - Air consumption: 6,000 Nl/h
