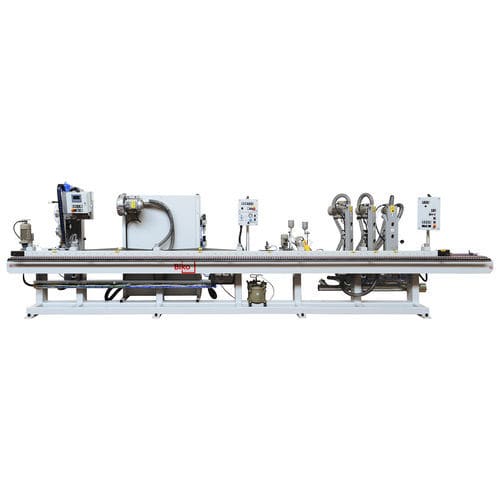

Continuous skiver CSM07-L

for abrasive clothfor abrasive paper

The skiving machine type CSM07-L processes paper and cloth narrow belts. Even though ideal for narrow belts, the machine can be equipped to work with wide belts. The CSM07-L is indicated for converters with medium-high productions. Technical Data - Automatic continuous cycle with a feeding conveyor belts system, at variable speed - Ideal either for overlapped joints or butt joints - Cycle with variable speed up to 12 m/min. (367 FPM) - Standard working direction from left to right - In the standard version, the machine can be provided with a maximum of 9 working units and 2 gluers (roller NGA-15 or spray NSA) Options - Infrared oven, 2400 mm length, with stepless regulation, installed after the gluing unit - Simple inserting table for 1500 mm wide belts - Nylon roller table as support for long and for wide belts on hinges to be swinged up or down Size and Power - Overall machine dimensions: 9.3 x 1.2 x 2.2 m (without Joining Station) 10.3 x 1.2 x 2.2 m (with Joining Station) - Approx. weight: 3,000 kg - Installed power: 20 kW - Air consumption: 5,000 Nl/h (without lap cleaning air blows) 14,000 Nl/h (with lap cleaning air blows)
