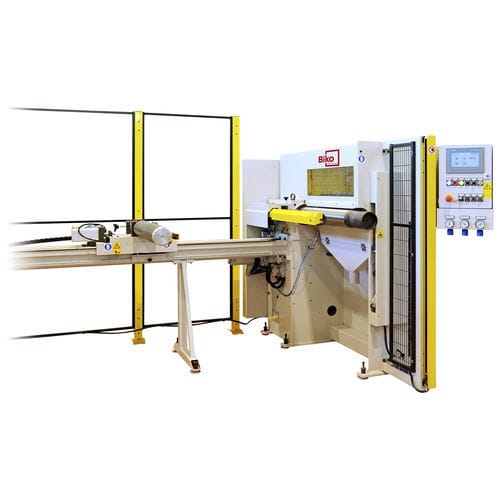

Belt slitter ABS1 series

for abrasive paperfor abrasive clothautomatic

The belt slitter type ABS1 is designed to slit narow belts of abrasive paper or cloth. ABS1 is a machine for medium performance. Technical Data - Maximum width of the belt 450 or 610 mm - Maximum length of the belt 11,500 mm - Variable speed up to 50 m/min - Cut by means of pneumatic pressure on circular knives fixed to individual mechanic knifeholders or fixed knife sets FKS - Manual Insertion and ejection of the belt Knifeholders - Knifeholders with mechanical regulation of positioning and clamping (HL-25/100) - Fixed knife set FKS for cutting width less than 25 mm on 310 mm working width Options - Automatic length counter device - Pneumatic stretcher for short belts - Stretcher for long belts with manual belt guide - Stretcher for long belts with full automatic belt guide and cutting cycle Size and Power (ABS1-450 Model, without Long Belt Stretcher) - Overall machine dimensions: 1.1 x 1.5 x 1.7 m - Approx. weight: 750 kg - Installed power: 3 kW - Air consumption: 1500 Nl/h Size and Power (ABS1-610 Model, with 11,500 mm Long Belt Stretcher) - Overall machine dimensions: 7.0 x 2.0 x 1.7 m - Approx. weight: 1,500 kg - Installed power: 3 kW - Air consumption: 1500 Nl/h
