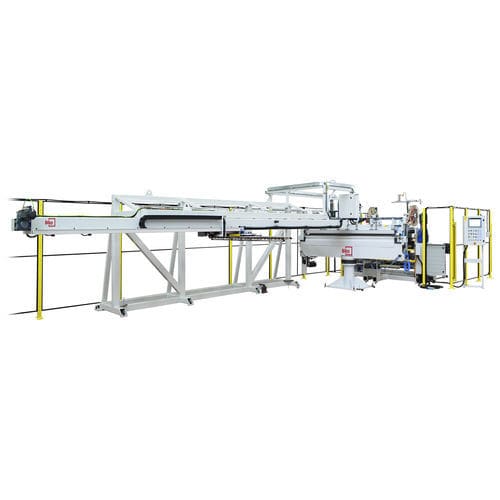

Cut-to-length cutting machine BTA-WB-1650

rotary bladefor abrasive clothcoated abrasive

The cut-to-length machine type BTA-WB is designed to cut wide belts of abrasive paper and cloth having a maximum width of 1650 mm (2050 mm also available). Both straight and wave cut types are possible. BTA-WB is an automatic machine for large series, suitable for converters producing on a large scale. Technical Data - Variable belt length, up to a maximum of 14 m - Device for hydraulic cut - Possibility to perform both straight and wave cut - Cut by means of a steel rule die which cuts on the backing side - Quick change of the bladeholder - Joint angle adjustable between 90° and 45° - The material is guided out of the cutting station by a pneumatic clamp - Pneumatic brake with automatic regulation - Fully automatic working cycle - Easy to operate touchscreen Options - Automatic edge guiding of the roll - Double unwinding station - Single rewinding system - Multiple rewinding system - Joining table - Hydraulic output collecting table - Automatic edge guiding of the roll Size and Power - Overall machine dimensions: 14.0 x 5.3 x 2.6 m (BTA-WB-1650 model, with perimetric protections and 5,500 mm max. belt length) - Approx. weight: 6,000 kg - Installed power: 12 kW - Air consumption: 7,000 Nl/h
