Properties
2-diagonally square and round braids for static applications
Diameter
round, square, rectangular
Dimensions
5 - 60 mm square
up to 110 mm on request
|
|
|
|
|
|
Hollow braidings and accessories
Braidings in different materials; plastic or metal
Applications
- for cable bunching
- as mechanical protection against abrasion
- for electrical installations and highly flexible applications
Properties
- good protection against abrasion
- easy retraction of cables
- variable inner diameter
- partically good screening factor (EMC)
- highly flexible
up to IP 40 to EN/ IEC 60529
Temperature Range
from -55 °C up to +250 °C
Construction and material
- Braiding in different materials: tinned copper wire, galvanized steel wire or plastic (PA 6, polyester)
Accessories
NORRES offers a wide and harmonious range of accessories geared to the needs of the marketplace for its many cable protection conduits and systems, as counter nuts in plastic or metal, plastic enlargements, blind plugs or screwed adapter. Norres can supply not only all standard accessories but also customised solutions. In the unlikely event that you are seeking a product we do not already stock, please do not hesitate to contact us. Our R&D and Engineering departments strive to reconcile users’ expresses needs with the latest technical advances to evolve the optimal solution for every application.
|
|
|
Insulating fiber glass braided sleeving with acrylic coating; temperature CLASS F, 155°C, dielectrical strenght 3kV
|
|
3M™ Nextel™ Braided Ceramic Sleeving is available in diameters to meet the needs of most applications. It is readily cut to length.
Frequently used in electrical thermocouple insulation, our ceramic sleeving offers the same reliability and quality you'll find throughout our entire line of ceramic fabrics. Whether covering hoses and cables in aircraft, or insulating heater wires and protecting fire zone cables, there's a sleeving diameter to meet your needs.
|
|
EMI/RFI protection Aluminium, wire mesch or cloth shielding
size between 9 up to 100 mm of diameter
|
|
|
|
|
|
ZIP-EX-2® Zippered Cable Shielding
ZIP-EX-2 cable shielding provides convenient, EMI and EMP shielding of cable harnesses for computers, communications equipment and other interference-sensitive electronic systems. It can be zipped on and off quickly, before or after the cable is installed.
The shielding medium is Ferrex knitted wire mesh with a protective cover of heavy-duty vinyl, a combination that provides flexibility and durability as well as positive shielding. A brass slide fastener with rugged teeth crimped to a steel cord inside the knitted wire mesh provides continuous positive closure.
SHIELD WRAP™ Wire Mesh Tape
SHIELD WRAP™ wire mesh EMI shielding tape is designed to wrap easily around cables and harnesses, and will reduce corona discharge in addition to providing EMI shielding. It has excellent flexibility and conforms easily to irregular and complex surfaces. SHIELD WRAP is produced as a two-ply, flattened cylinder of varying widths, loop spacings, wire sizes and metals. Standard mesh is either monel or Ferrex (tin-plated, copper-clad steel).
CHO-JAC® Flat Cable Shielding
CHO-JAC® shielding is a high quality, flat cable jacket designed to attenuate RF signals and bring digital electronic devices into EMC compliance at an attractive cost. This lightweight, flexible jacket is designed with a 360-degree aluminum or copper shield bonded with a metal overlap to a polyester layer. Metal-to-metal contact is established as the jacket wrap is completed. This design provides the maximum EMI shielding when properly sealed and terminated. Integral wires simplify folding and termination, and provide crack resistance. CHO-JAC shielding passes the flame retardancy requirements of UL specification 94V-0.
CHO-SHRINK® Heat Shrinkable Plastic Tubing
CHO-SHRINK® tubing is a heat shrinkable polyolefin tubing, which provides effective EMI shielding for cables, connectors and cable/connector terminations. CHO-SHRINK tubing offers significant weight savings over conventional metal braid shield. Chomerics' unique conductive coating is applied to the surface of the tubing and remains flexible, uniform and intact even after maximum shrinking. CHO-SHRINK tubing is available in standard thin-wall sleeves, molded boots, transitions and breakouts.
CHO-SORB® Ferrite EMI Attenuators
Cost-effective CHO-SORB® EMI ferrites reduce conducted emissions on signal lines and power cables without affecting data transmission. Chomerics' CHO-SORB ferrite attenuators allow desired signals to pass through cables or circuits while absorbing extraneous and unwanted energy. Low frequency and DC see only the conductor and are unimpeded. CHO-SORB attenuators reduce EMI for compliance with FCC, EC, VDE, and CISPR 22 limits. They install easily with no grounding required. Many configurations are available from Chomerics and through our authorized distributors.
|
|
|

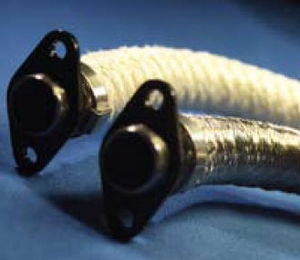

SCS-THT Fireproof sleeving Class C 450°C
|
|
Our insulation sleevings are either braided or knitted, like our sealing ropes and tapes. They may be coated with synthetic rubbers or resins allowing the design to be varied to meet end-user repuirements. Our thermal insulations are characterised by having excellent insulating properties as well as a high degree of flexibility.
Decades of experience in many manufacturing processes acquired in the production of industrial textiles have resulted in a wide range of thermal insulations which can be reinforced with glass yarns or stainless steel wire, and, where desirable, be coated with silicone rubber to give enhanced mechanical and dimensional stability as well as excellent sealing properties.
|
|
Glass fibre braided sleeving with polyurethane varnish; Class F
155°C
|
|

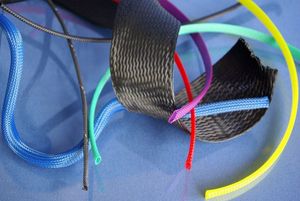

Polyester braided sleeving 22/100. Temperature class F. Halogen free, self-extinguishible, excellent resistance to abrasion, expansion rate: from 1 to 2.
Applications: cables bundles, protection of cables against abrasion, cutting, repeated bending...
|
|
|
Glass fibre braided sleeving coated with silicone rubber
|
|
Single-Ply, Silicone-Coated Woven Fiberglass Hose
Applications of Flexfab's single ply silicone coated woven fiberglass hose...
Recommended for low pressure handling of higher and lower temperature air, dust or fumes
Ideal for heating applications where minimum weight is required, and where air flow and friction requirements are not severe
Good for heater applications
Not recommended for handling liquids or abrasive materials.
Construction of Flexfab's single ply silicone coated woven fiberglass hose...
Flexible. Chemically treated, helically wound, bronze plated, spring steel wire reinforcement. Silicone-coated woven fiberglass fabric covering. Continuous filament fiberglass cord between coils. Heat-vulcanized for maximum rubber-to-wire bond. Lightweight, non-kinking, easy installation. Meets commercial low temperature flexibility. Temperature range -65°F to +450°F (-54°C to +232°C).
|
|
|
ShieldZip™ is a flexible, cost effective EMI/EMP shielding jacket for easy installation, routing around corners or retro fitting of cable bundles or harness applications. ShieldZip™ combines the shielding effectiveness of multi layered knitted wire mesh, heavy duty brass zipper and a protective durable jacket. Heavy duty brass zipper is permanently crimped to a mesh cord and attached to a mesh jacket which creates a continuous positive closure. Vinyl jackets are optional. ShieldZip™ is available in diameters ranging from one inch to six inches and up to fifty foot continuous lengths. Finished ends are terminated and supplied ready for installation. Unfinished ends are left open for you to terminate to your specific requirement. Self Termination Kits are available.
|
|
|
|
|
|
Copper braiding on tube former
Material: Tinned copper round braiding on PVC tube former
Properties: Highly flexible hollow wire braiding conduit, easy pulling in of cables due to the tube former
Application: CEM-screening an shielding braiding
Temperature range: -75°C / +150°C
Braided cable sleeving polyamide
Material: Polyamide PA 6.6, strand 0,25mm
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and many other chemicals
Approved: Smoke and toxic test acc. to NF F16-101 classing F2, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -55°C / +125°C
Colour: Black
Braided cable sleeving polyester
Material: Polyester PET
Fire classification: V0 acc. to UL 94
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, chrome 6, nickel, lead, PVC, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and fatty matters
Approved: Smoke and toxic test acc. to NF F16-101 classing F1, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -50°C / +150°C
Colour: Black matt
|
|
These divisible connectors are suitable for repairs or where cable protection systems have to be installed after wiring.
The divisible connectors in connection with the divisible conduits and divisible lock nuts are responsible for the highest possible mounting flexibility.
|
|
|

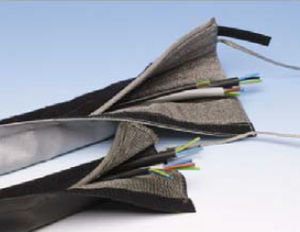

Tubing protection with closing system for mecanical, EMI/RFi or thermal protection Diameter between 9 and 100 mm
|
|
|
ZIPPER TECHNIK : a full range of tubing protection to resist at abrasion, EMI perturbation or thermal ambiance. ZIPPER product are made with a track system...
|
|
|
3M’s cold-shrink products are pre-stretched on a removable core so they will shrink to fit to ensure a permanent, durable environmental seal and protection. This helps you reduce the time, labor and cost involved in a variety of electrical cable splicing applications. These kits are applicable for indoor and outdoor installations, including direct burial, aerial and submersible applications. Each kit requires 1 roll of 3M™ Armorcast™ Material. The 3M™ Splice Kit 8420 Series is an EPDM rubber splice for 0-1000 volts. The 3M™ Splice Kit Series 8440 includes insulating sleeves made from a specially formulated high-temperature silicone rubber with an operating temperature range from -67° F (-55° C) to 500° F (260° C).
|
|
Optical Fiber Flexible Guide System
Features
●Fully modular system giving complete fiber
management and protection at PCB level applications
●For use with 250 and 900 micron fiber
●Fibercan enter and exit at any point, without risk of fibersnagging or kinking
●Angled and straight lugs located along the top of the guide preventing fiberfrom springing out
●‘Snake’the guide through and over components, where space is limited
●Flat and raised supports available, other support post heights and panel thicknesses available by special order
|
|
Richco's Slit Harness Wrap (SHR) is the answer to cable management problems in industrial applications, where the jumble of cables can be unsightly and dangerous.
The SHR is a revolutionary system that enables cabling to be tidied and managed in seconds via the use of a special applicator tool. The SHR can be removed at any time and is totally reusable.
|
|
Cable/hose sleeves are a simple, reliable and cost-effective method for protecting dynamic cables and hoses, either in a carrier or by themselves. Sleeves are available with zippers or hook and loop fasteners for accessibility, in a wide variety of materials for diverse application requirements. Gortrac cable/hose sleeves offer:
|
|
| ... products without technical information |
| |
EMI/RFI protection Aluminium, wire mesch or cloth shielding
size between 9 up to 100 mm of diameter
|
|
|
|
|
|
ZIP-EX-2® Zippered Cable Shielding
ZIP-EX-2 cable shielding provides convenient, EMI and EMP shielding of cable harnesses for computers, communications equipment and other interference-sensitive electronic systems. It can be zipped on and off quickly, before or after the cable is installed.
The shielding medium is Ferrex knitted wire mesh with a protective cover of heavy-duty vinyl, a combination that provides flexibility and durability as well as positive shielding. A brass slide fastener with rugged teeth crimped to a steel cord inside the knitted wire mesh provides continuous positive closure.
SHIELD WRAP™ Wire Mesh Tape
SHIELD WRAP™ wire mesh EMI shielding tape is designed to wrap easily around cables and harnesses, and will reduce corona discharge in addition to providing EMI shielding. It has excellent flexibility and conforms easily to irregular and complex surfaces. SHIELD WRAP is produced as a two-ply, flattened cylinder of varying widths, loop spacings, wire sizes and metals. Standard mesh is either monel or Ferrex (tin-plated, copper-clad steel).
CHO-JAC® Flat Cable Shielding
CHO-JAC® shielding is a high quality, flat cable jacket designed to attenuate RF signals and bring digital electronic devices into EMC compliance at an attractive cost. This lightweight, flexible jacket is designed with a 360-degree aluminum or copper shield bonded with a metal overlap to a polyester layer. Metal-to-metal contact is established as the jacket wrap is completed. This design provides the maximum EMI shielding when properly sealed and terminated. Integral wires simplify folding and termination, and provide crack resistance. CHO-JAC shielding passes the flame retardancy requirements of UL specification 94V-0.
CHO-SHRINK® Heat Shrinkable Plastic Tubing
CHO-SHRINK® tubing is a heat shrinkable polyolefin tubing, which provides effective EMI shielding for cables, connectors and cable/connector terminations. CHO-SHRINK tubing offers significant weight savings over conventional metal braid shield. Chomerics' unique conductive coating is applied to the surface of the tubing and remains flexible, uniform and intact even after maximum shrinking. CHO-SHRINK tubing is available in standard thin-wall sleeves, molded boots, transitions and breakouts.
CHO-SORB® Ferrite EMI Attenuators
Cost-effective CHO-SORB® EMI ferrites reduce conducted emissions on signal lines and power cables without affecting data transmission. Chomerics' CHO-SORB ferrite attenuators allow desired signals to pass through cables or circuits while absorbing extraneous and unwanted energy. Low frequency and DC see only the conductor and are unimpeded. CHO-SORB attenuators reduce EMI for compliance with FCC, EC, VDE, and CISPR 22 limits. They install easily with no grounding required. Many configurations are available from Chomerics and through our authorized distributors.
|
|
|
ShieldZip™ is a flexible, cost effective EMI/EMP shielding jacket for easy installation, routing around corners or retro fitting of cable bundles or harness applications. ShieldZip™ combines the shielding effectiveness of multi layered knitted wire mesh, heavy duty brass zipper and a protective durable jacket. Heavy duty brass zipper is permanently crimped to a mesh cord and attached to a mesh jacket which creates a continuous positive closure. Vinyl jackets are optional. ShieldZip™ is available in diameters ranging from one inch to six inches and up to fifty foot continuous lengths. Finished ends are terminated and supplied ready for installation. Unfinished ends are left open for you to terminate to your specific requirement. Self Termination Kits are available.
|
|
A large and full range of solutions with track system,
to resolve EMI/RFI problems.
"Shielded" ZIPPER-TECHNIK is a quick, effective and economical way to solve many interference problems which require shielding to reduce the effects of EMI/RFI especially in wire and cable applications.
Most standard ZIPPER-TECHNIK Jacket materials can be combined with a choice of shielding materials (laminated or sewn inside), to provide a versatile shielding system to meet or exceed almost any requirement.
All ZIPPER-TECHNIK shielding includes a patented, 360° shielding and grounding construction.
|
|
|
|
