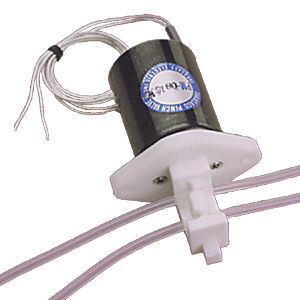

The operating principle of these solenoid valve is basically different from the one of the other series. The pinching device is moved by a solenoid operator and cuts off the fluid by pinching or releasing a tubing in soft silicon (or other soft material) . The fluid can flow in either direction with a high rate of flow, without turbulences and without dead spaces.
Thus, pinch solenoid valves can control all the fluids that are compatible with the tubing material, protecting them from all contamination, including temperature changes. These characteristics, plus the fact that the tubings are extremely easy to install and replace, make this solenoid valve suitable for a wide variety of applications particularly the control of physiological, medical and food fluids.
Also for these series 2/2 or 3/2 normally closed or open are available plus miniaturised version and latching models. All models are silenced.
|
|
|

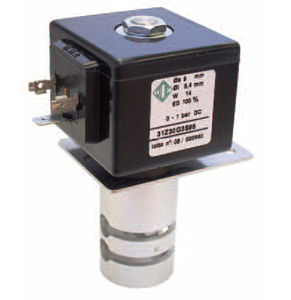

The new ODE pinch solenoid valves range for fluid compatible with the tube material preservs them from each contamination, including temperature changes. The new ODE pinch range is suitable for a wide variety of applications, particularly the control of physiological, medical and food fluids.
|
|
Solenoid pinch valves use a current passing through a solenoid to induce a magnetic field, which then supplies force to a magnetic plunger. Pinching functionality is achieved by integrating an actuator and a pinching mechanism into a single unit. The pinching mechanism captures the tubing and provides a fixed pinching surface; the actuator generates forces that act on a sliding plunger to pinch the tubing. A spring typically supplies the force in one direction, while the actuator produces an opposing force.
Common applications for solenoid pinch valves are in the medical, pharmaceutical, and laboratory industries.
|
|
This valve types shut of the flow of any medium without turbolences and don't build any death spaces where the medium can stagnate. This system allows a bi-directional flow. The opening and closing action is a made by coil operated pinching device with squeezes a soft hose. This feature enables the use of this valve in steril physiologic and laimentary applications. The maximum operating pressure (about 1 bar) is related to hose material and thickness.
- Valve normally closed (NC).
- Pitching strenth: 180g - 1400g
- Flow medium: Gaseous and liquid media
|
|
|
|
