Direct-acting solenoid valve Power Pinch Valve
2-wayNONC

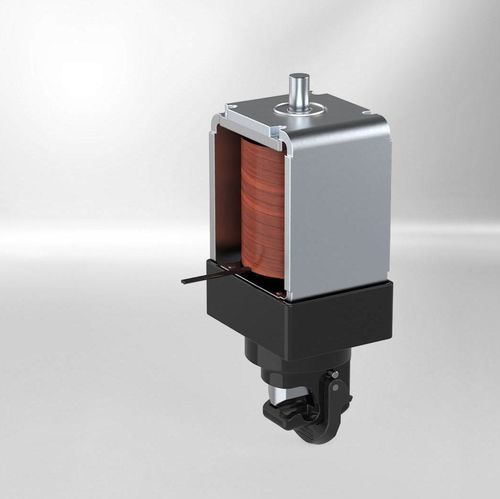

Direct-acting solenoid valve - Power Pinch Valve - Kendrion - 2-way / NO / NC
Direct-acting solenoid valve - Power Pinch Valve - Kendrion - 2-way / NO / NC
Direct-acting solenoid valve - Power Pinch Valve - Kendrion - 2-way / NO / NC - image - 2
Direct-acting solenoid valve - Power Pinch Valve - Kendrion - 2-way / NO / NC - image - 3
Direct-acting solenoid valve - Power Pinch Valve - Kendrion - 2-way / NO / NC - image - 4
Add to favorites
Compare this product
Go to the Kendrion website for more information

Characteristics

Control
direct-acting
Ports/positions
2-way
Function
NO, NC
Medium
for chemical products, for water, for food
Body
compact
Other characteristics
with detector, with integrated positioner, spring-return, electromagnetic, pinch, bidirectional
DN

Max.: 8 mm
(0.315 in)

Min.: 4 mm
(0.157 in)

Voltage

Max.: 24 V

Min.: 24 V

Temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Pressure

Max.: 2 bar
(29 psi)

Min.: 0 bar
(0 psi)

Description

Overview
The Power Pinch Valve is an electromagnetically operated pinch valve for silicone and PVC tubes. Thanks to its high clamping force, it is especially suitable for applications where liquids need to be controlled through tubing without the medium coming into direct contact with the valve mechanism.

Advantages
  • High clamping force of up to 42 N
  • Suitable for silicone and PVC tubes
  • Compact design
  • Media-separated valve function through tube clamping
  • Two function versions: Normally Open and Normally Closed
  • Suitable for harder tubes with 4 to 8 mm outer diameter

Application Areas
  • Fluid technology
  • Tube-based dosing systems
  • Applications with silicone or PVC tubes
  • Medical and laboratory technology
  • Analysis devices
  • Systems where the medium must remain separated from the valve mechanism

Key Technical Data
  • Model: Power Pinch Valve
  • Product type: electromagnetic pinch valve
  • Versions: NO / NC
  • Clamping force: up to 42 N
  • Tube material: silicone and PVC
  • Tube outer diameter: 4 to 8 mm
  • Dimensions: 50 × 64 × 135 mm
  • Actuator: HD8 linear solenoid
